Tractor · 1920Unverified

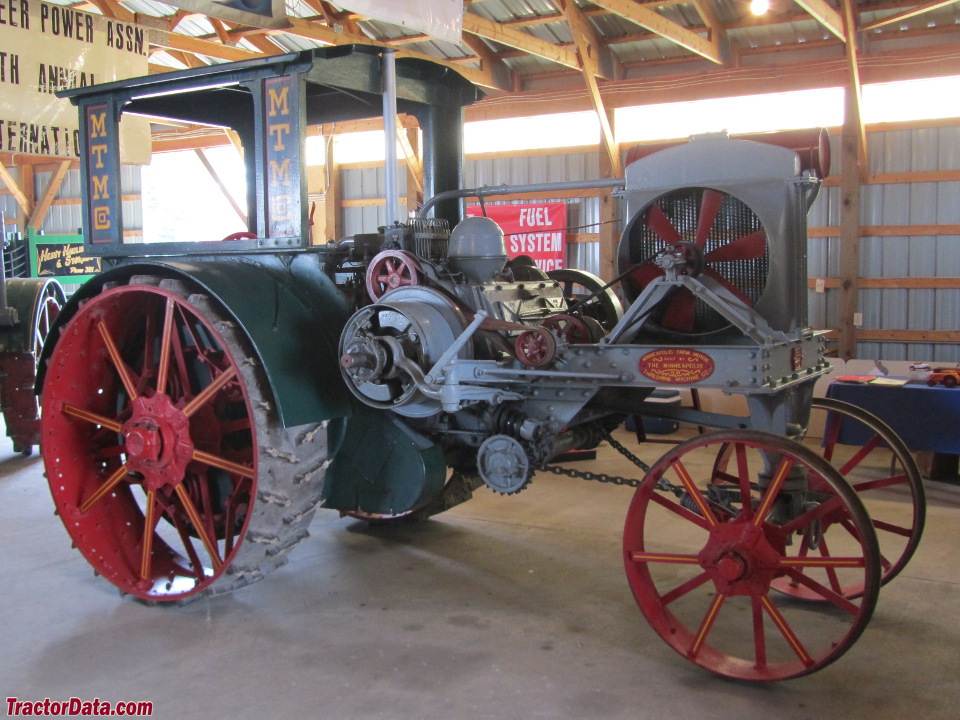

Minneapolis 22-44
Minneapolis 22-44 — Standard-tread tractor · 22 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
22 hp
Max power
24.8 kW
Weight
5443 kg
Hover a source tag to verify
Overview
ManufacturerMinneapolis (a part of Minneapolis Threshing Machine Company)Reference
Standard-tread tractorReference
Built in Hopkins, Minnesota, USAReference
Two-wheel driveReference
Final drivesspur gearReference
Manual steeringReference
Steel canopy.Reference
Engine
Minneapolis Threshing Machine 13.0L 4-cyl keroseneReference
Fuel tank113.6 LReference
Aux. fuel34.1 LReference
Drawbar (claimed)16.4 kWReference
Belt (claimed)32.8 kWReference
Plows4-6 (14-inch)Reference
Drawbar (tested)24.8 kWReference
Belt (tested)34.3 kWReference
Minneapolis Threshing MachineReference
keroseneReference
4-cylinderReference
liquid-cooledReference
Displacement13.0 LReference
Bore/Stroke152 x 178 mmReference
Rated RPM700Reference
Starter typehand crankReference
Coolant capacity53.0 LReference
Belt power (max)34.3 kWReference
Max power24.8 kWReference
Transmission
2-speed gearReference
TypegearReference
Gears2 forward and 1 reverseReference
Dimensions
Wheelbase278 cmReference
Weight5443 kgReference
Front tire38x8Reference
Rear tire66x20Reference
Ag front38x8 (steel)Reference
Ag rear66x20 (steel)Reference
Length424 cmReference
Width243 cmReference
Height279 cmReference
Rear axle87 mmReference
22-44 Serial Number Location
Serial number plate on the front frame of the tractor.Reference
Capacities
Diameter50 cmReference
Width25 cmReference
RPM700Reference
Test results
Kerosene 2-speed 2WDMay 18 - June 3, 1920Link: Nebraska Tractor Test 14 fileReference
Belt fuel use (max)25.4 l/hourReference
Drawbar performanceReference
Max pull2315 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
