Tractor · 1918Unverified

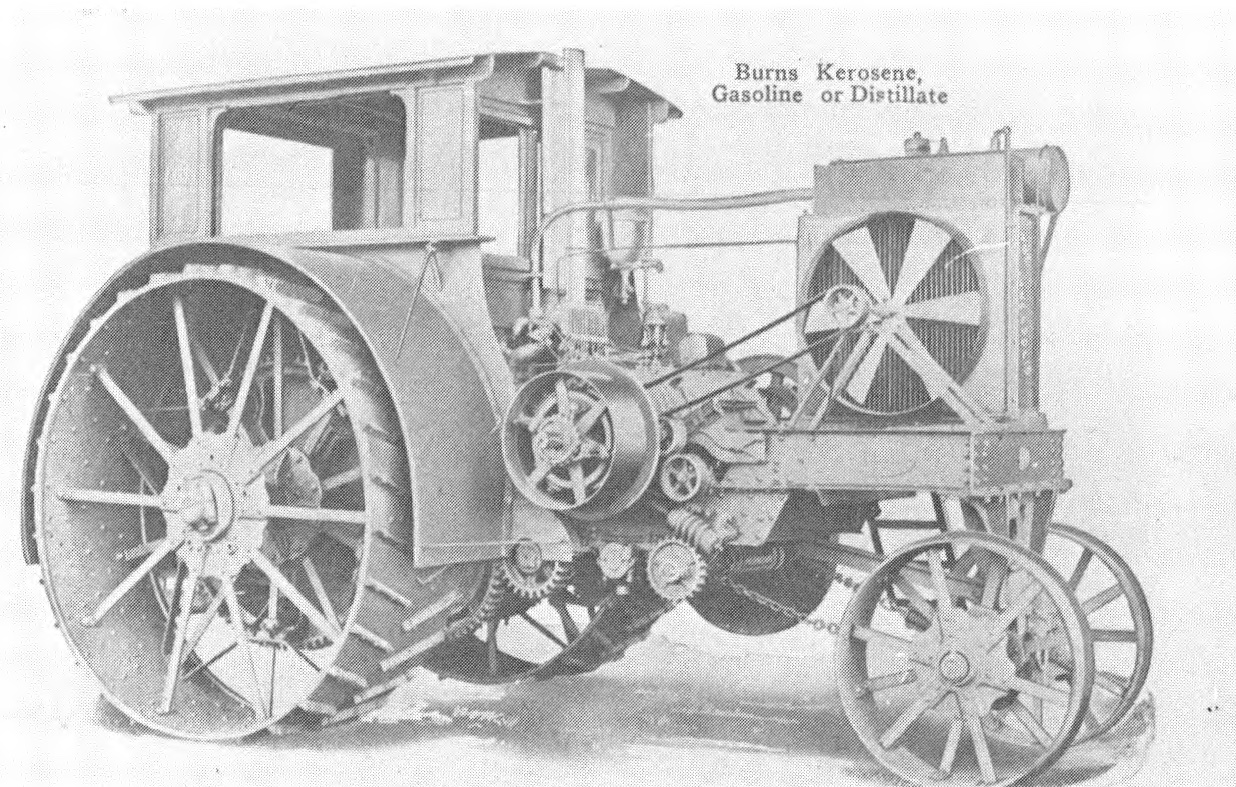

Minneapolis 40-80
Minneapolis 40-80 — Standard-tread tractor · 40 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
40 hp
Weight
10206 kg
Hover a source tag to verify
Overview
ManufacturerMinneapolis (a part of Minneapolis Threshing Machine Company)Reference
Standard-tread tractorReference
Built in Hopkins, Minnesota, USAReference
Two-wheel driveReference
Manual steeringReference
Steel canopy.Reference
Engine
Minneapolis Threshing Machine 24.4L 4-cyl keroseneReference
Fuel tank302.8 LReference
Drawbar (claimed)29.8 kWReference
Belt (claimed)59.7 kWReference
Plows8-10 (14-inch)Reference
Minneapolis Threshing MachineReference
keroseneReference
4-cylinderReference
liquid-cooledReference
Displacement24.4 LReference
Bore/Stroke184 x 229 mmReference
Rated RPM500Reference
Starter typehand crankReference
Transmission
2-speed gearReference
TypegearReference
Gears2 forward and 1 reverseReference
Dimensions
Wheelbase345 cmReference
Weight10206 kgReference
Front tire40x14Reference
Rear tire85x30Reference
Ag front40x14 (steel)Reference
Ag rear85x30 (steel)Reference
Length523 cmReference
Width274 cmReference
Height309 cmReference
Capacities
Diameter60 cmReference
Width26 cmReference
RPM500Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
