Tractor · 1956Unverified

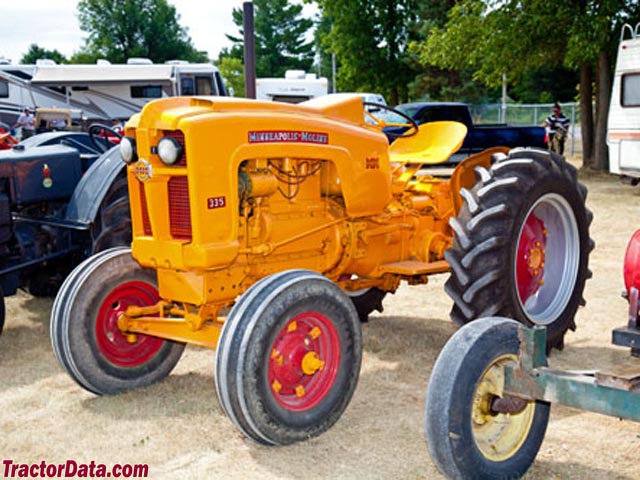

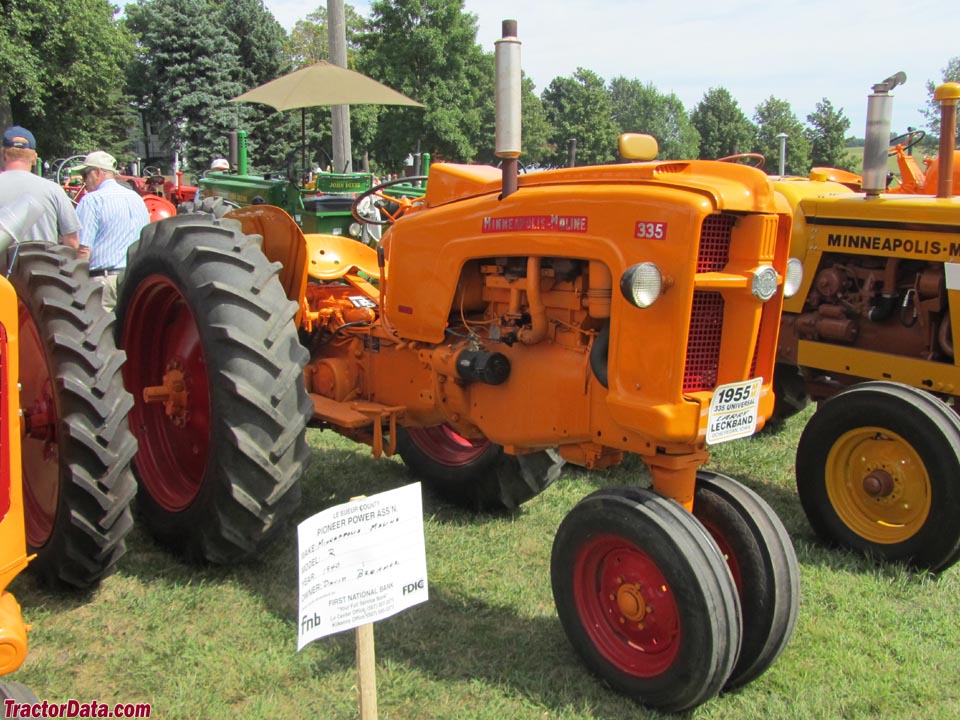

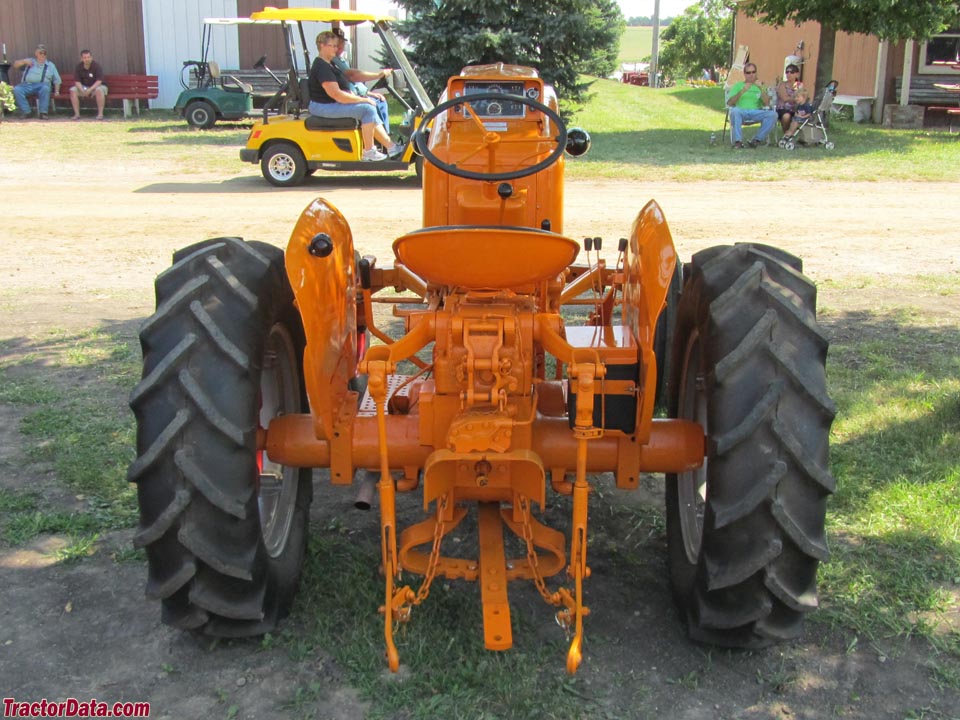

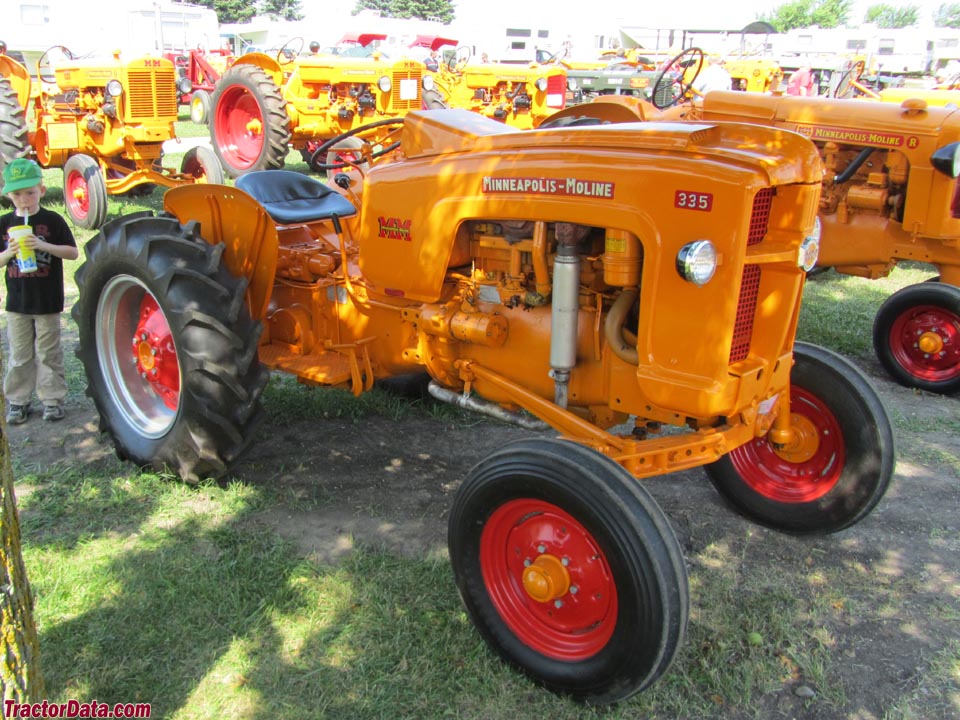

Minneapolis-Moline 335
Minneapolis-Moline 335 — Row-Crop tractor · 35 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
35 hp
Max power
22.3 kW
Weight
3070 to 3268 pounds
Hover a source tag to verify
Overview
ManufacturerMinneapolis-MolineReference
Row-Crop tractorReference
Built in Minneapolis, Minnesota, USAReference
Total built2,500 (utility)Reference
Total built334 (industrial)Reference
Total built750 (Universal)Reference
Original price was $2,500 in 1961Reference
Two-wheel driveReference
Final drivesbull gearReference
Power steeringReference
Mechanical dry disc brakesReference
Open operator station.Reference
Variants
335farm tractorReference
335Iindustrial tractorReference
Engine
Minneapolis-Moline 2.7L 4-cyl gasolineReference
Fuel tank53.0 LReference
Engine29.8 kWReference
Drawbar (claimed)22.4 kWReference
Drawbar (tested)22.3 kWReference
Belt (tested)25.0 kWReference
Minneapolis-Moline 165AReference
gasolineReference
4-cylinderReference
liquid-cooled vertical I-headReference
Displacement2.7 LReference
Bore/Stroke92 x 102 mmReference
Power29.8 kWReference
Air cleaneroil bathReference
Compression7.35:1Reference
Rated RPM1600Reference
Firing order1-3-4-2Reference
Starter volts6Reference
Coolant capacity10.4 LReference
Belt power (max)25.0 kWReference
Max power22.3 kWReference
Transmission
5-speed unsynchronized gearReference
10-speed two-speed power shiftReference
Typeunsynchronized gearReference
Gears5 forward and 1 reverseReference
Clutch254mm dry discReference
TransmissionAmpli-TorcReference
Typetwo-speed power shiftReference
Gears10 forward and 2 reverseReference
Clutchdry discReference
PTO & Hydraulics
PTO (claimed)26.1 kWReference
Typeopen centerReference
Pump flow37.9 lpmReference
Steering flow9.5 lpmReference
Rear TypeIReference
Rear PTOindependentReference
Clutchwet discReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase198 cmReference
Wheelbase200 cmReference
Weight3070 to 3268 poundsReference
Front tire5.50-16Reference
Rear tire12.4-36Reference
Ag front5.50-16Reference
Ag rear12.4-36Reference
Ag front7.50-10Reference
Ag rear13.9-36Reference
Length307 cmReference
Length288 cmReference
Width149 cmReference
Height171 cmReference
Height148 cmReference
Clearance (rear axle)58 cmReference
Front tread121 to 193 cmReference
Rear tread121 to 193 cmReference
Shipping1482 kgReference
Shipping1392 kgReference
Ballasted2764 kgReference
335 Serial Number Location
Right side of tractor frame.Reference
335 Serial Numbers
1956A1P 10400001 (utility)Reference
1957A1P 10400102 (utility)Reference
1958A1P 10402088 (utility)Reference
1959A1P 10402337 (utility)Reference
1960A1P 10402490 (utility)Reference
1961A1P 10402490 (utility)Reference
1957A1W 11300001 (industrial)Reference
1958A1W 11300441 (industrial)Reference
1959A1W 11300522 (industrial)Reference
1960A1W 11300597 (industrial)Reference
1957A1 11600001 (universal)Reference
1958A1 11600302 (universal)Reference
1959A1 11600306 (universal)Reference
FAQ: How to read a serial number table.Reference
Capacities
Diameter21 cmReference
Width16 cmReference
RPM1516Reference
Speed1012.85 meters/minReference
Electrical
Charging systemgeneratorReference
Battery volts6Reference
Test results
Gasoline 10-speed 2WDJune 7 - 17, 1957Link: Nebraska Tractor Test 624 fileReference
Belt fuel use (max)12.5 l/hourReference
Drawbar performanceReference
Gear 2 used for power test.Reference
Max pull1807 kgReference
Gear 1-AT used for pull test.Reference
Speeds
With 12.4-36 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
