Tractor · 1956Unverified

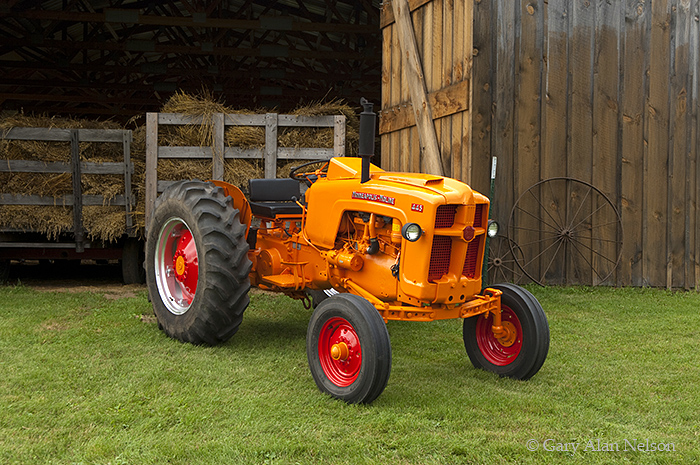

Minneapolis-Moline 445 Universal
Minneapolis-Moline 445 Universal — Row-Crop tractor · 51 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
51 hp
Max power
28.7 kW
Weight
3700 to 4871 pounds
Hover a source tag to verify
Overview
ManufacturerMinneapolis-MolineReference
Row-Crop tractorReference
Built in Minneapolis, Minnesota, USAReference
Original price was $3075 in 1959Reference
Two-wheel driveReference
Final drivesbull gearReference
SteeringmanualReference
SteeringpowerReference
Disc brakesReference
Open operator station.Reference
Variants
445Utricycle-frontReference
445Eadjustable-frontReference
445Nsingle-frontReference
445 UtilityutilityReference
Engine
Minneapolis-Moline 3.4L 4-cyl gasolineReference
Minneapolis-Moline 3.4L 4-cyl dieselReference
Minneapolis-Moline 3.6L 4-cyl gasolineReference
Fuel tank64.3 LReference
Aux. fuel3.3 LReference
Engine38.0 kWReference
Drawbar (claimed)29.8 kWReference
Drawbar (tested)28.7 kWReference
Belt (tested)31.3 kWReference
Minneapolis-Moline 206H-4Reference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement3.4 LReference
Bore/Stroke92 x 127 mmReference
Power38.0 kWReference
Fuel systemcarburetorReference
Air cleaneroil bathReference
Compression7.3:1Reference
Rated RPM1550Reference
Firing order1-3-4-2Reference
Starter volts12Reference
Oil capacity6.6 LReference
Coolant capacity12.8 LReference
Minneapolis-Moline D206-4Reference
dieselReference
Minneapolis-Moline 220A-4Reference
The 220 ci engine was only used in the military version of the 445Reference
Displacement3.6 LReference
Bore/Stroke95 x 127 mmReference
Belt power (max)31.3 kWReference
Max power28.7 kWReference
Transmission
10-speed two-speed power shiftReference
TransmissionAmpli-TorcReference
Typetwo-speed power shiftReference
Gears10 forward and 2 reverseReference
Clutch279.4mm dry discReference
Oil capacity37.9 LReference
PTO & Hydraulics
Rear TypeIIReference
Rear PTOindependentReference
Clutchwet discReference
Rear PTO Type540Reference
Mid PTOoptionalReference
Mid PTO Type980Reference
Dimensions
Wheelbase219 cmReference
Weight3700 to 4871 poundsReference
Front tire5.50-16Reference
Rear tire11-38Reference
445U Ag front5.50-16Reference
445E Ag front5.50-16Reference
445N Ag front7.50-10Reference
Ag rear11-38Reference
Ag rear12-38Reference
Length331 cmReference
Width208 cmReference
Height (steering wheel)177 cmReference
Clearance (front axle)57 cmReference
Clearance (rear axle)64 cmReference
445U Front tread20/33 cmReference
445E Front tread142 to 213 cmReference
Rear tread142 to 223 cmReference
Rear tread142 to 243 cmReference
445U Shipping1678 kgReference
445N Shipping1701 kgReference
445E Shipping1769 kgReference
Operating2209 kgReference
Ballasted3576 kgReference
445 Serial Numbers
195610100001 (Universal)Reference
195710102855 (Universal)Reference
195810104126 (Universal)Reference
195910104805 (Universal)Reference
195610200001 (utility)Reference
195710201446 (utility)Reference
195810202102 (utility)Reference
195910202243 (utility)Reference
195611100001 (industrial)Reference
195711100076 (industrial)Reference
195811100389 (industrial)Reference
195815200001 (Universal diesel)Reference
195815300001 (industrial diesel)Reference
195915400001 (utility diesel)Reference
195815700001 (military)Reference
FAQ: How to read a serial number table.Reference
Capacities
Diameter21 cmReference
Width16 cmReference
RPM1470Reference
Speed981.46 meters/minReference
Electrical
GroundpositiveReference
Charging systemgeneratorReference
Battery volts12Reference
Test results
Gasoline 10-speed 2WD UniversalJune 23 - 30, 1956Link: Nebraska Tractor Test 578 fileReference
Belt fuel use (max)15.1 l/hourReference
Drawbar performanceReference
Gear 2-D used for power test.Reference
Max pull2373 kgReference
Gear 1-AT used for pull test.Reference
Speeds
With 11-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
