Tractor · 1969Unverified

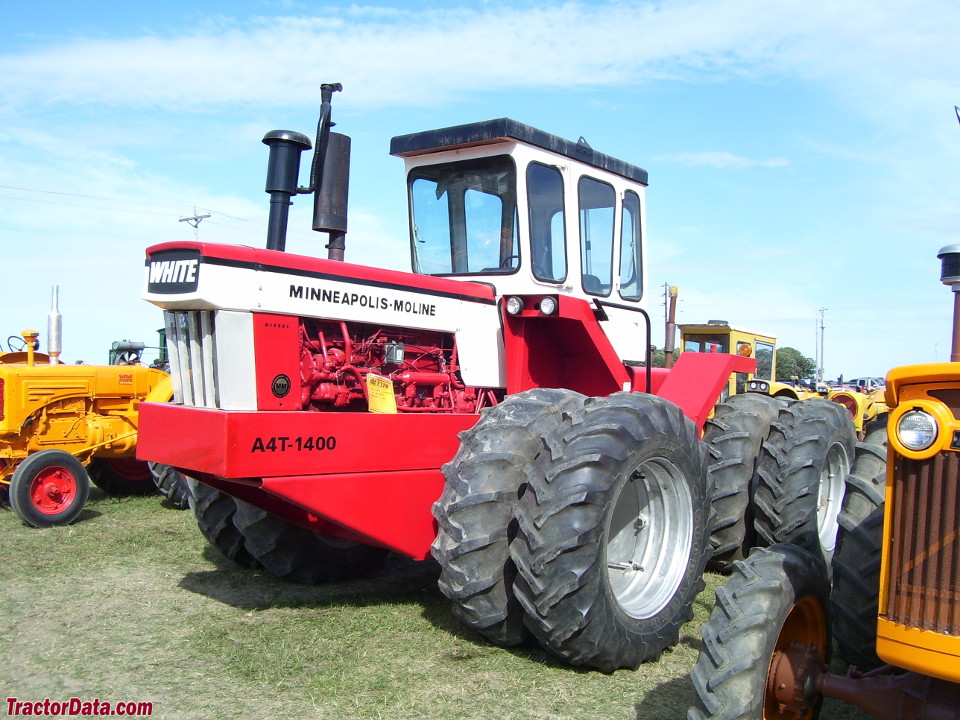

Minneapolis-Moline A4T-1400
Minneapolis-Moline A4T-1400 — Four-wheel Drive (4WD) tractor · 139 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
139 hp
Weight
7847 kg
Hover a source tag to verify
Overview
ManufacturerMinneapolis-Moline (a part of White)Reference
Four-wheel Drive (4WD) tractorReference
Built in Minneapolis, Minnesota, USAReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Hydraulic dry disc brakesReference
Open operator station. Cab optional with heat.Reference
Variants
A4T-1400similar Minneapolis-Moline modelReference
2455similar Oliver modelReference
Engine
Minneapolis-Moline 8.3L 6-cyl dieselReference
Engine114.8 kWReference
Minneapolis-MolineReference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement8.3 LReference
Bore/Stroke117 x 127 mmReference
Power103.7 kWReference
Rated RPM1800Reference
Starter volts12Reference
Oil capacity12.3 LReference
Coolant capacity31.2 LReference
turbocharged dieselReference
Power114.8 kWReference
Transmission
10-speedReference
Gears10 forward and 2 reverseReference
Clutch355.6mm dry discReference
Five gears (1-5) in two ranges (low/high).Reference
PTO & Hydraulics
PTO (claimed)103.7 kWReference
Hydraulic system30.3 LReference
Typeopen centerReference
Typeclosed centerReference
Capacity30.3 LReference
Pressure120.7 barReference
Pressure137.9 barReference
Valves2 or 3Reference
Pump flow64.3 lpmReference
Pump flow75.7 lpmReference
Rear TypeIII/IIReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Capacities
Fuel378.5 LReference
Dimensions
Wheelbase304 cmReference
Weight7847 kgReference
Front tire18.4-34Reference
Rear tire18.4-34Reference
Ag front18.4-34Reference
Ag rear18.4-34Reference
Ag front23.1-30Reference
Ag front24.5-32Reference
Ag front23.1-34Reference
Ag front18.4-38Reference
Ag rear23.1-30Reference
Ag rear24.5-32Reference
Ag rear23.1-34Reference
Ag rear18.4-38Reference
Length594 cmReference
Width243 cmReference
Height (steering wheel)251 cmReference
Height (exhaust)294 cmReference
Rear axle82 mmReference
A4T-1400 Serial Numbers
Location:Serial number plate on the tractor's transmission case, left side.Reference
196943-900-001Reference
197043-900-103Reference
Final43-900-247Reference
FAQ: How to read a serial number table.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
