Tractor · 1970Unverified

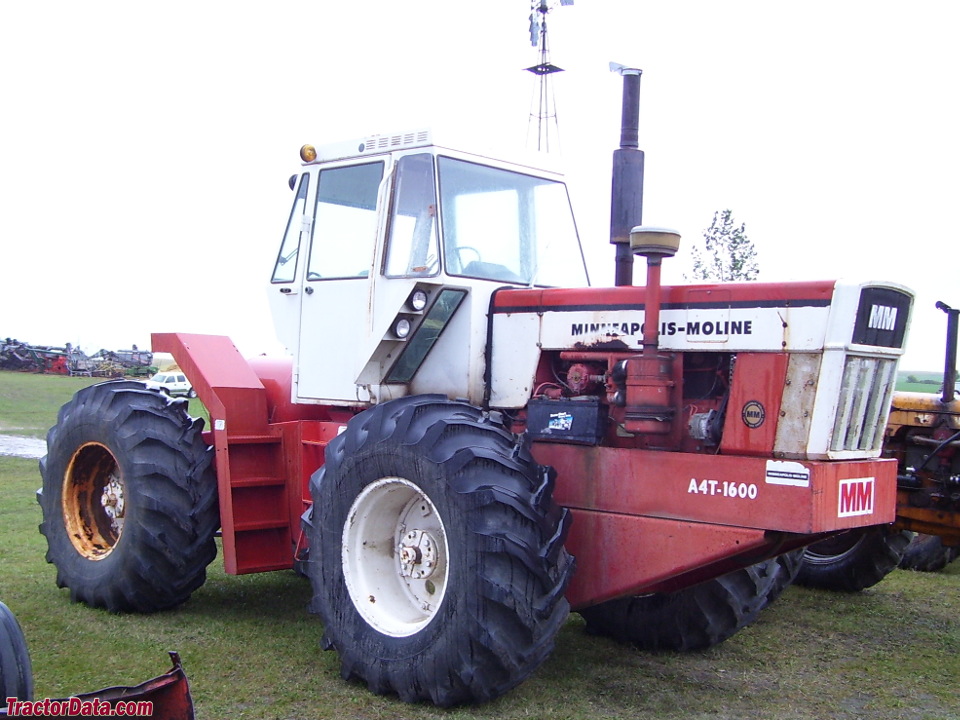

Minneapolis-Moline A4T-1600
Minneapolis-Moline A4T-1600 — Four-wheel Drive (4WD) tractor · 143 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
143 hp
Max power
91.9 kW
Weight
9003 kg
Hover a source tag to verify
Overview
ManufacturerMinneapolis-Moline (a part of White)Reference
Four-wheel Drive (4WD) tractorReference
Built in Minneapolis, Minnesota, USAReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Hydraulic dry disc brakesReference
Open operator station. Cab optional with heat.Reference
Variants
A4T-1600similar Minneapolis-Moline modelReference
2655similar Oliver modelReference
Engine
Minneapolis-Moline 9.6L 6-cyl dieselReference
Minneapolis-Moline 8.3L 6-cyl LP gasReference
Engine126.0 kWReference
Drawbar (claimed)91.7 kWReference
Drawbar (tested)91.9 kWReference
Minneapolis-MolineReference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement9.6 LReference
Bore/Stroke121 x 140 mmReference
Power126.0 kWReference
Air cleanerdual paper elementsReference
Compression15.3:1Reference
Rated RPM2200Reference
Starter volts12Reference
Oil capacity13.2 LReference
Coolant capacity31.2 LReference
LP gasReference
Displacement8.3 LReference
Bore/Stroke117 x 127 mmReference
Oil capacity12.3 LReference
Coolant capacity28.4 LReference
Power at rated engine speed106.8 kWReference
Max power91.9 kWReference
Transmission
10-speedReference
Gears10 forward and 2 reverseReference
Clutch355.6mm dry discReference
Five gears (1-5) in two ranges (low/high).Reference
PTO & Hydraulics
PTO (claimed)106.6 kWReference
PTO (tested)106.8 kWReference
Hydraulic system30.3 LReference
Typeopen centerReference
Typeclosed centerReference
Capacity30.3 LReference
Pressure120.7 barReference
Pressure137.9 barReference
Valves2 or 3Reference
Pump flow64.3 lpmReference
Pump flow75.7 lpmReference
Rear TypeIII/IIReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Engine RPM1000@1800Reference
Power at rated PTO speed93.5 kWReference
Capacities
Diesel Fuel378.5 LReference
LP-gas Fuel333.1 LReference
Dimensions
Wheelbase304 cmReference
Weight9003 kgReference
Front tire18.4-34Reference
Rear tire18.4-34Reference
Ag front18.4-34Reference
Ag rear18.4-34Reference
Ag front23.1-30Reference
Ag front24.5-32Reference
Ag front23.1-34Reference
Ag front18.4-38Reference
Ag rear23.1-30Reference
Ag rear24.5-32Reference
Ag rear23.1-34Reference
Ag rear18.4-38Reference
Length594 cmReference
Width243 cmReference
Height (steering wheel)251 cmReference
Height (exhaust)294 cmReference
Operating weight9003 kgReference
Rear axle82 mmReference
A4T-1600 Serial Numbers
197045600001Reference
197145600188Reference
197245600701Reference
Final45601190Reference
197045700001 (LP-gas)Reference
197145700127 (LP-gas)Reference
197245700198 (LP-gas)Reference
Final45700257 (LP-gas)Reference
FAQ: How to read a serial number table.Reference
Test results
Diesel 10-speed 4WDMay 24 - June 4, 1971Link: Nebraska Tractor Test 1070 fileReference
PTO performanceReference
Fuel use38.2 l/hourReference
Fuel use33.7 l/hourReference
Drawbar performanceReference
Fuel use37.1 l/hourReference
Gear 3L used for power test.Reference
Max pull8271 kgReference
Gear 1L used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
