Tractor · 1965Unverified

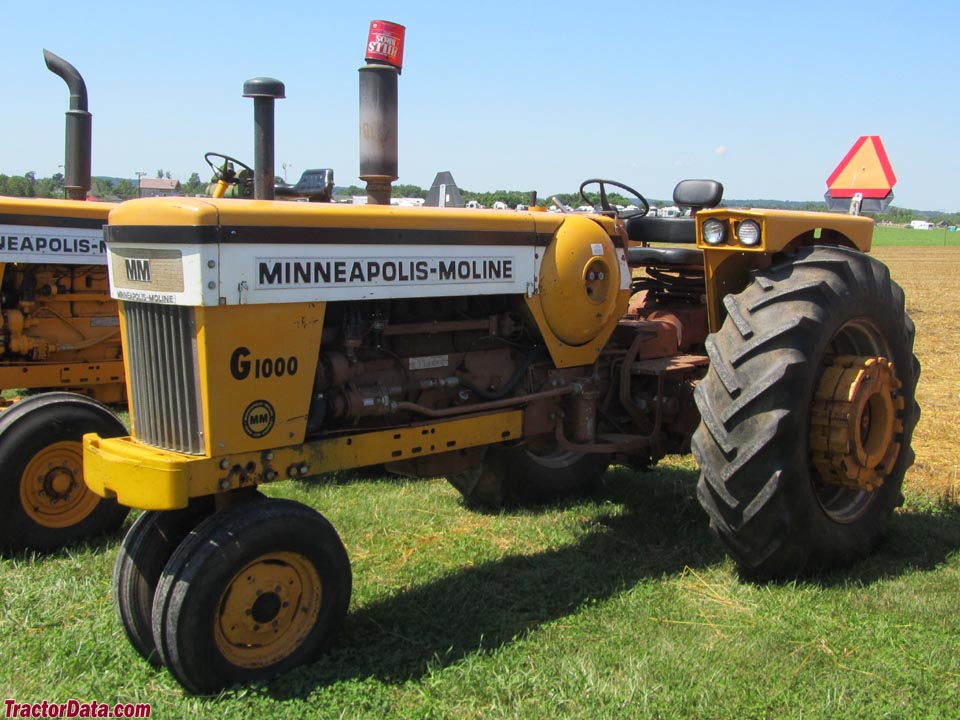

Minneapolis-Moline G1000

Name: Minneapolis-Moline G1000
Brand: Minneapolis-Moline

Minneapolis-Moline G1000 · 111 hp. Reference specifications; pending source verification.

The Minneapolis-Moline G1000 is a tractor with an output of approximately 111 horsepower, placing it in the middle range of its class. In production from 1965 to 1969, this model features a 6-cylinder diesel liquid-cooled engine coupled with four-wheel drive and a powershift transmission. The tractor's operating weight is listed as 10700 to 12100 pounds. It is suitable for operations spanning 200 to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

111 hp

Max power

75.3 kW

Weight

10700 to 12100 pounds

Catalogue coverage

Variants represented

Richest spec table

128 rows

Recorded power

111 hp

Transmissions

10-speed partial power shift

Production years

1965-1969

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerMinneapolis-MolineReference

Built in Minneapolis, Minnesota, USAReference

Total built7,397Reference

Original price was $8,200 in 1969Reference

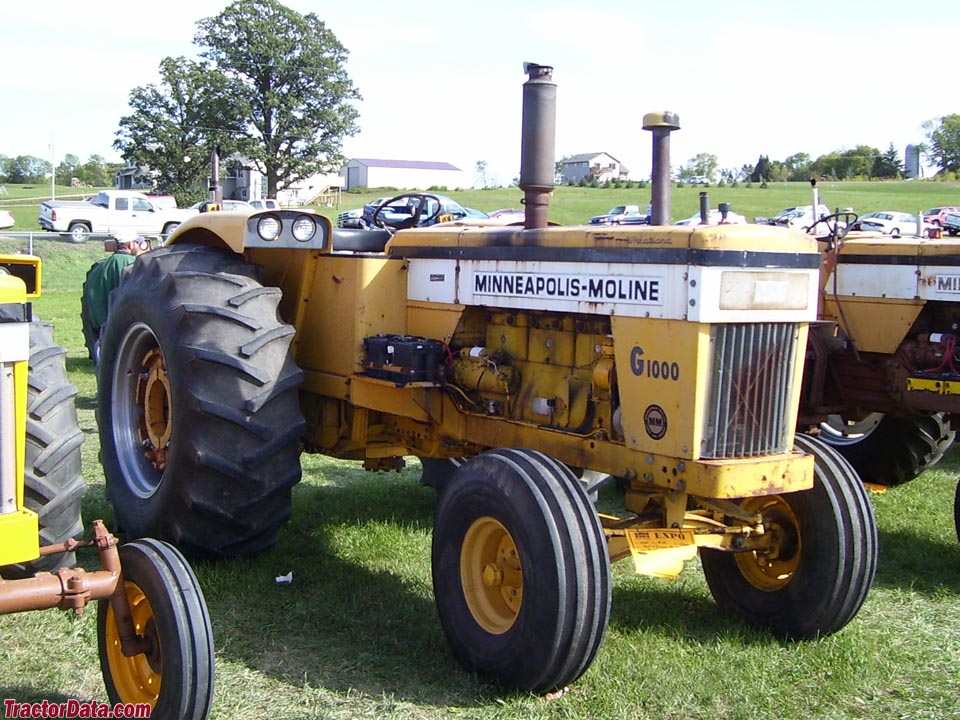

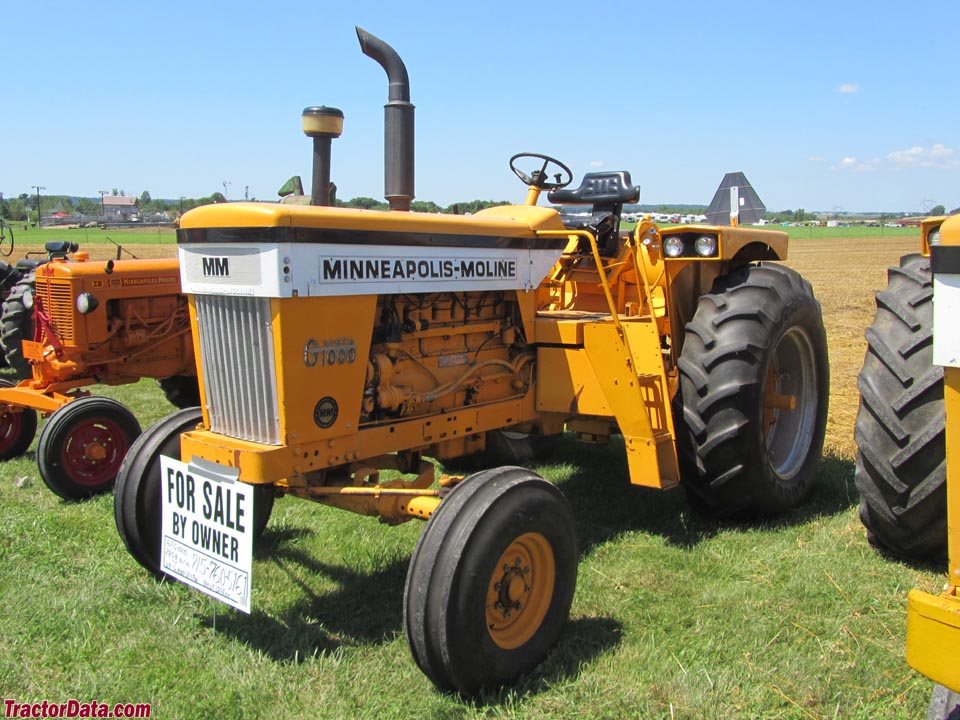

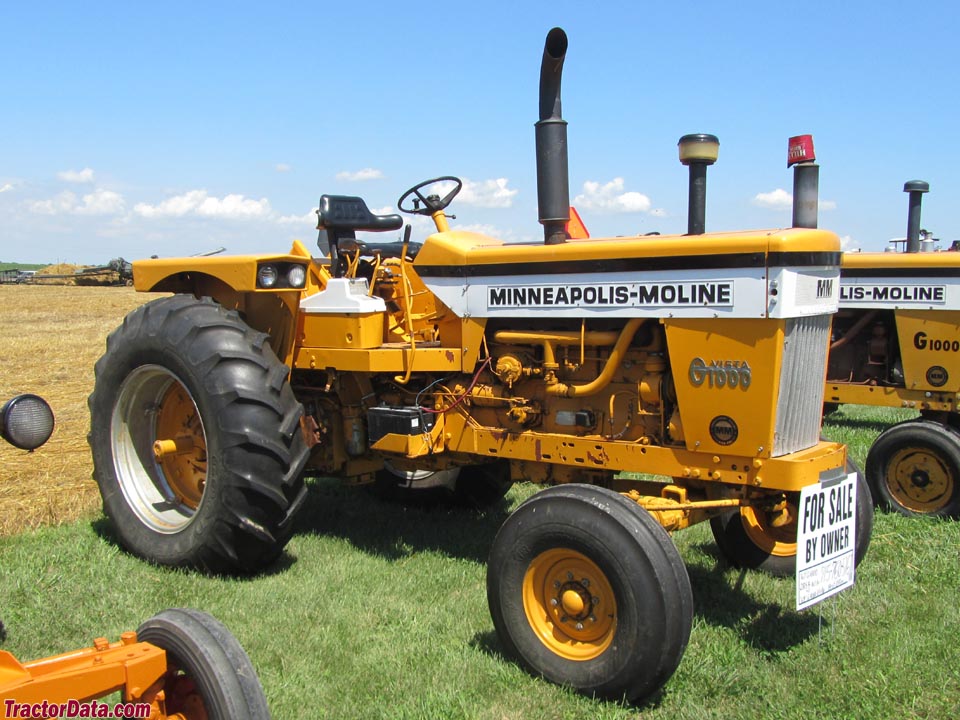

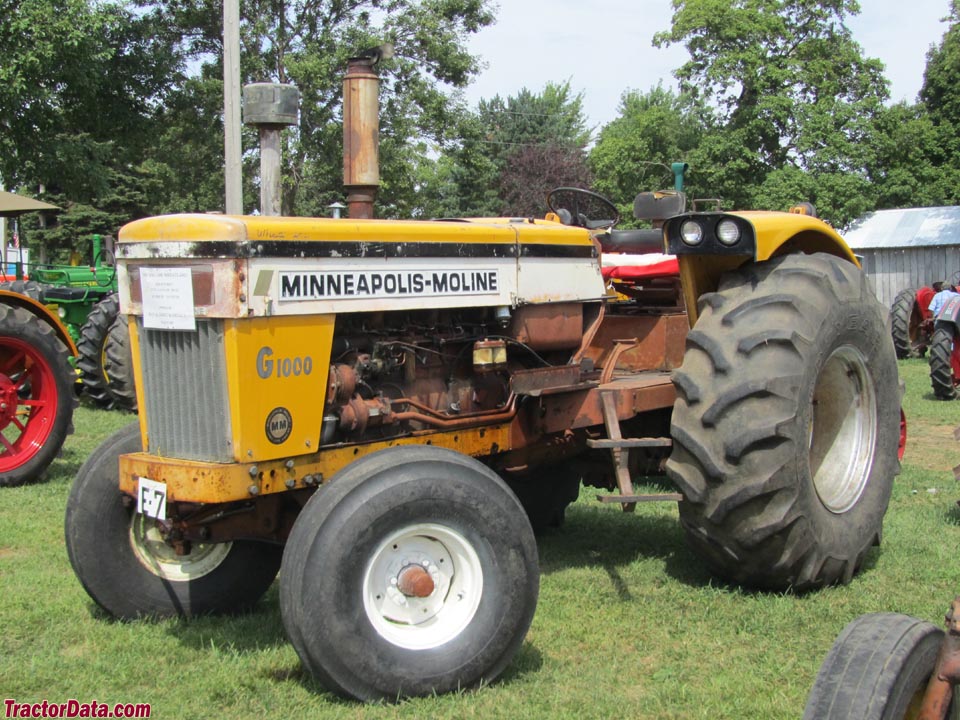

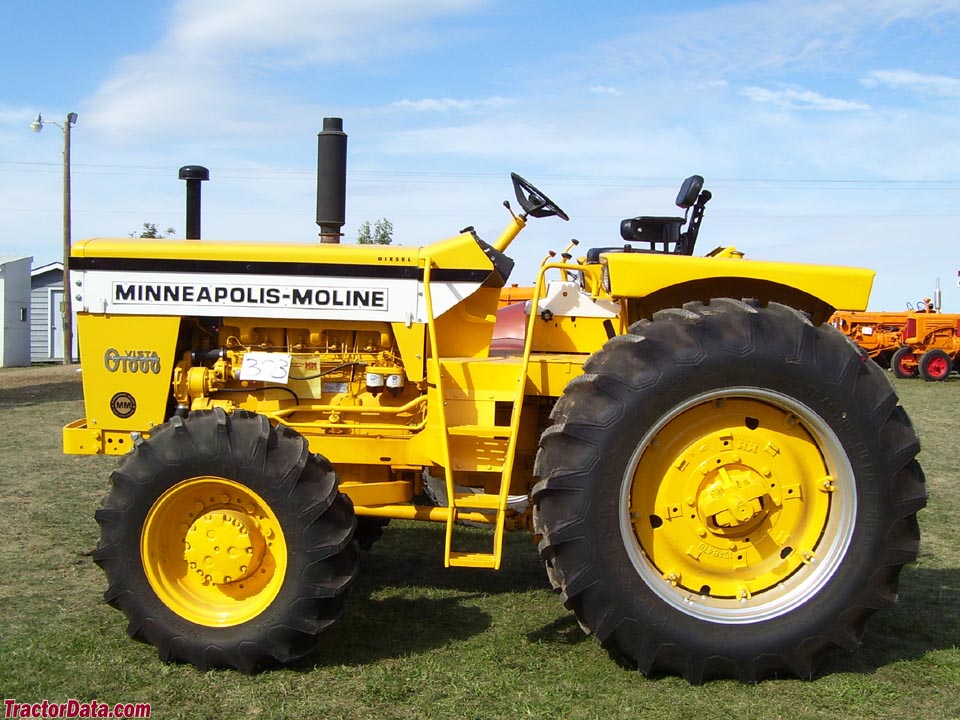

The Minneapolis-Moline G-1000 was available in three types: row-crop, wheatland, and the Vista-- which featured a high operator's platform that provided a wide field of view.Reference

Two- or four-wheel driveReference

Final drivesbull gearReference

Steeringhydraulic powerReference

Differential hydraulic dry discs brakesReference

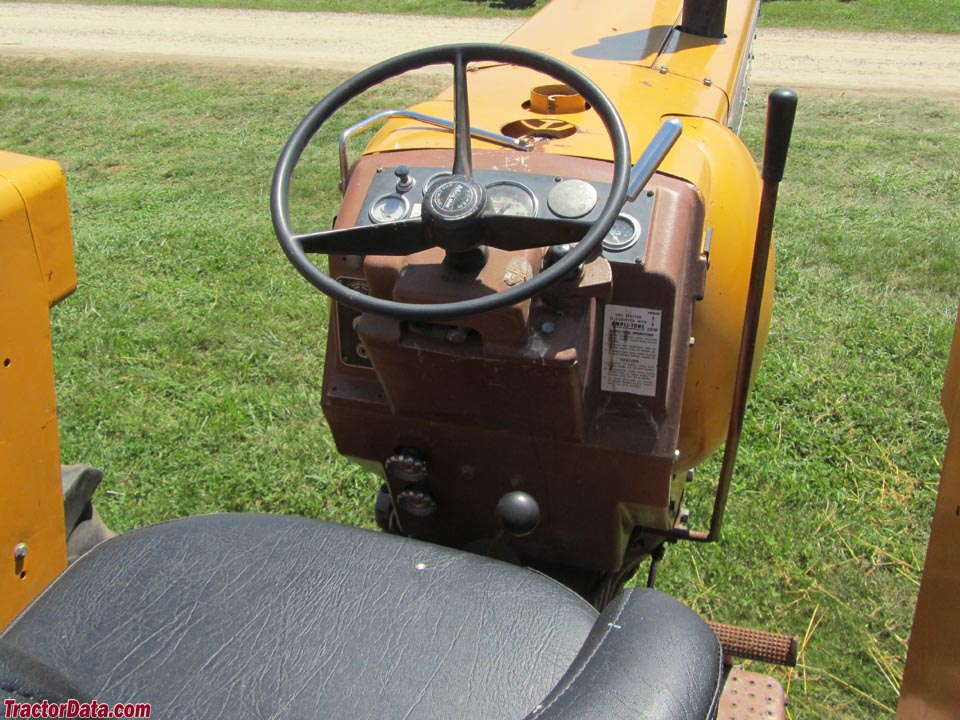

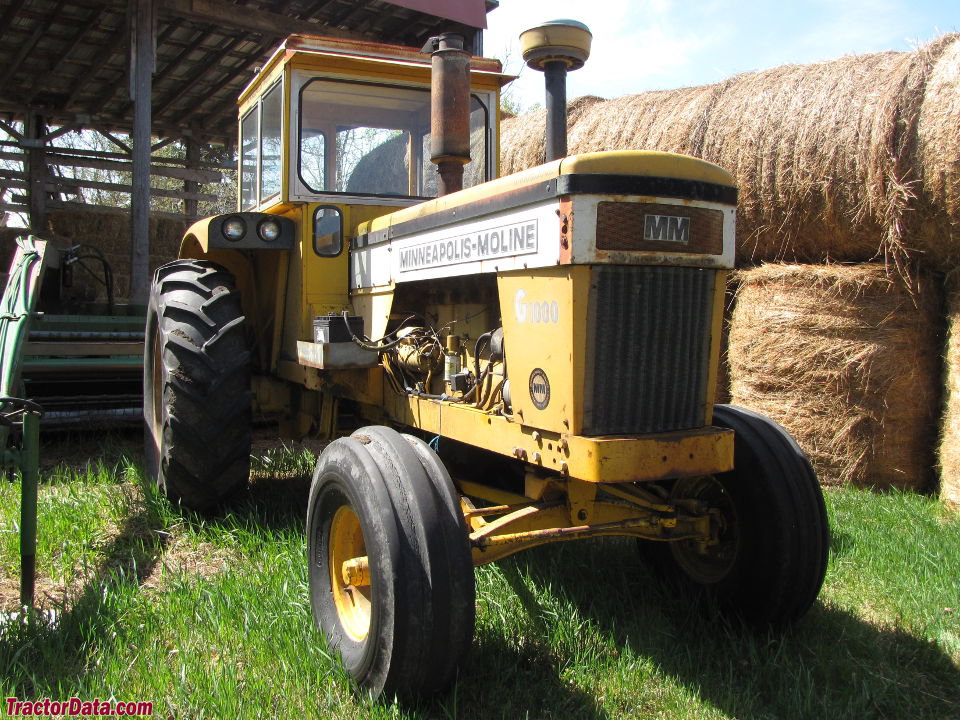

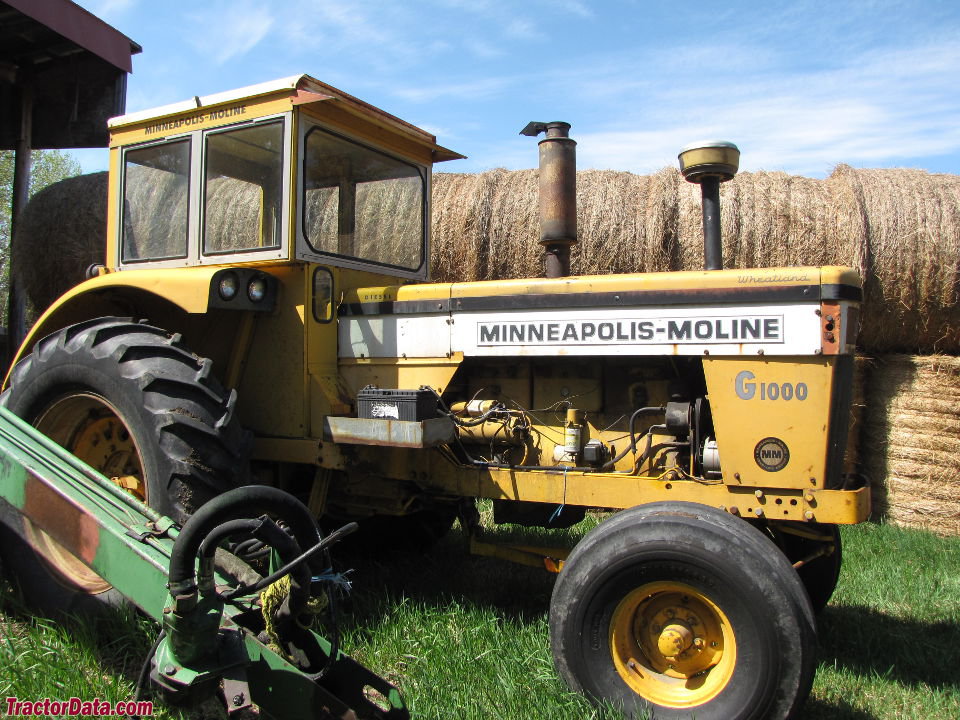

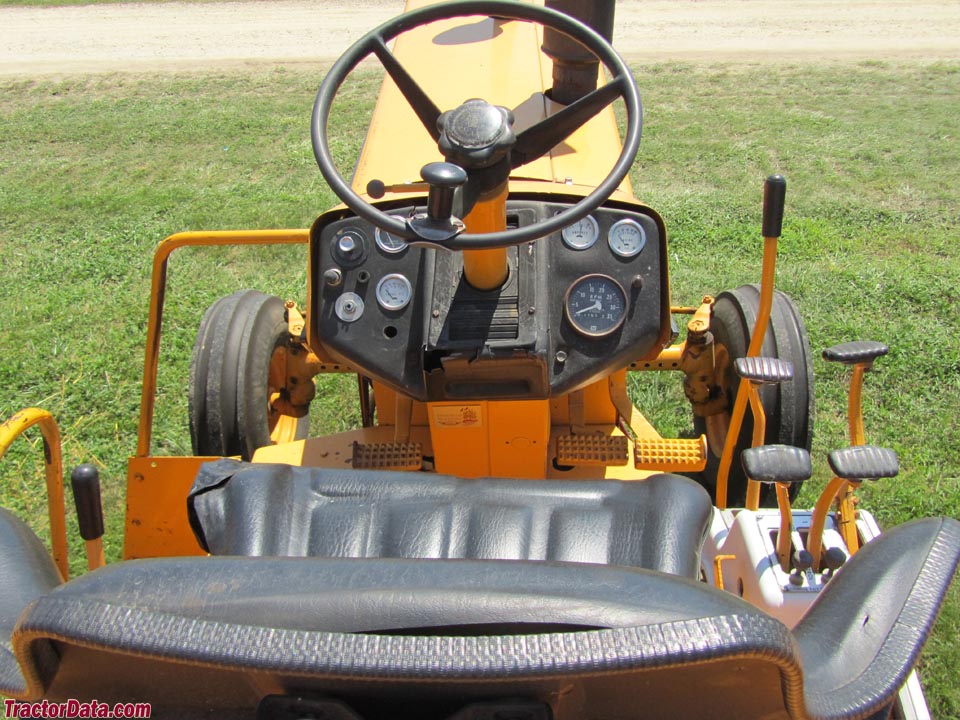

Open operator station. Cab optional with A/C.Reference

Engine

Minneapolis-Moline 8.3L 6-cyl dieselReference

Minneapolis-Moline 8.3L 6-cyl LP gasReference

Minneapolis-Moline 8.3L 6-cyl gasolineReference

Fuel tank151.4 LReference

Fuel tank212.0 LReference

Engine74.6 kWReference

Drawbar (tested)75.3 kWReference

Minneapolis-MolineReference

dieselReference

6-cylinderReference

liquid-cooledReference

Displacement8.3 LReference

Bore/Stroke117 x 127 mmReference

Power74.6 kWReference

Compression14.3:1Reference

Rated RPM1800Reference

Firing order1-5-3-6-2-4Reference

Starter volts12Reference

Oil capacity12.3 LReference

Coolant capacity31.2 LReference

Minneapolis-Moline 504A-6Reference

LP gasReference

Air cleanerdryReference

Compression9.1:1Reference

Coolant capacity28.4 LReference

gasolineReference

Power at rated engine speed82.6 kWReference

Max power75.3 kWReference

Power at rated engine speed82.6 kWReference

Max power72.6 kWReference

Power at rated engine speed82.8 kWReference

Max power71.9 kWReference

Power at rated engine speed82.7 kWReference

Max power72.0 kWReference

Transmission

10-speed partial power shiftReference

TransmissionMinneapolis-Moline Ampli-TorcReference

Typepartial power shiftReference

Gears10 forward and 2 reverseReference

Clutch335.6mm hydraulic dry discReference

Oil capacity75.7 LReference

PTO & Hydraulics

PTO (claimed)82.8 kWReference

PTO (tested)82.8 kWReference

Typeopen centerReference

Valves2 or 3Reference

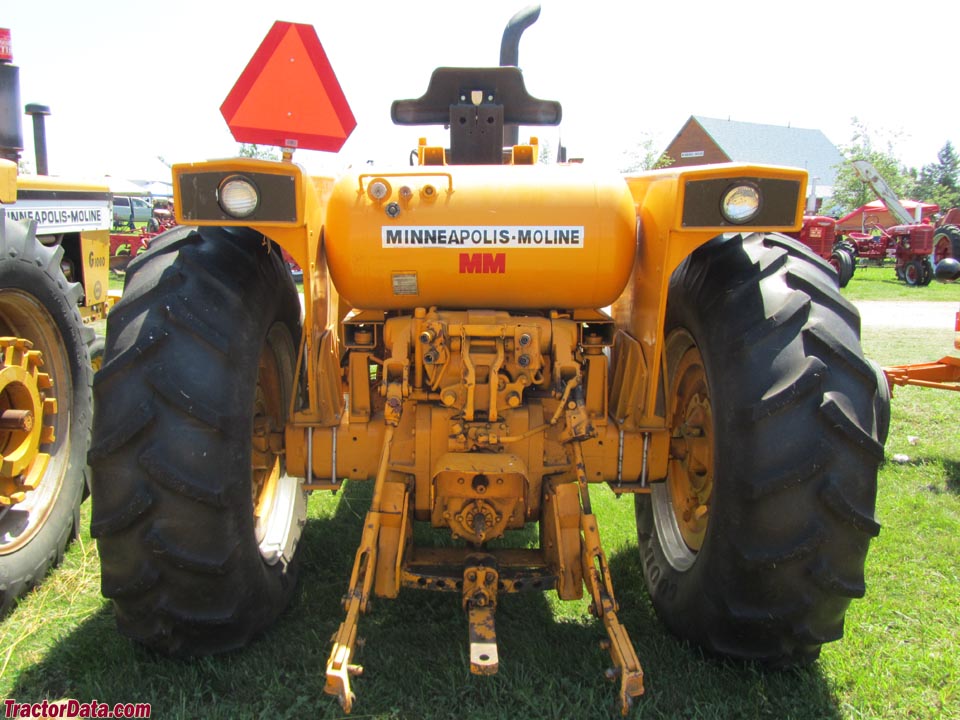

Rear TypeIIReference

Rear PTOindependentReference

Clutchwet discReference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@1800Reference

Engine RPM1000@1800Reference

Dimensions

Wheelbase261 cmReference

Weight10700 to 12100 poundsReference

Front tire10.00-16Reference

Rear tire23.1-30Reference

Ag front10.00-16Reference

Ag rear23.1-30Reference

Length418 cmReference

Width239 cmReference

Height (steering wheel)213 cmReference

Height (hood)190 cmReference

Rear axle85 mmReference

Front tread142 to 203 cmReference

Front tread137 cmReference

Rear tread162 to 243 cmReference

Operating4853 kgReference

Operating5488 kgReference

Ballasted8330 kgReference

G1000 Serial Number Location

Side of transmission caseReference

G1000 Serial Numbers

196530600001 (diesel row crop)Reference

196630600501 (diesel row crop)Reference

196730601126 (diesel row crop)Reference

196830601286 (diesel row crop)Reference

196834600016 (Vista diesel)Reference

196934600736 (Vista diesel)Reference

197034601186 (Vista diesel)Reference

196632700001 (wheatland diesel)Reference

196732700734 (wheatland diesel)Reference

196832701451 (wheatland diesel)Reference

197032701775 (wheatland diesel)Reference

196530500001 (gas row crop)Reference

196630500451 (gas row crop)Reference

196730500927 (gas row crop)Reference

196830501042 (gas row crop)Reference

196734500011 (Vista gas)Reference

196632600001 (wheatland gas)Reference

196732600516 (wheatland gas)Reference

196832600651 (wheatland gas)Reference

197034500791 (wheatland gas)Reference

196734500011 (Vista LP)Reference

196834500291 (Vista LP)Reference

196934500391 (Vista LP)Reference

197034500791 (Vista LP)Reference

FAQ: How to read a serial number table.Reference

Links

G-1000 Series: article at TractorShop.comReference

Test results

NTTL 953: diesel 10-speed 2WDReference

NTTL 954: LP gas 10-speed 2WDReference

NTTL 974: diesel 10-speed 2WD VistaReference

NTTL 975: LP gas 10-speed 2WD VistaReference

Diesel 10-speed 2WDNovember 4 - 15, 1966Link: Nebraska Tractor Test 953 fileReference

PTO performanceReference

Fuel use30.7 l/hourReference

Drawbar performanceReference

Fuel use31.4 l/hourReference

Gear 2DD used for power test.Reference

Max pull6449 kgReference

Gear 2DD used for pull test.Reference

LP gas 10-speed 2WDNovember 4 - 15, 1966Link: Nebraska Tractor Test 954 fileReference

Fuel use43.1 l/hourReference

Fuel use43.5 l/hourReference

Max pull6353 kgReference

Gear 1AT used for pull test.Reference

Diesel 10-speed 2WD VistaMay 13 - 24, 1968Link: Nebraska Tractor Test 974 fileReference

Fuel use30.3 l/hourReference

Fuel use31.0 l/hourReference

Max pull6551 kgReference

LP gas 10-speed 2WD VistaMay 13 - 24, 1968Link: Nebraska Tractor Test 975 fileReference

Fuel use43.9 l/hourReference

Max pull6599 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
