Tractor · 1969Unverified

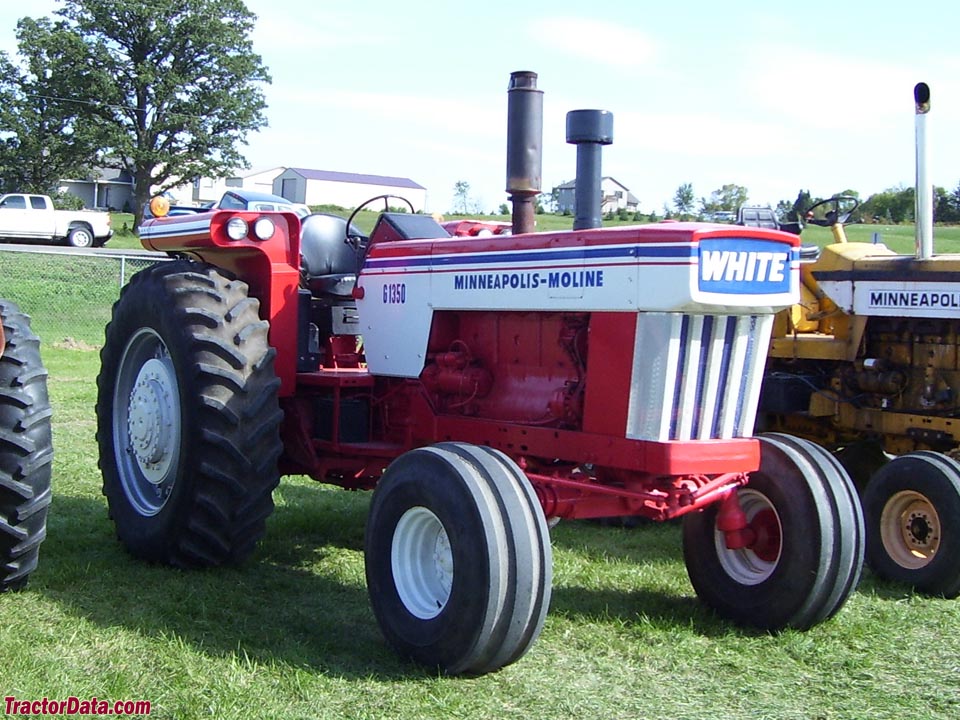

Minneapolis-Moline G1350

Name: Minneapolis-Moline G1350
Brand: Minneapolis-Moline

Minneapolis-Moline G1350 — Row-Crop tractor · 141 hp. Reference specifications; pending source verification.

The Minneapolis-Moline G1350 is a tractor with an output of 141 hp, classifying it among higher-powered machines of its type. Production of the G1350 spanned the period from 1969 to 1971. Power is generated by a 6-cylinder diesel liquid-cooled engine, transmitted to the wheels via a powershift transmission and two-wheel drive. The listed weight of the G1350 is 5465 kg, and it is suitable for tasks on areas of approximately 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

141 hp

Max power

86.8 kW

Weight

5465 kg

Catalogue coverage

Variants represented

Richest spec table

92 rows

Recorded power

141 hp

Recorded weight

5465 kg

Transmissions

10-speed two-speed power shift

Production years

1969-1971

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerMinneapolis-Moline (a part of White)Reference

Row-Crop tractorReference

Built in Minneapolis, Minnesota, USAReference

Original price was $13,700 in 1971Reference

Two-wheel driveReference

Final drivesoutboard planetaryReference

Power steeringReference

Dry disc brakesReference

Open operator station. Cab optional with heat and air-conditioning.Reference

Engine

Minneapolis-Moline 9.6L 6-cyl dieselReference

Minneapolis-Moline 8.3L 6-cyl LP gasReference

Fuel tank151.4 LReference

Drawbar (tested)86.8 kWReference

Minneapolis-MolineReference

dieselReference

6-cylinderReference

liquid-cooledReference

Displacement9.6 LReference

Bore/Stroke121 x 140 mmReference

Air cleanerdry elementReference

Compression15.3:1Reference

Rated RPM2200Reference

Starter volts12Reference

LP gasReference

Displacement8.3 LReference

Bore/Stroke117 x 127 mmReference

Rated RPM1800Reference

Power at rated engine speed105.5 kWReference

Max power86.8 kWReference

Transmission

10-speed two-speed power shiftReference

TransmissionMinneapolis-Moline Ampli-TorcReference

Typetwo-speed power shiftReference

Gears10 forward and 2 reverseReference

Clutch355.6mm dry discReference

PTO & Hydraulics

Diesel PTO (claimed)105.1 kWReference

LP-gas PTO (claimed)100.7 kWReference

PTO (tested)105.5 kWReference

Typeopen centerReference

Typeclosed centerReference

Pressure137.9 barReference

Valves2 or 3Reference

Pump flow75.7 lpmReference

Rear TypeIII/IIReference

Rear PTOindependentReference

Clutchwet discReference

Rear PTO Type1000 (1.375)Reference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@1800Reference

Engine RPM1000@1800Reference

Power at rated PTO speed95.5 kWReference

Dimensions

Wheelbase264 cmReference

Weight5465 kgReference

Front tire7.50x18Reference

Rear tire18.4x38Reference

Ag front7.50x18Reference

Ag rear18.4x38Reference

Ag front7.50x16Reference

Ag front11.00x16Reference

Ag front11.00Lx15Reference

Ag front14.00Lx16AReference

Ag rear20.8x38Reference

Ag rear23.1x34Reference

Ag rear24.5x32Reference

Length427 cmReference

Width241 cmReference

Operating weight5465 kgReference

Ballasted weight9316 kgReference

Clearance (rear axle)68 cmReference

Clearance (drawbar)48 cmReference

Front tread137 cmReference

Front tread142 to 203 cmReference

Rear tread154 to 213 cmReference

Steering wheel205 cmReference

G1350 Serial Numbers

197143-300-043Reference

Final43-300-253Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Batteries2Reference

Battery volts12Reference

Minneapolis-Moline G1350 Height

Hood177 cmReference

Exhaust251 cmReference

Test results

Diesel 10-speed 2WDMay 24 - June 5, 1971Link: Nebraska Tractor Test 1069 fileReference

PTO performanceReference

Fuel use36.7 l/hourReference

Fuel use31.8 l/hourReference

Drawbar performanceReference

Fuel use35.6 l/hourReference

Gear 3-Low used for power test.Reference

Max pull7085 kgReference

Gear 1-Low used for pull test.Reference

Speeds

With 18.4x38 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
