Tractor · 1971Unverified

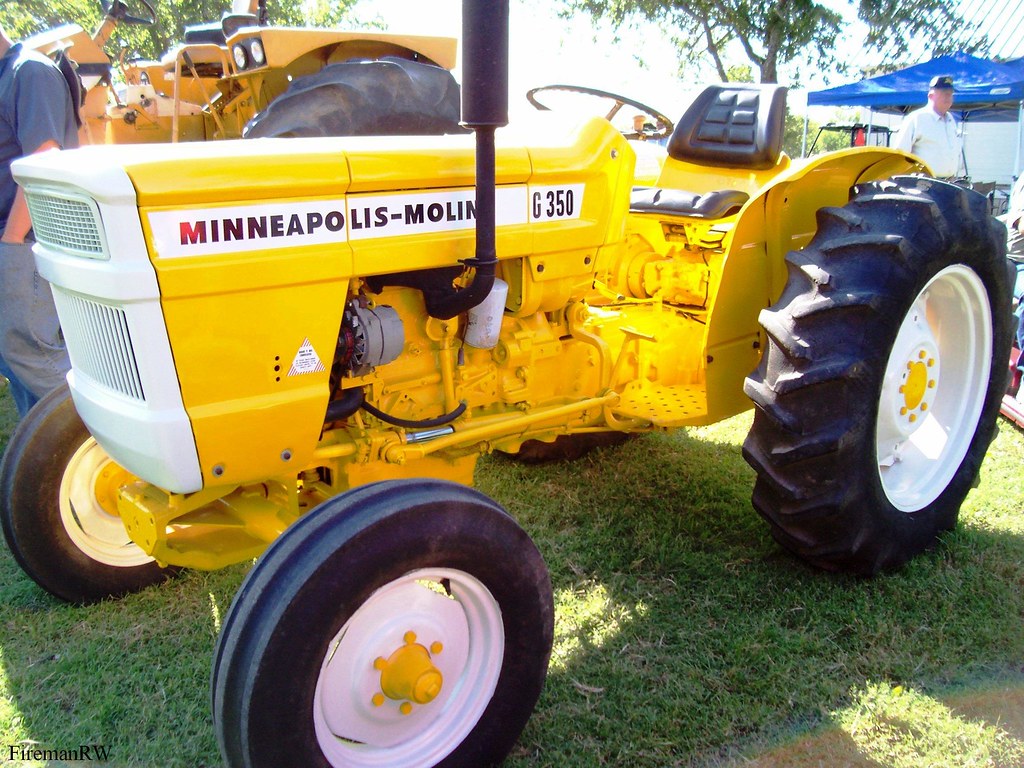

Minneapolis-Moline G350
Minneapolis-Moline G350 — Utility tractor · 41 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
41 hp
Weight
3710 to 4300 pounds
Hover a source tag to verify
Overview
ManufacturerMinneapolis-MolineReference
Utility tractorReference
Original price was $6,900 in 1975Reference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Mechanical band brakesReference
Open operator station.Reference
Engine
Fiat 2.6L 3-cyl dieselReference
FiatReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.6 LReference
Bore/Stroke100 x 110 mmReference
Air cleaneroil bathReference
Pre-heatingthermostartReference
Compression17:1Reference
Rated RPM2400Reference
Starter volts12Reference
Oil capacity7.6 LReference
Coolant capacity12.8 LReference
Transmission
6-speed partially synchronizedReference
9-speed creeperReference
Typepartially synchronizedReference
Gears6 forward and 2 reverseReference
Clutch254mm dry discReference
Oil capacity17.0 LReference
Synchronized shifts between gears 2-3 and 5-6.Reference
TypecreeperReference
Gears9 forward and 3 reverseReference
PTO & Hydraulics
PTO (claimed)30.6 kWReference
Hydraulic system17.0 LReference
Typeopen centerReference
Capacity17.0 LReference
Pressure147.1 barReference
Pump flow21.8 lpmReference
Rear TypeII/IReference
Controlposition and draft controlReference
Rear lift1206 kgReference
Rear PTOliveReference
Rear PTO Type540/groundReference
Engine RPM540@1970Reference
Capacities
Fuel53.9 LReference
Dimensions
Wheelbase191 cmReference
Weight3710 to 4300 poundsReference
Front tire6.00-16Reference
Rear tire13.6-28Reference
2WD Ag front6.00-16Reference
4WD Ag front7.50x20Reference
2WD Ag rear13.6-28Reference
4WD Ag rear12.4-28Reference
2WD Ag front7.50-16Reference
2WD Ag rear12.4-28Reference
2WD Ag rear14.9-28Reference
2WD Length292 cmReference
4WD Length303 cmReference
Width158 cmReference
2WD Height (steering wheel)143 cmReference
2WD Shipping weight1682 kgReference
4WD Shipping weight1950 kgReference
2WD Clearance (front axle)46 cmReference
4WD Clearance (front axle)35 cmReference
2WD Front tread128 to 198 cmReference
4WD Front tread139/149 cmReference
Rear tread120 to 189 cmReference
Minneapolis-Moline G350 attachments
front-end loaderReference
G350 Serial Numbers
Location:Serial number plate below instrument panel.Reference
1971302402Reference
1972304497Reference
1973307221Reference
1974314369Reference
1975317000Reference
Final321497Reference
FAQ: How to read a serial number table.Reference
Electrical
Charging systemalternatorReference
Charging amps42Reference
Battery volts12Reference
Attachment overview
Cockshutt 1522 loaderReference
Cockshutt 1524 loaderReference
Speeds
With 13.6-28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
