Tractor · 1962Unverified

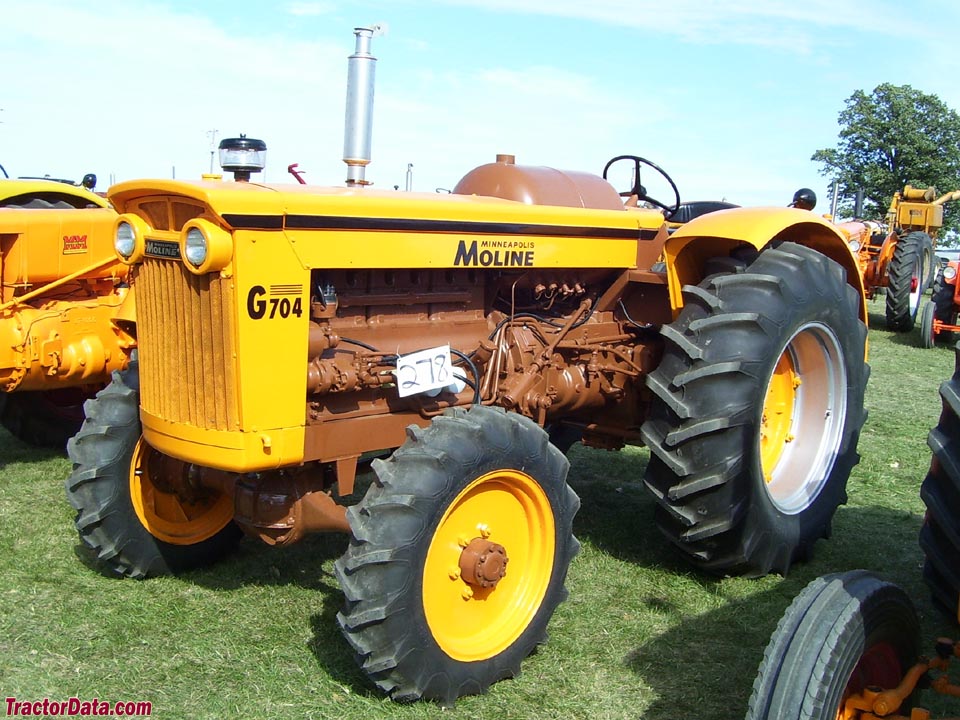

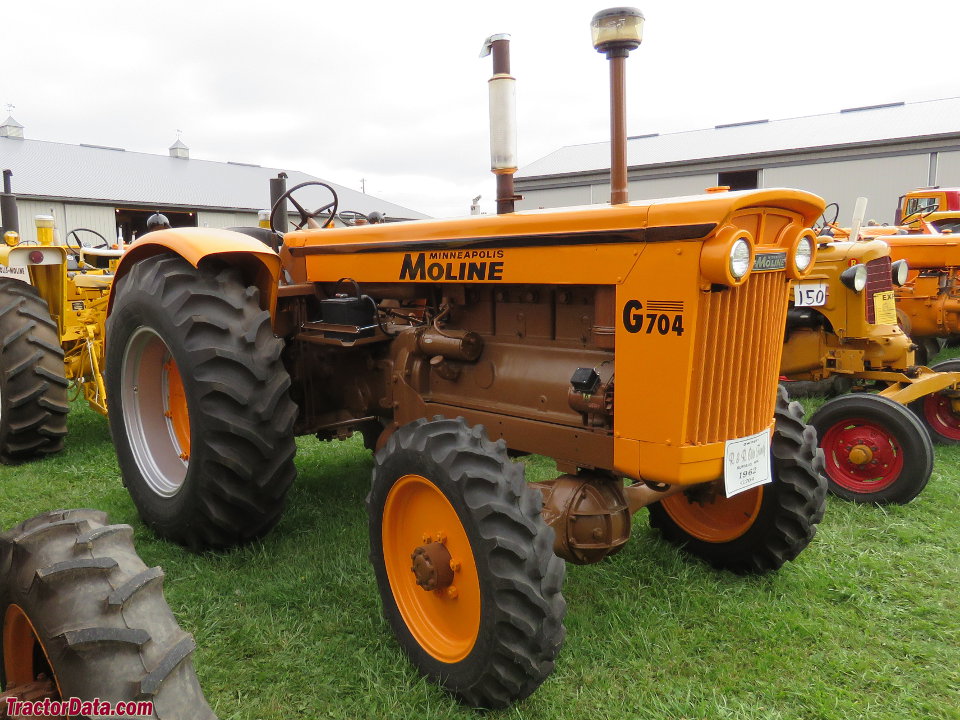

Minneapolis-Moline G704
Minneapolis-Moline G704 — Standard-tread tractor · 102 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
102 hp
Weight
3946 kg
Hover a source tag to verify
Overview
ManufacturerMinneapolis-MolineReference
Standard-tread tractorReference
Built in Minneapolis, Minnesota, USAReference
Original price was $8,200 in 1962Reference
The Minneapolis-Moline G-704 is, basically, a G-VI with standard front-wheel assist.Reference
Four-wheel driveReference

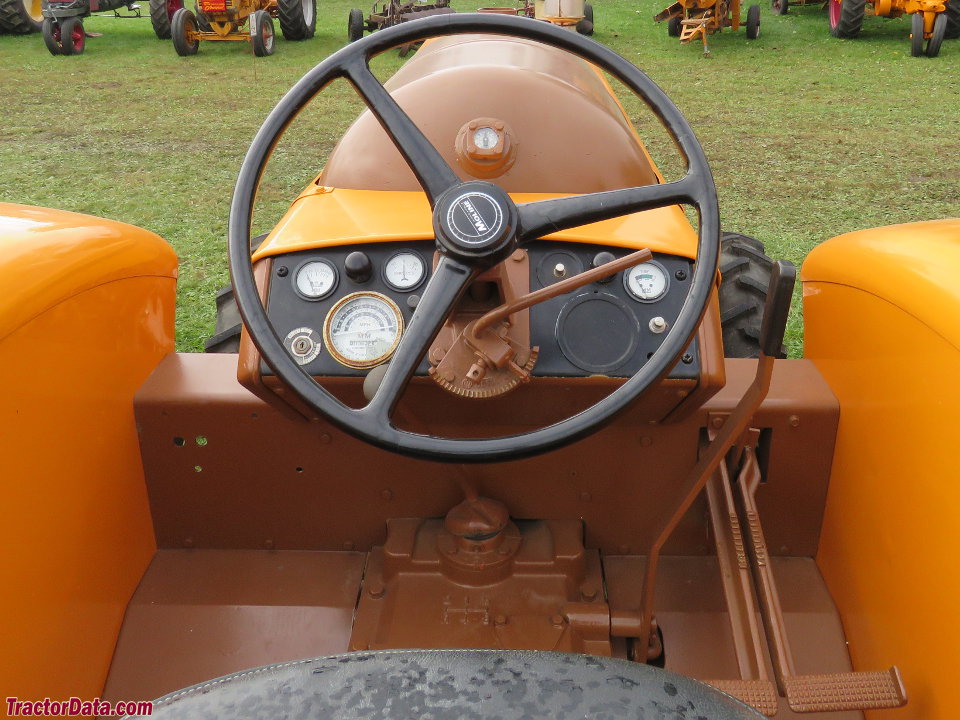

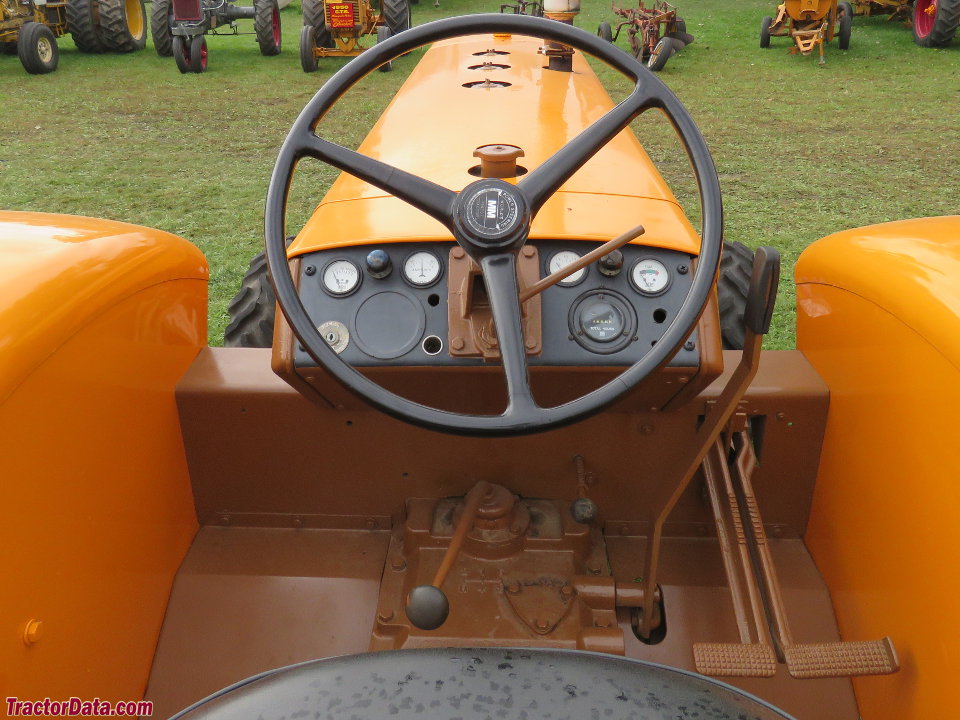

Open operator station.Reference
Engine
Minneapolis-Moline 7.0L 6-cyl LP gasReference
Minneapolis-Moline 7.0L 6-cyl dieselReference
Minneapolis-Moline 425-6Reference
LP gasReference
6-cylinderReference
liquid-cooledReference
Displacement7.0 LReference
Bore/Stroke108 x 127 mmReference
Rated RPM1500Reference
Firing order1-5-3-6-2-4Reference
Oil capacity14.2 LReference
Minneapolis-Moline D425A-6Reference
dieselReference
Transmission
5-speedReference
Gears5 forward and 1 reverseReference
PTO & Hydraulics
PTO (claimed)76.1 kWReference
Dimensions
Weight3946 kgReference
Front tire9.5-24Reference
Rear tire18.4-38Reference
Ag front9.5-24Reference
Ag rear18.4-38Reference
G704 Serial Number Location
Serial number plate on the right side of the Minneapolis-Moline G704 tractor frame, ahead of the operator platform and below the battery tray.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
