Tractor · 1962Unverified

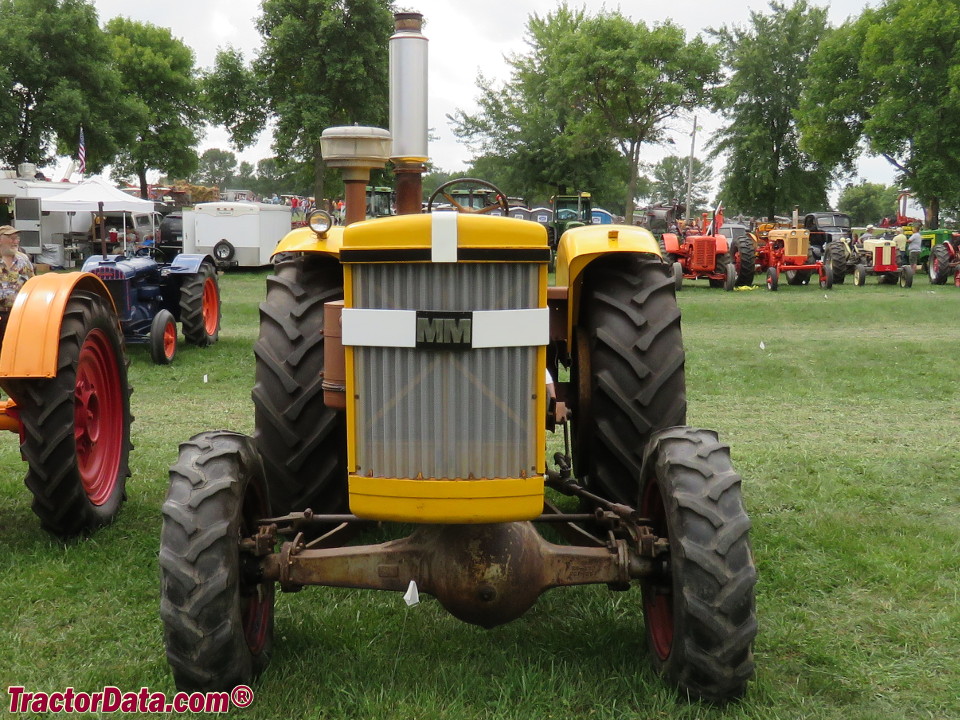

Minneapolis-Moline G706
Minneapolis-Moline G706 — Standard-tread tractor · 102 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
102 hp
Max power
65.5 kW
Weight
8550 to 9165 pounds
Hover a source tag to verify
Overview
ManufacturerMinneapolis-MolineReference
Standard-tread tractorReference
Built in Hopkins, Minnesota, USAReference
Original price was $8,800 in 1965Reference
Four-wheel driveReference
Power steeringReference
Differential disc brakesReference
Open operator station. Cab optional with available air-conditioning.Reference
Variants
G7052WDReference
G7064WDReference
Engine
Minneapolis-Moline 8.3L 6-cyl dieselReference
Minneapolis-Moline 8.3L 6-cyl LP gasReference
Diesel Fuel tank143.8 LReference
LP-gas Fuel tank155.9 LReference
Engine83.5 kWReference
Drawbar (tested)65.5 kWReference
Minneapolis-MolineReference
dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement8.3 LReference
Bore/Stroke117 x 127 mmReference
Power80.5 kWReference
Air cleaneroil bathReference
Compression14.8:1Reference
Rated RPM1600Reference
Starter volts12Reference
Oil capacity13.2 LReference
Coolant capacity47.3 LReference
LP gasReference
Power83.5 kWReference
Compression8.0:1Reference
Power at rated engine speed75.8 kWReference
Max power65.5 kWReference
Power at rated engine speed75.6 kWReference
Max power64.3 kWReference
Transmission
5-speed unsynchronized gearReference
Typeunsynchronized gearReference
Gears5 forward and 1 reverseReference
Clutchdry discReference
Oil capacity49.2 LReference
PTO & Hydraulics
Diesel PTO (claimed)68.6 kWReference
LP-gas PTO (claimed)70.8 kWReference
PTO (tested)75.8 kWReference
Typeopen centerReference
Valves2Reference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1200Reference
Power at rated PTO speed60.9 kWReference
Power at rated PTO speed61.4 kWReference
Dimensions
Wheelbase214 cmReference
Weight8550 to 9165 poundsReference
Front tire9.5-24Reference
Rear tire18.4-34Reference
Ag front9.5-24Reference
Ag rear18.4-34Reference
Ag rear23.1-26Reference
Length382 cmReference
Width208 cmReference
Height (steering wheel)200 cmReference
Height (exhaust)244 cmReference
Clearance (front axle)25 cmReference
Clearance (rear axle)66 cmReference
Front tread173 cmReference
Rear tread163 cmReference
LP-gas Shipping3878 kgReference
Diesel Shipping3900 kgReference
LP-gas Operating4089 kgReference
Diesel Operating4157 kgReference
Ballasted7323 kgReference
G706 Serial Number Location
Serial number plate on the right side of the tractor transmission housing, below the battery box.Reference
G706 Serial Numbers
196224000001 (LP gas)Reference
196324000073 (LP gas)Reference
196424000306 (LP gas)Reference
196524000351 (LP gas)Reference
Final24000370 (LP gas)Reference
196224100001 (diesel)Reference
196324100107 (diesel)Reference
196424100550 (diesel)Reference
196524100796 (diesel)Reference
Final24100821 (diesel)Reference
FAQ: How to read a serial number table.Reference
Test results
NTTL 833: diesel 5-speed 4WDReference
NTTL 834: LP-gas 5-speed 4WDReference
Diesel 5-speed 4WDApril 6 - 17, 1963Link: Nebraska Tractor Test 833 fileReference
PTO performanceReference
Fuel use28.4 l/hourReference
Fuel use22.3 l/hourReference
Drawbar performanceReference
Fuel use28.0 l/hourReference
Gear 3 used for power test.Reference
Max pull5212 kgReference
Gear 1 used for pull test.Reference
LP-gas 5-speed 4WDApril 8 - 23, 1963Link: Nebraska Tractor Test 834 fileReference
Fuel use43.1 l/hourReference
Fuel use33.7 l/hourReference
Fuel use41.6 l/hourReference
Max pull5122 kgReference
Speeds
With 18.4-34 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
