Tractor · 1969Unverified

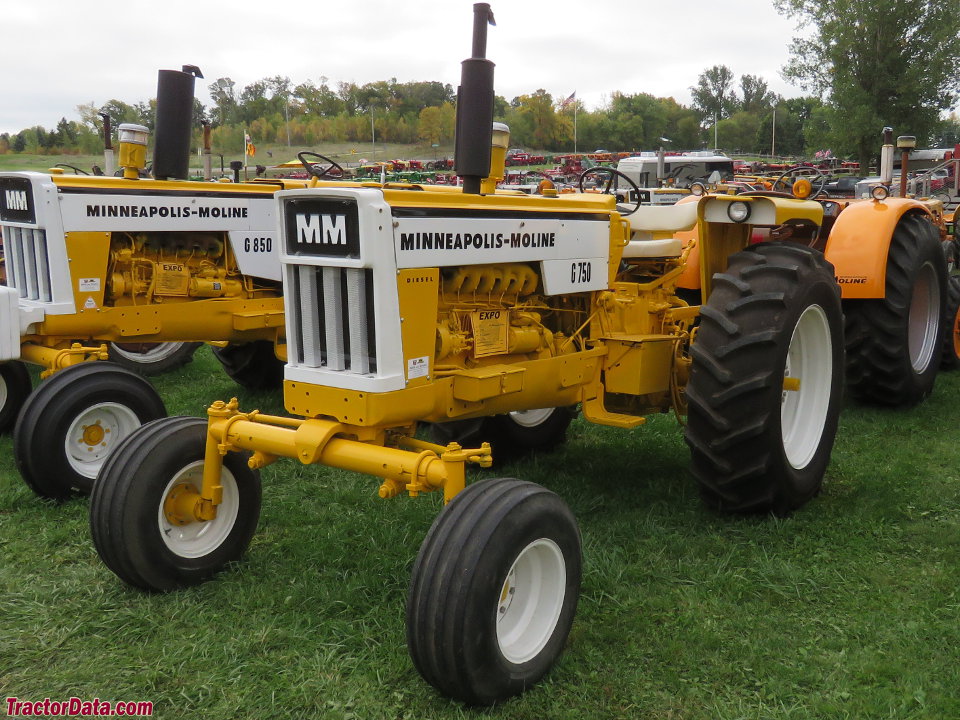

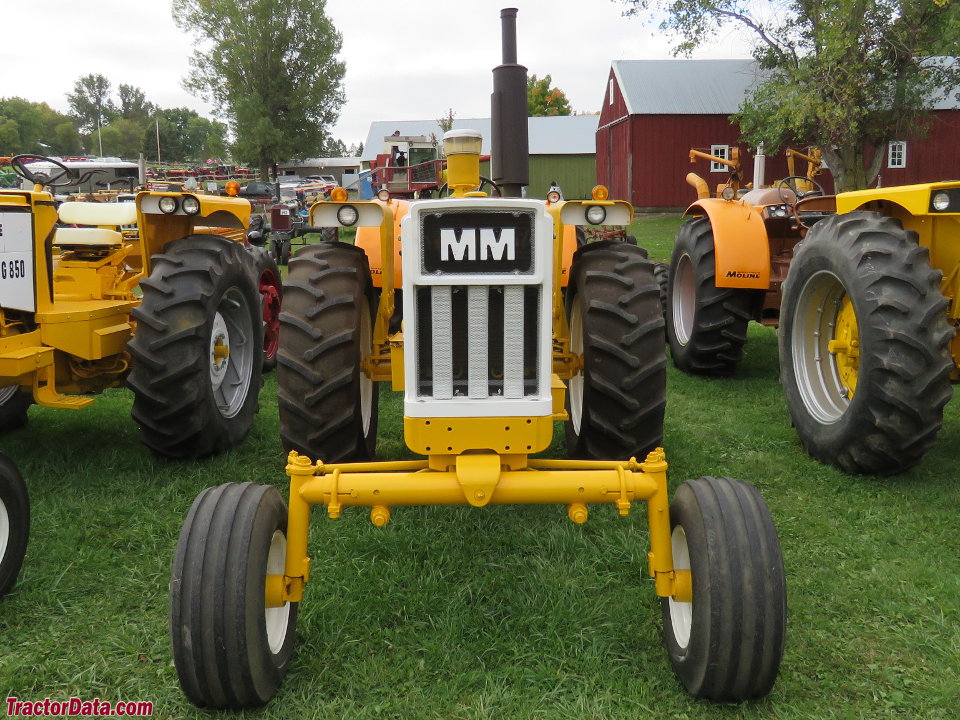

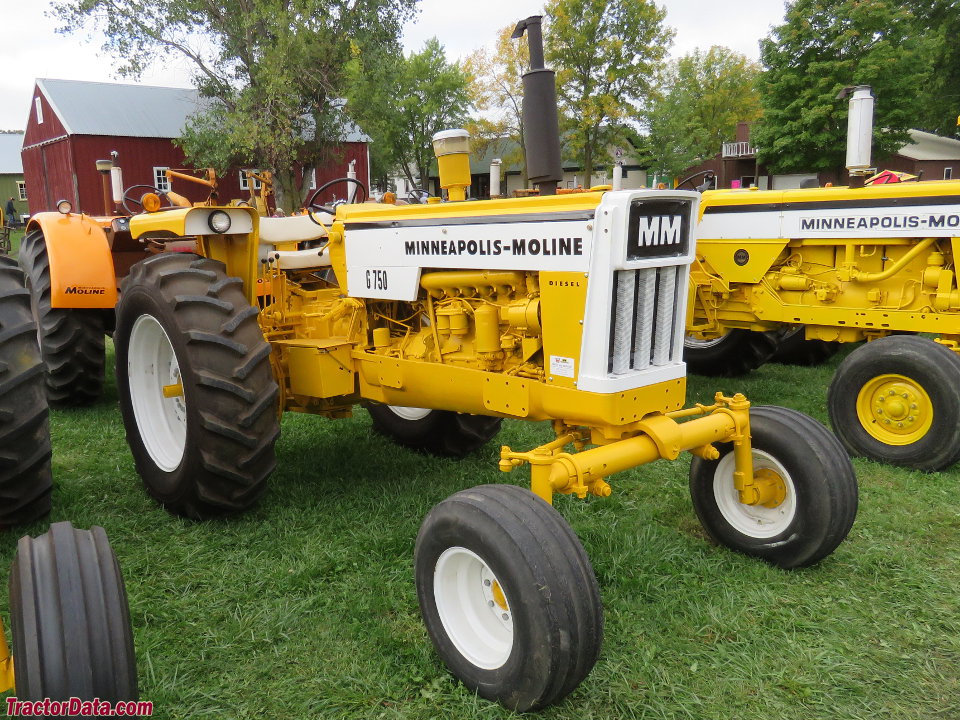

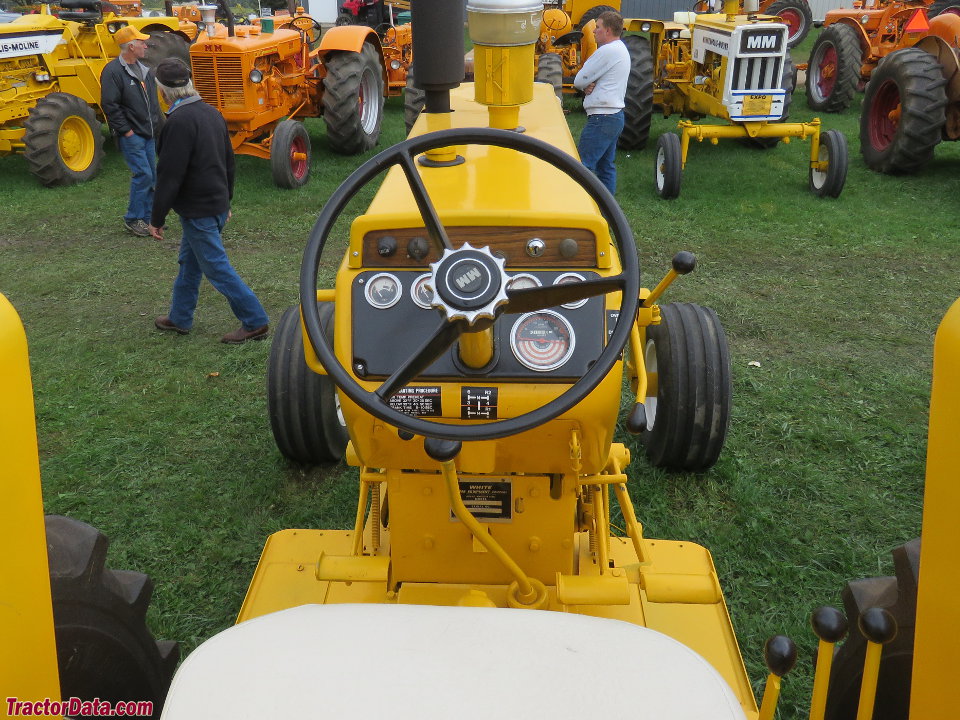

Minneapolis-Moline G750
Minneapolis-Moline G750 — Row-Crop tractor · 71 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
71 hp
Max power
44.8 kW
Weight
7500 to 8000 pounds
Hover a source tag to verify
Overview
ManufacturerMinneapolis-Moline (a part of White)Reference
Row-Crop tractorReference
Original price was $10,000 in 1975Reference
Two- or four-wheel driveReference
Power steeringReference
Disc brakesReference
Open operator station. Cab optional with available heater.Reference
Engine
Waukesha-Oliver 4.6L 6-cyl dieselReference
Waukesha-Oliver 4.3L 6-cyl gasolineReference
Drawbar (tested)44.8 kWReference
Waukesha-OliverReference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement4.6 LReference
Bore/Stroke98 x 102 mmReference
Air cleanerdryReference
Compression16.5:1Reference
Rated RPM2200Reference
Starter volts12Reference
Oil capacity7.6 LReference
Coolant capacity18.9 LReference
gasolineReference
Displacement4.3 LReference
Bore/Stroke95 x 102 mmReference
Compression8.5:1Reference
Firing order1-5-3-6-2-4Reference
Power at rated engine speed52.6 kWReference
Max power44.8 kWReference
Power at rated engine speed52.4 kWReference
Max power42.8 kWReference
Transmission
18-speed partial power shiftReference
6-speed helical gearReference
TransmissionHydraul-ShiftReference
Typepartial power shiftReference
Gears18 forward and 6 reverseReference
Clutch304.8mm dry discReference
The Hydraul-Shift transmission allows a three-speed power shift between over, direct, and under drive for each gear.Reference
Typehelical gearReference
Gears6 forward and 2 reverseReference
Oil capacity30.3 LReference
PTO & Hydraulics
PTO (claimed)52.2 kWReference
PTO (tested)52.6 kWReference
Hydraulic system53.0 LReference
Typeopen centerReference
Capacity53.0 LReference
Valves2 to 4Reference
Rear TypeII/IReference
Controllower-link draft controlReference
Rear PTOindependentReference
Rear PTO Type540Reference
Rear PTO Type1000Reference
Rear PTO Type540/1000Reference
Capacities
Fuel104.1 LReference
Dimensions
2WD Wheelbase252 cmReference
4WD Wheelbase208 cmReference
Weight7500 to 8000 poundsReference
Front tire7.50-16Reference
Rear tire18.4-34Reference
Ag front7.50-16Reference
Ag rear18.4-34Reference
Ag front6.00-16Reference
Ag front6.50-16Reference
Ag front7.50-15Reference
Ag front7.50-18Reference
Ag front11.00L-15Reference
Ag rear12.4-38Reference
Ag rear13.6-38Reference
Ag rear14.9-38Reference
Ag rear15.5-38Reference
Ag rear16.9-38Reference
2WD Length392 cmReference
4WD Length369 cmReference
Width207 cmReference
2WD Front tread156 to 222 cmReference
4WD Front tread152/179 cmReference
Rear tread143 to 227 cmReference
2WD Shipping3402 kgReference
4WD Shipping3628 kgReference
Gasoline Operating3492 kgReference
Diesel Operating3628 kgReference
Ballasted5034 kgReference
Steering wheel203 cmReference
G750 Serial Number Location
Serial number plate below instrument panel.Reference
G750 Serial Numbers
1969218-025Reference
1970222-600Reference
1971222-761Reference
1972231-772Reference
1973236-586Reference
1974244-735Reference
1975257-700Reference
Final263-340Reference
FAQ: How to read a serial number table.Reference
Minneapolis-Moline G750 Height
2WD Exhaust250 cmReference
4WD Exhaust250 cmReference
Test results
NTTL 1041: diesel 18-speed 2WDReference
NTTL 1042: gasoline 18-speed 2WDReference
Diesel 18-speed 2WDMay 5 - 22, 1970Link: Nebraska Tractor Test 1041 fileReference
PTO performanceReference
Fuel use18.9 l/hourReference
Drawbar performanceReference
Fuel use18.5 l/hourReference
Gear 3-Direct used for power test.Reference
Max pull4126 kgReference
Gear 1-Direct used for pull test.Reference
Gasoline 18-speed 2WDMay 7 - 22, 1970Link: Nebraska Tractor Test 1042 fileReference
Fuel use25.0 l/hourReference
Fuel use24.6 l/hourReference
Max pull3864 kgReference
Speeds
With 16.9-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
