Tractor · 1967Unverified

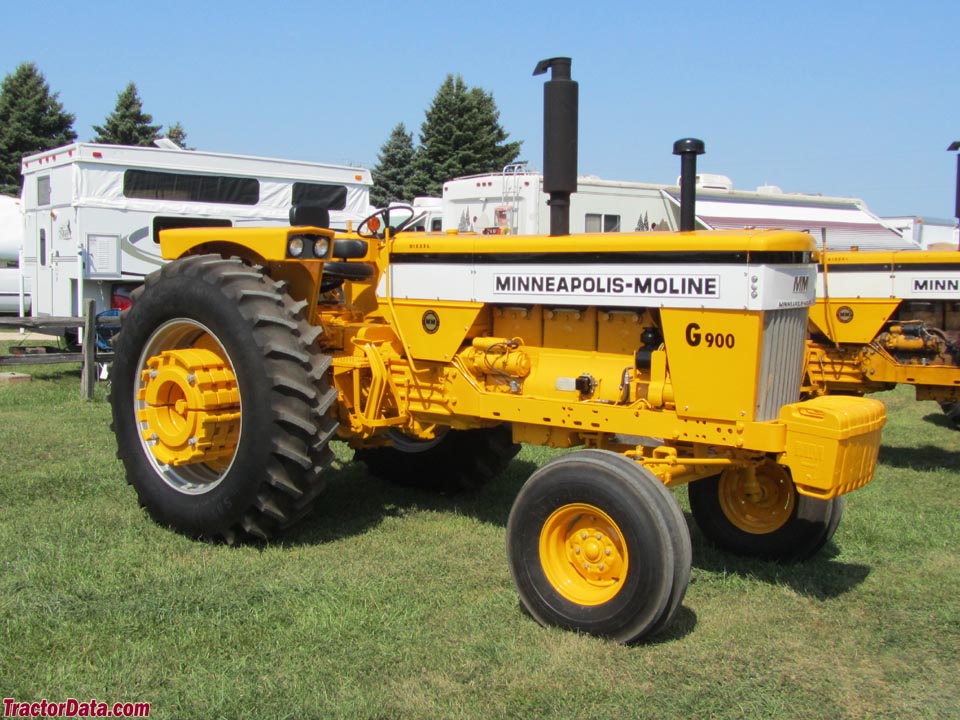

Minneapolis-Moline G900

Name: Minneapolis-Moline G900
Brand: Minneapolis-Moline

Minneapolis-Moline G900 — Row-Crop tractor · 98 hp. Reference specifications; pending source verification.

The Minneapolis-Moline G900 is a tractor model with a rated output of 98 hp, placing it roughly in the middle of its class for power. Produced from 1967 to 1969, the G900 is equipped with a 6-cylinder diesel liquid-cooled engine, which drives four-wheel drive via a powershift transmission. The tractor's listed weight ranges from 9400 to 10300 pounds, making it suitable for applications involving around 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

98 hp

Max power

62.1 kW

Weight

9400 to 10300 pounds

Catalogue coverage

Variants represented

Richest spec table

90 rows

Recorded power

98 hp

Transmissions

10-speed two-speed power shift

Production years

1967-1969

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerMinneapolis-MolineReference

Row-Crop tractorReference

Built in Minneapolis, Minnesota, USAReference

Original price was $8,200 in 1969Reference

Two- or four-wheel driveReference

Final drivesbull gearReference

Power steeringReference

Differential dry disc brakesReference

Open operator station. Cab optional with air-conditioning.Reference

Engine

Minneapolis-Moline 7.4L 6-cyl dieselReference

Minneapolis-Moline 7.0L 6-cyl LP gasReference

Minneapolis-Moline 7.0L 6-cyl gasolineReference

Fuel tank151.4 LReference

Fuel tank147.6 LReference

Drawbar (claimed)61.9 kWReference

Drawbar (tested)65.5 kWReference

Minneapolis-Moline D451-6Reference

dieselReference

6-cylinderReference

liquid-cooledReference

Displacement7.4 LReference

Bore/Stroke111 x 127 mmReference

Air cleanerdryReference

Compression15.4:1Reference

Rated RPM1800Reference

Starter volts12Reference

Minneapolis-Moline 425C-6Reference

LP gasReference

Displacement7.0 LReference

Bore/Stroke108 x 127 mmReference

Compression9:1Reference

Firing order1-5-3-6-2-4Reference

gasolineReference

Compression7.1:1Reference

Power at rated engine speed72.9 kWReference

Max power62.1 kWReference

Power at rated engine speed72.8 kWReference

Max power62.7 kWReference

Power at rated engine speed72.9 kWReference

Max power65.5 kWReference

Transmission

10-speed two-speed power shiftReference

TransmissionAmpli-TorcReference

Typetwo-speed power shiftReference

Gears10 forward and 2 reverseReference

Clutchdry discReference

Five-speed transmission with power shift between drive drive (DD) and Ampli-Torc (AT).Reference

PTO & Hydraulics

PTO (claimed)73.1 kWReference

PTO (tested)72.9 kWReference

Typeopen centerReference

Rear TypeIIReference

Rear PTOindependentReference

Rear PTO Type1000Reference

Rear PTO Type540/1000Reference

Engine RPM540@1800Reference

Engine RPM1000@1800Reference

Dimensions

Wheelbase261 cmReference

Weight9400 to 10300 poundsReference

Front tire7.50-16Reference

Rear tire23.1-30Reference

Ag front7.50-16Reference

Ag rear23.1-30Reference

Length417 cmReference

Width239 cmReference

Height (steering wheel)213 cmReference

Height (hood)190 cmReference

Front tread142 to 203 cmReference

Rear tread162 to 243 cmReference

Shipping4263 kgReference

Operating4672 kgReference

Ballasted6869 kgReference

Electrical

Charging systemalternatorReference

Battery volts12Reference

Test results

NTTL 978: diesel Ampli-Torc 2WDReference

NTTL 979: LP gas Ampli-Torc 2WDReference

NTTL 980: gasoline Ampli-Torc 2WDReference

Diesel Ampli-Torc 2WDJune 4 - 20, 1968Link: Nebraska Tractor Test 978 fileReference

PTO performanceReference

Fuel use26.5 l/hourReference

Drawbar performanceReference

Fuel use25.7 l/hourReference

Gear 2DD used for power test.Reference

Max pull5422 kgReference

Gear 1AT used for pull test.Reference

LP gas Ampli-Torc 2WDJune 4 - 20, 1968Link: Nebraska Tractor Test 979 fileReference

Fuel use37.9 l/hourReference

Fuel use37.5 l/hourReference

Max pull5445 kgReference

Gasoline Ampli-Torc 2WDJune 11 - 20, 1968Link: Nebraska Tractor Test 980 fileReference

Fuel use31.8 l/hourReference

Max pull5356 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
