Tractor · 1969Unverified

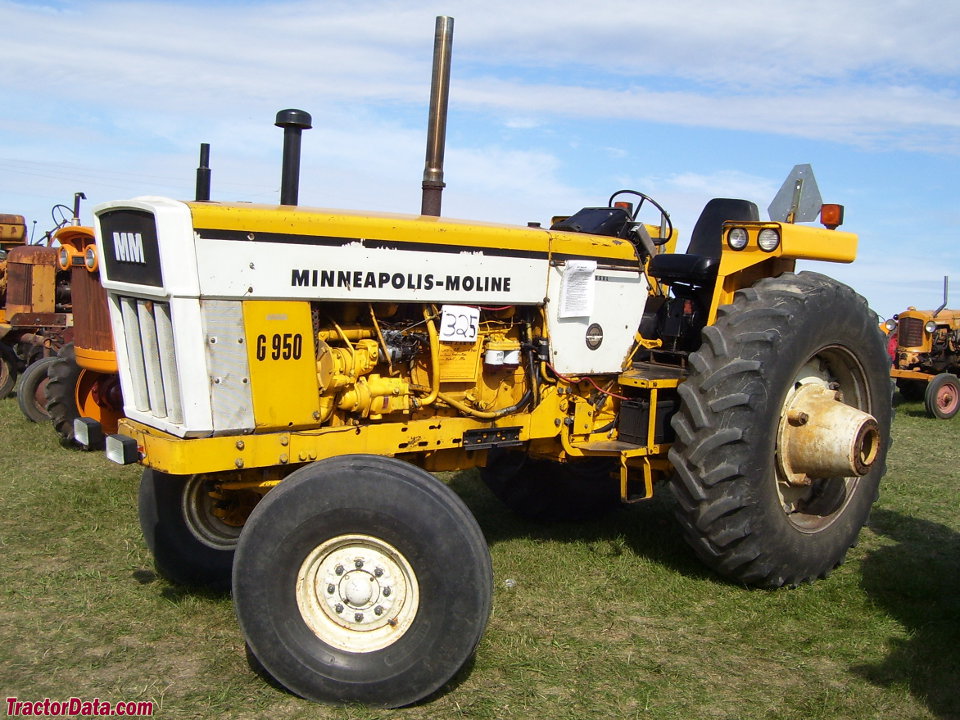

Minneapolis-Moline G950
Minneapolis-Moline G950 — Standard-tread tractor · 98 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
98 hp
Max power
62.1 kW
Weight
10530 to 10550 pounds
Hover a source tag to verify
Overview
ManufacturerMinneapolis-Moline (a part of White)Reference
Standard-tread tractorReference
Built in Minneapolis, Minnesota, USAReference
Original price was $10,400 in 1971Reference
Two-wheel driveReference
Power steeringReference
Disc brakesReference
Open operator station.Reference
Engine
Minneapolis-Moline 7.4L 6-cyl dieselReference
Minneapolis-Moline 7.0L 6-cyl LP gasReference
Minneapolis-Moline 7.0L 6-cyl gasolineReference
Fuel tank151.4 LReference
Drawbar (claimed)65.6 kWReference
Drawbar (tested)65.5 kWReference
Minneapolis-Moline D451-6Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement7.4 LReference
Bore/Stroke111 x 127 mmReference
Air cleanerdryReference
Compression15.4:1Reference
Rated RPM1800Reference
Starter volts12Reference
Oil capacity12.3 LReference
Coolant capacity31.2 LReference
Minneapolis-Moline 425C-6Reference
LP gasReference
Displacement7.0 LReference
Bore/Stroke108 x 127 mmReference
Compression9:1Reference
Firing order1-5-3-6-2-4Reference
Coolant capacity28.4 LReference
gasolineReference
Compression7.1:1Reference
Power at rated engine speed72.9 kWReference
Max power62.1 kWReference
Power at rated engine speed72.8 kWReference
Max power62.7 kWReference
Power at rated engine speed72.9 kWReference
Max power65.5 kWReference
Transmission
10-speed two-speed power shiftReference
15-speed three-speed power shiftReference
TransmissionMinneapolis-Moline Ampli-TorcReference
Typetwo-speed power shiftReference
Gears10 forward and 2 reverseReference
Clutch355.6mm dry discReference
Oil capacity83.3 LReference
Five-speed transmission with power shift between drive drive (DD) and Ampli-Torc (AT).Reference
Typethree-speed power shiftReference
Gears15 forward and 3 reverseReference
Five-speed transmission with three-speed power shift.Reference
PTO & Hydraulics
PTO (claimed)72.3 kWReference
PTO (tested)72.9 kWReference
Typeclosed centerReference
Rear TypeIII/IIReference
Rear PTOindependentReference
Clutchwet discReference
Rear PTO Type1000 (1.375)Reference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1800Reference
Engine RPM1000@1800Reference
Dimensions
Wheelbase265 cmReference
Weight10530 to 10550 poundsReference
Front tire6.50-16Reference
Rear tire18.4-34Reference
Ag front6.50-16Reference
Ag rear18.4-34Reference
Ag rear18.4-38Reference
Ag rear23.1-34Reference
Ag rear24.5-32Reference
Length417 cmReference
Width239 cmReference
Diesel Weight4785 kgReference
LP-gas Weight4776 kgReference
Clearance (front axle)54 cmReference
Clearance (front axle)39 cmReference
Clearance (rear axle)60 cmReference
Front tread142 to 203 cmReference
Front tread137 cmReference
Rear tread152 to 243 cmReference
Steering wheel198 cmReference
G950 Serial Numbers
196943600001Reference
197043600211Reference
197143600416Reference
197243600830Reference
196943500001 (LP-gas)Reference
197043500061 (LP-gas)Reference
197143500086 (LP-gas)Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
LP-gas Batteries1Reference
Diesel Batteries2Reference
Battery volts12Reference
Minneapolis-Moline G950 Height
Hood180 cmReference
Exhaust254 cmReference
Test results
NTTL 978: diesel Ampli-Torc 2WDReference
NTTL 979: LP gas Ampli-Torc 2WDReference
NTTL 980: gasoline Ampli-Torc 2WDReference
Diesel Ampli-Torc 2WDJune 4 - 20, 1968Link: Nebraska Tractor Test 978 fileReference
PTO performanceReference
Fuel use26.5 l/hourReference
Drawbar performanceReference
Fuel use25.7 l/hourReference
Gear 2DD used for power test.Reference
Max pull5422 kgReference
Gear 1AT used for pull test.Reference
LP gas Ampli-Torc 2WDJune 4 - 20, 1968Link: Nebraska Tractor Test 979 fileReference
Fuel use37.9 l/hourReference
Fuel use37.5 l/hourReference
Max pull5445 kgReference
Gasoline Ampli-Torc 2WDJune 11 - 20, 1968Link: Nebraska Tractor Test 980 fileReference
Fuel use31.8 l/hourReference
Max pull5356 kgReference
Speeds
With 18.4-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
