Tractor · 1973Unverified

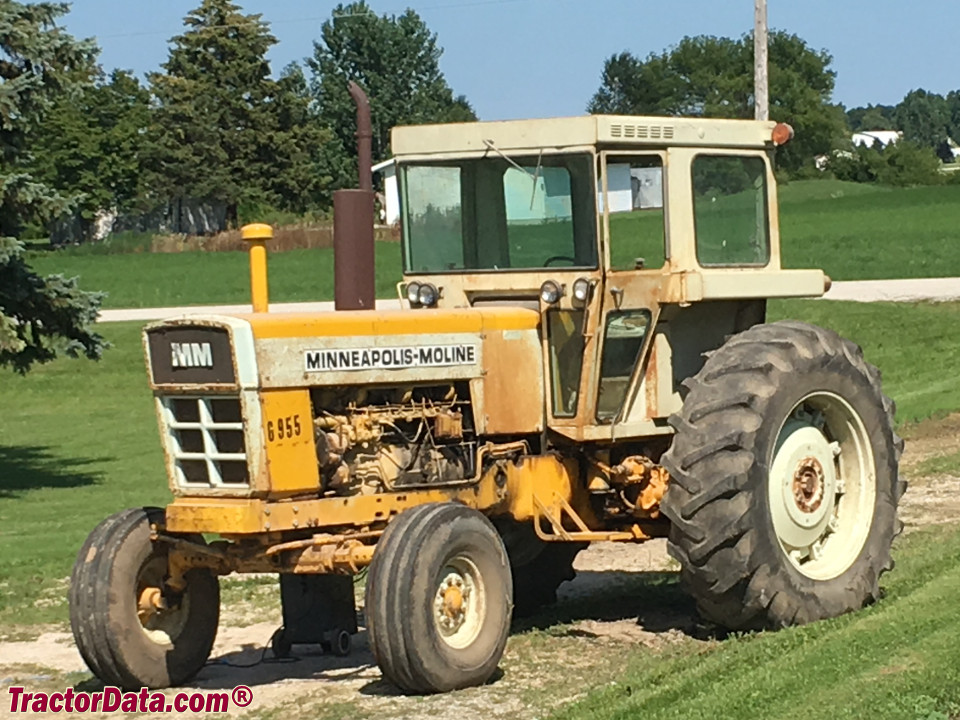

Minneapolis-Moline G955
Minneapolis-Moline G955 — 55 Series · 99 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
99 hp
Max power
59.8 kW
Weight
5397 kg
Hover a source tag to verify
Overview
ManufacturerMinneapolis-Moline (a part of White)Reference
Row-Crop tractorReference
Original price was $13,700 in 1974Reference
The Minneapolis-Moline G-955 was sold under the Minneapolis-Moline, Oliver, and White brands. It was sold as the White model 1870. Oliver appeared to use both the G955 and 1870 model numbers.Reference
Two-wheel driveReference
Power steeringReference
Disc brakesReference
Open operator station. Cab optional.Reference
Engine
Minneapolis-Moline 7.4L 6-cyl dieselReference
Minneapolis-Moline 7.0L 6-cyl LP-gasReference
Drawbar (claimed)59.7 kWReference
Drawbar (tested)59.8 kWReference
Minneapolis-MolineReference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement7.4 LReference
Bore/Stroke111 x 127 mmReference
Air cleanerdryReference
Compression15.2:1Reference
Rated RPM1800Reference
StarterelectricReference
Starter volts12Reference
Oil capacity9.5 LReference
Coolant capacity31.2 LReference
LP-gasReference
Displacement7.0 LReference
Bore/Stroke108 x 127 mmReference
Compression9:1Reference
Coolant capacity28.4 LReference
Power at rated engine speed73.7 kWReference
Max power59.8 kWReference
Transmission
6-speed gearReference
18-speed three-range power shiftReference
TypegearReference
Gears6 forward and 2 reverseReference
Clutch355.6mm dry discReference
Oil capacity40.7 LReference
TransmissionHydraul-ShiftReference
Typethree-range power shiftReference
Gears18 forward and 6 reverseReference
Six gears (1-6) with a three-range power shift (under, direct, and over drive).Reference
PTO & Hydraulics
Diesel PTO (claimed)72.3 kWReference
LP-gas PTO (claimed)68.6 kWReference
PTO (tested)73.7 kWReference
Hydraulic system25.7 LReference
Typeclosed centerReference
Capacity25.7 LReference
Pressure151.7 barReference
Pump flow75.7 lpmReference
Rear TypeIIReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Power at rated PTO speed73.7 kWReference
Capacities
Fuel151.4 LReference
Fuel147.6 LReference
Dimensions
Wheelbase281 cmReference
Weight5397 kgReference
Front tire10.00-16Reference
Rear tire18.4-38Reference
Ag front10.00-16Reference
Ag rear18.4-38Reference
Ag front11.00-16Reference
Ag front11.00L-15Reference
Ag rear23.1-30Reference
Ag rear23.1-34Reference
Ag rear20.8-38Reference
Ag rear20.8-34Reference
Ag rear18.4-34Reference
Ag rear16.9-38Reference
Ag rear15.5-38Reference
Length445 cmReference
Width243 cmReference
Height (steering wheel)217 cmReference
Height (hood)180 cmReference
Operating weight5397 kgReference
Clearance (front axle)54 cmReference
Front tread154 to 215 cmReference
Rear tread144 to 303 cmReference
G955 Serial Numbers
Location:Serial number plate below the instrument panel, behind the clutch pedal.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Test results
Diesel 18-speed 2WDJune 26 - August 26, 1974Link: Nebraska Tractor Test 1161 fileReference
PTO performanceReference
Fuel use27.3 l/hourReference
Fuel use26.9 l/hourReference
Drawbar performanceReference
Gear 4-Direct used for power test.Reference
Max pull3798 kgReference
Gear 2-Direct used for pull test.Reference
Speeds
With 18.4-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
