Tractor · 1955Unverified

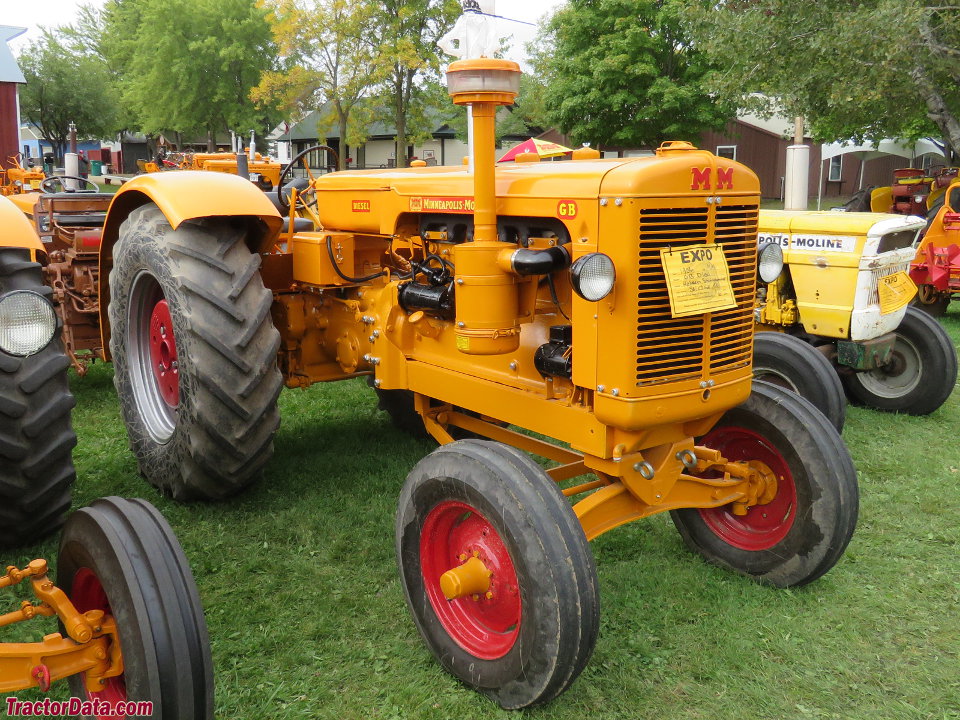

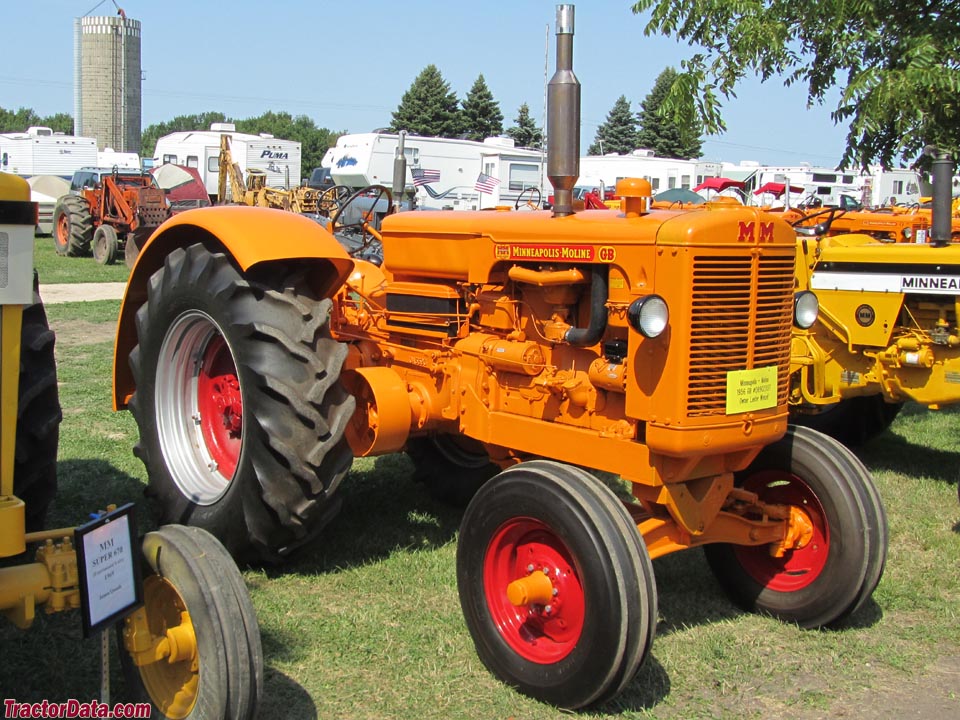

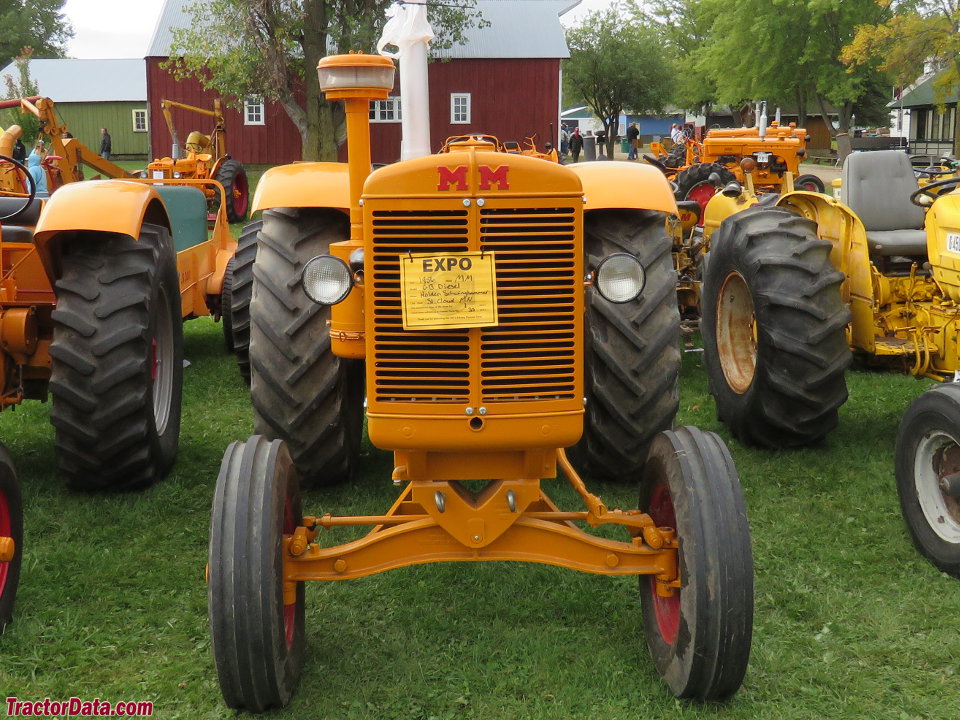

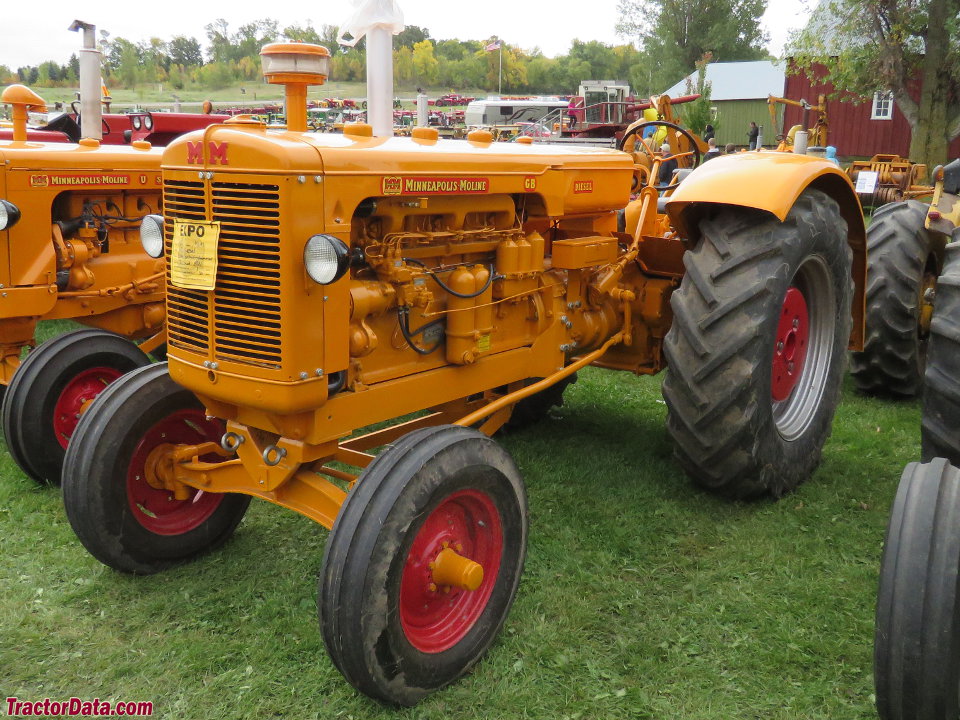

Minneapolis-Moline GB
Minneapolis-Moline GB — Standard-tread tractor · 64 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
64 hp
Max power
46.3 kW
Weight
3220 kg
Hover a source tag to verify
Overview
ManufacturerMinneapolis-MolineReference
Standard-tread tractorReference
Built in Minneapolis, Minnesota, USAReference
Original price was $5,000 in 1959Reference
Two-wheel driveReference
Disc brakesReference

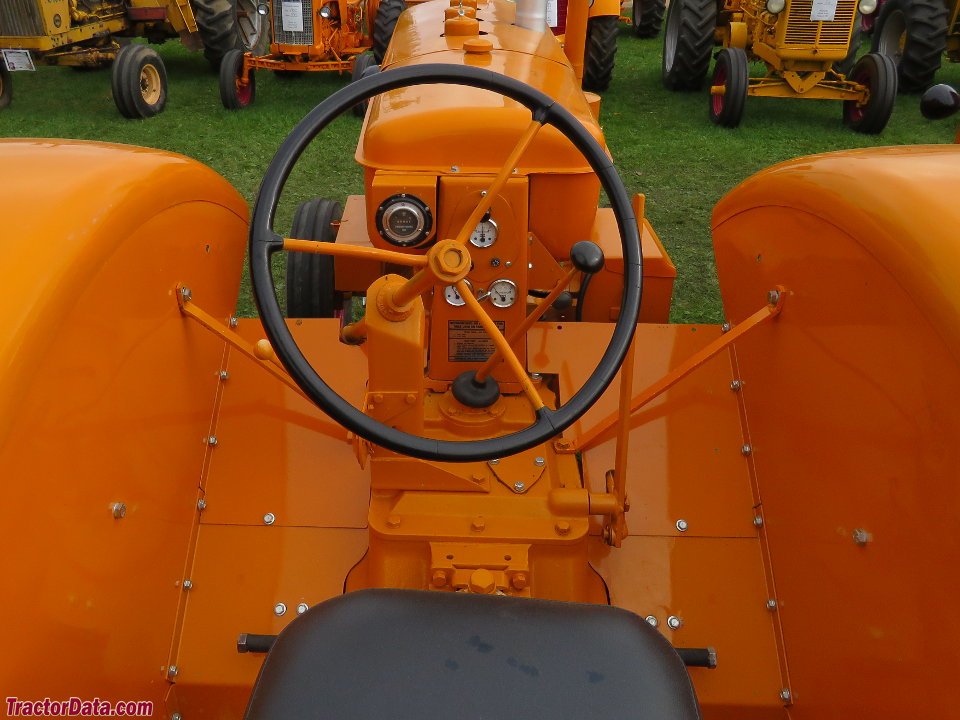

Open operator station.Reference
Engine
Minneapolis-Moline 6.6L 4-cyl gasolineReference
Minneapolis-Moline 7.0L 6-cyl dieselReference
Minneapolis-Moline 6.6L 4-cyl LP gasReference
Drawbar (claimed)37.3 kWReference
Plows5Reference
Drawbar (tested)47.5 kWReference
Belt (tested)52.6 kWReference
Minneapolis-Moline 403C-4Reference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement6.6 LReference
Bore/Stroke117 x 152 mmReference
Compression5.74:1Reference
Rated RPM1300Reference
Starter volts12Reference
Minneapolis-Moline D425-6Reference
dieselReference
6-cylinderReference
Displacement7.0 LReference
Bore/Stroke108 x 127 mmReference
Compression14.9:1Reference
LP gasReference
Compression8.37:1Reference
Belt power (max)52.6 kWReference
Max power46.3 kWReference
Belt power (max)48.9 kWReference
Max power34.5 kWReference
Belt power (max)46.8 kWReference
Max power47.5 kWReference
Transmission
5-speed gearReference
TypegearReference
Gears5 forward and 1 reverseReference
Clutchdry discReference
PTO & Hydraulics
PTO (claimed)47.7 kWReference
Rear PTOtransmissionReference
Rear PTOliveReference
Rear PTO Type540 (1.375)Reference
Engine RPM585@1300Reference
Dimensions
Wheelbase209 cmReference
Weight3220 kgReference
Front tire7.50-18Reference
Rear tire14-34Reference
Ag front7.50-18Reference
Ag rear14-34Reference
Length349 cmReference
Width210 cmReference
Height (steering wheel)180 cmReference
Height (hood)170 cmReference
Operating weight3220 kgReference
Ballasted weight5443 kgReference
Clearance (front axle)37 cmReference
Clearance (rear axle)39 cmReference
Front tread137 cmReference
Rear tread157 cmReference
GB Serial Number Location
Serial number plate on the right side of the Minneapolis-Moline GB tractor frame, just ahead of the operator platform.Reference
GB Serial Numbers
19558900001 (gas)Reference
19568901501 (gas)Reference
19578902602 (gas)Reference
19588903402 (gas)Reference
19598904252 (gas)Reference
19559000001 (diesel)Reference
19569000851 (diesel)Reference
19579001526 (diesel)Reference
19589002146 (diesel)Reference
19599002656 (diesel)Reference
FAQ: How to read a serial number table.Reference
Capacities
Diameter40 cmReference
Width17 cmReference
RPM741Reference
Speed946.10 meters/minReference
Test results
NTTL 545: LP gas 5-speed 2WDReference
NTTL 547: gasoline 5-speed 2WDReference
NTTL 568: diesel 5-speed 2WDReference
LP gas 5-speed 2WDMay 31 - June 7, 1955Link: Nebraska Tractor Test 545 fileReference
Belt fuel use (max)28.4 l/hourReference
Drawbar performanceReference
Fuel use28.4 l/hourReference
Gear 3 used for power test.Reference
Max pull3217 kgReference
Gear 1 used for pull test.Reference
Gasoline 5-speed 2WDJune 8 - 15, 1955Link: Nebraska Tractor Test 547 fileReference
Belt fuel use (max)22.7 l/hourReference
Fuel use17.4 l/hourReference
Max pull3047 kgReference
Diesel 5-speed 2WDNovember 1 - 7, 1955Link: Nebraska Tractor Test 568 fileReference
Belt fuel use (max)15.5 l/hourReference
Fuel use17.8 l/hourReference
Max pull3326 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
