Tractor · 1964Unverified

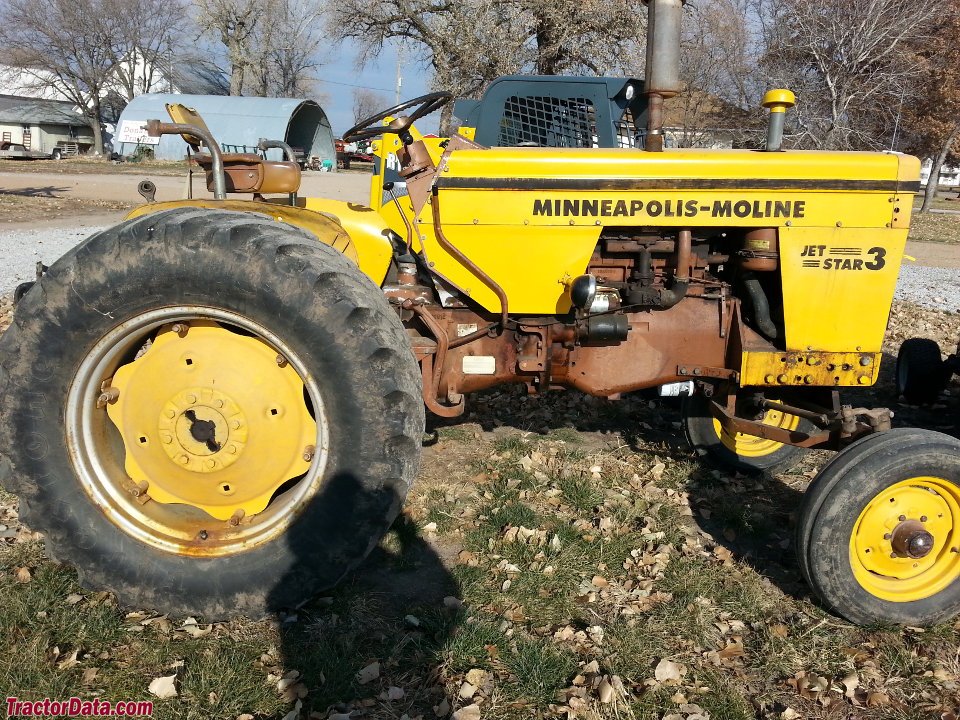

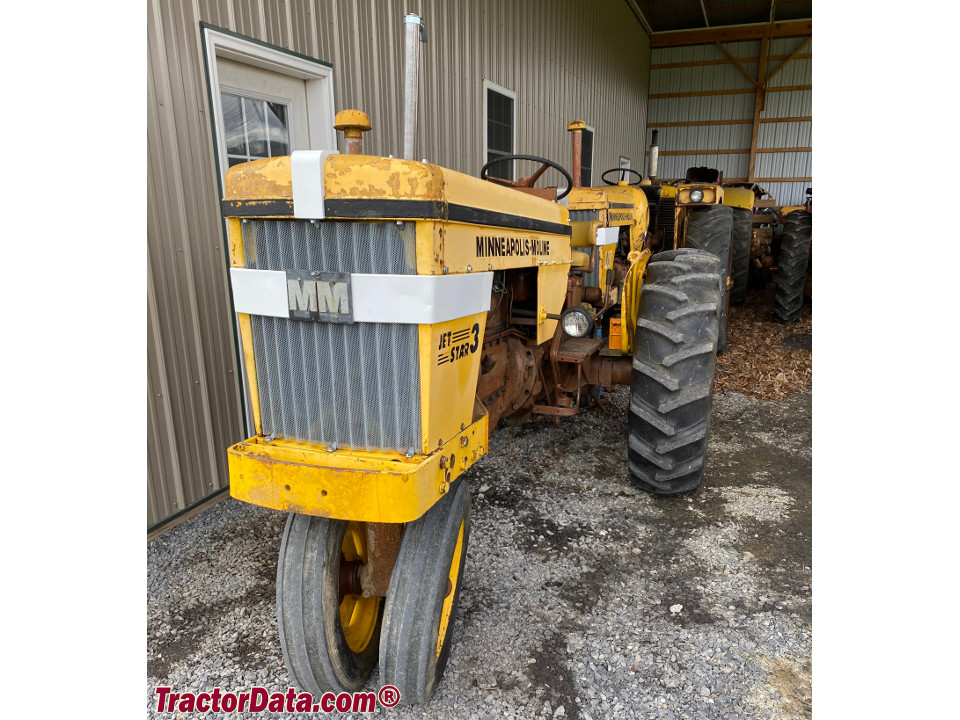

Minneapolis-Moline Jet Star 3
Minneapolis-Moline Jet Star 3 — Row-Crop tractor · 44 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
44 hp
Weight
3630 to 3830 pounds
Hover a source tag to verify
Overview
ManufacturerMinneapolis-MolineReference
Row-Crop tractorReference
Built in Minneapolis, Minnesota, USAReference
Two-wheel driveReference
SteeringmanualReference
SteeringpowerReference
Disc brakesReference
Open operator station.Reference
Engine
Minneapolis-Moline 3.4L 4-cyl gasolineReference
Minneapolis-Moline 3.4L 4-cyl dieselReference
Minneapolis-Moline 3.4L 4-cyl LP gasReference
Gas Fuel tank53.0 LReference
Diesel Fuel tank53.0 LReference
LP-gas Fuel tank83.3 LReference
Minneapolis-MolineReference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement3.4 LReference
Bore/Stroke92 x 127 mmReference
Air cleaneroil bathReference
Rated RPM1750Reference
Firing order1-3-4-2Reference
Starter volts12Reference
Oil capacity5.7 LReference
Coolant capacity11.4 LReference
dieselReference
LP gasReference
Transmission
10-speed two-speed power shiftReference
5-speed gearReference
TransmissionAmpli-TorcReference
Typetwo-speed power shiftReference
Gears10 forward and 2 reverseReference
TypegearReference
Gears5 forward and 1 reverseReference
PTO & Hydraulics
PTO (claimed)32.8 kWReference
Rear TypeIIReference
Controldraft controlReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Rear PTO Type1000 (1.375)Reference
Engine RPM540@1525Reference
Engine RPM1000@1750Reference
Dimensions
Wheelbase221 cmReference
Weight3630 to 3830 poundsReference
Front tire5.50-16Reference
Rear tire12.4-28Reference
Ag front5.50-16Reference
Ag rear12.4-28Reference
Ag front7.50-16Reference
Length320 cmReference
Width178 cmReference
Height (steering wheel)167 cmReference
Height (exhaust)198 cmReference
Clearance (front axle)50 cmReference
Clearance (rear axle)49 cmReference
Front tread127 to 198 cmReference
Rear tread142 to 213 cmReference
Gasoline1646 kgReference
LP-gas1737 kgReference
Diesel1691 kgReference
Jet Star 3 Serial Number Location
Right side of tractor frame, near brake pedals.Reference
Jet Star 3 Serial Numbers
196328300001 (gas)Reference
196428301001 (gas)Reference
196528301985 (gas)Reference
196628302056 (gas)Reference
196728302844 (gas)Reference
196828303566 (gas)Reference
196928304801 (gas)Reference
197028305086 (gas)Reference
Final28305335 (gas)Reference
196428400001 (diesel)Reference
196528400051 (diesel)Reference
196628400201 (diesel)Reference
196728400386 (diesel)Reference
196828400467 (diesel)Reference
196928400527 (diesel)Reference
197028400602 (diesel)Reference
Final28400711 (diesel)Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemgeneratorReference
Batteries1 (gas/LP)Reference
Batteries2 (diesel)Reference
Battery volts12Reference
Speeds
With 12.4-28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
