Tractor · 1934Unverified
Minneapolis-Moline JT
Minneapolis-Moline JT — Row-Crop tractor · 14 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
14 hp
Max power
13.4 kW
Weight
1564 kg
Hover a source tag to verify
Overview
ManufacturerMinneapolis-MolineReference
Row-Crop tractorReference
Total built6,244Reference
Two-wheel driveReference

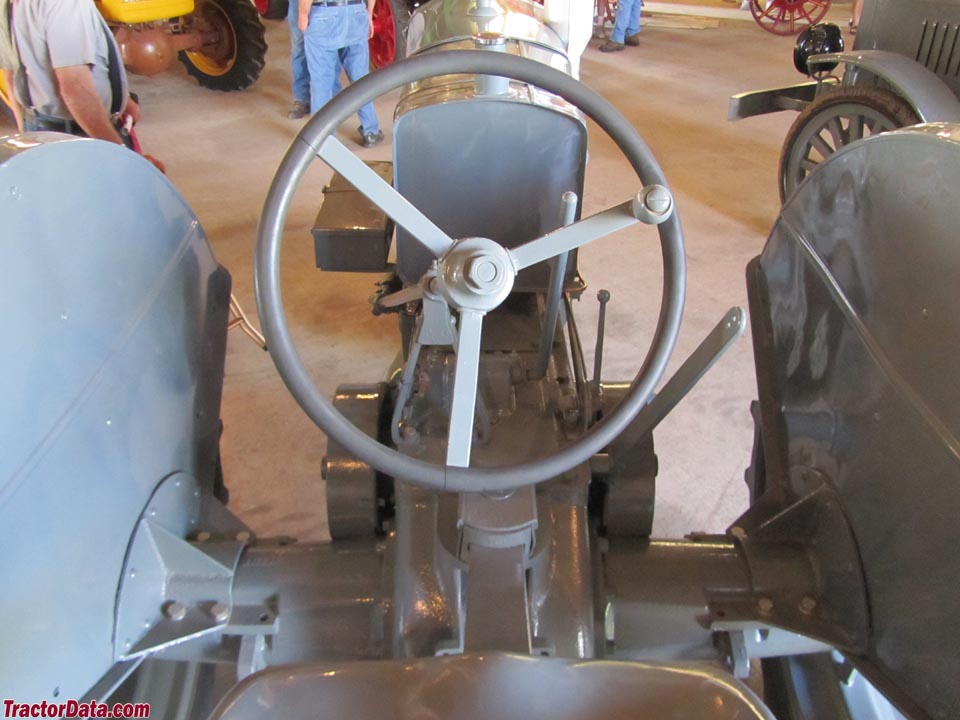

Manual steeringReference
Open operator station.Reference
Variants
JTrow-cropReference
JTSstandard frontReference
JTOorchardReference
Engine
Waukesha 3.2L 4-cyl gasolineReference
Fuel tank64.3 LReference
Aux. fuel7.6 LReference
Drawbar (claimed)10.4 kWReference
Belt (claimed)16.4 kWReference
Plows2-3Reference
Drawbar (tested)13.4 kWReference
Belt (tested)18.1 kWReference
WaukeshaReference
gasolineReference
4-cylinder 8-valveReference
liquid-cooledReference
Displacement3.2 LReference
Bore/Stroke92 x 121 mmReference
Fuel systemZenith carburetorReference
Air cleaneroil bathReference
Rated RPM1275Reference
Firing order1-2-4-3Reference
Coolant capacity18.9 LReference
Belt power (max)18.1 kWReference
Max power13.4 kWReference
Transmission
5-speed gearReference
TypegearReference
Gears5 forward and 1 reverseReference
Clutchdry discReference
Dimensions
Weight1564 kgReference
Front tire25x4.50Reference
Rear tire50x8Reference
Ag front25x4.50 (steel)Reference
Ag rear50x8 (steel)Reference
Ag front5.25x16Reference
Ag rear9.00x36Reference
Length293 cmReference
Width200 cmReference
Height142 cmReference
Test results
Gasoline 5-speed 2WDApril 17 - 29, 1935Link: Nebraska Tractor Test 233 fileReference
Belt fuel use (max)9.1 l/hourReference
Drawbar performanceReference
Gear 3 used for power test.Reference
Max pull1264 kgReference
Gear 1 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
