Tractor · 1936Unverified

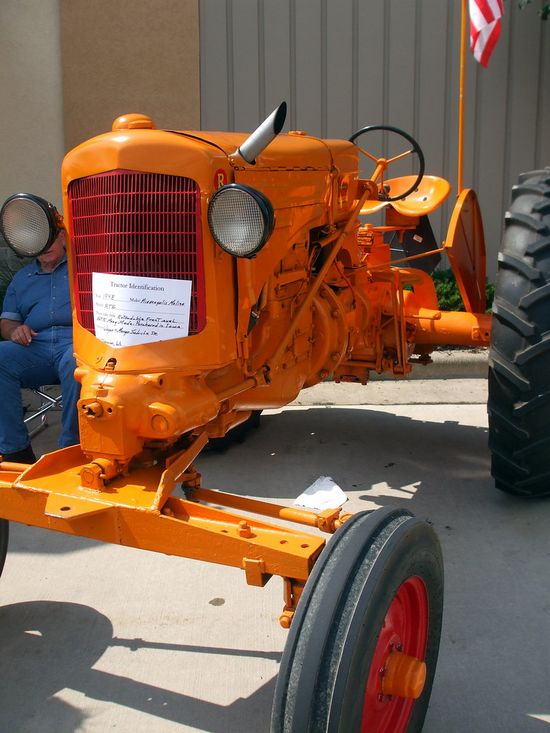

Minneapolis-Moline JTS
Minneapolis-Moline JTS — Standard-tread tractor · 14 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
14 hp
Weight
1564 kg
Hover a source tag to verify
Overview
ManufacturerMinneapolis-MolineReference
Standard-tread tractorReference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Variants
JTrow-cropReference
JTSstandard frontReference
JTOorchardReference
Engine
Waukesha 3.2L 4-cyl gasolineReference
Fuel tank64.3 LReference
Aux. fuel7.6 LReference
Drawbar (claimed)10.4 kWReference
Belt (claimed)16.4 kWReference
Plows2-3Reference
WaukeshaReference
gasolineReference
4-cylinder 8-valveReference
liquid-cooledReference
Displacement3.2 LReference
Bore/Stroke92 x 121 mmReference
Fuel systemZenith carburetorReference
Air cleaneroil bathReference
Rated RPM1275Reference
Firing order1-2-4-3Reference
Coolant capacity18.9 LReference
Transmission
5-speed gearReference
TypegearReference
Gears5 forward and 1 reverseReference
Clutchdry discReference
Dimensions
Weight1564 kgReference
Front tire25x4.50Reference
Rear tire50x8Reference
Ag front25x4.50 (steel)Reference
Ag rear50x8 (steel)Reference
Length316 cmReference
Width145 cmReference
Height142 cmReference
Capacities
Diameter39 cmReference
Width16 cmReference
RPM730Reference
Speed914.40 meters/minReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
