Tractor · 1963Unverified

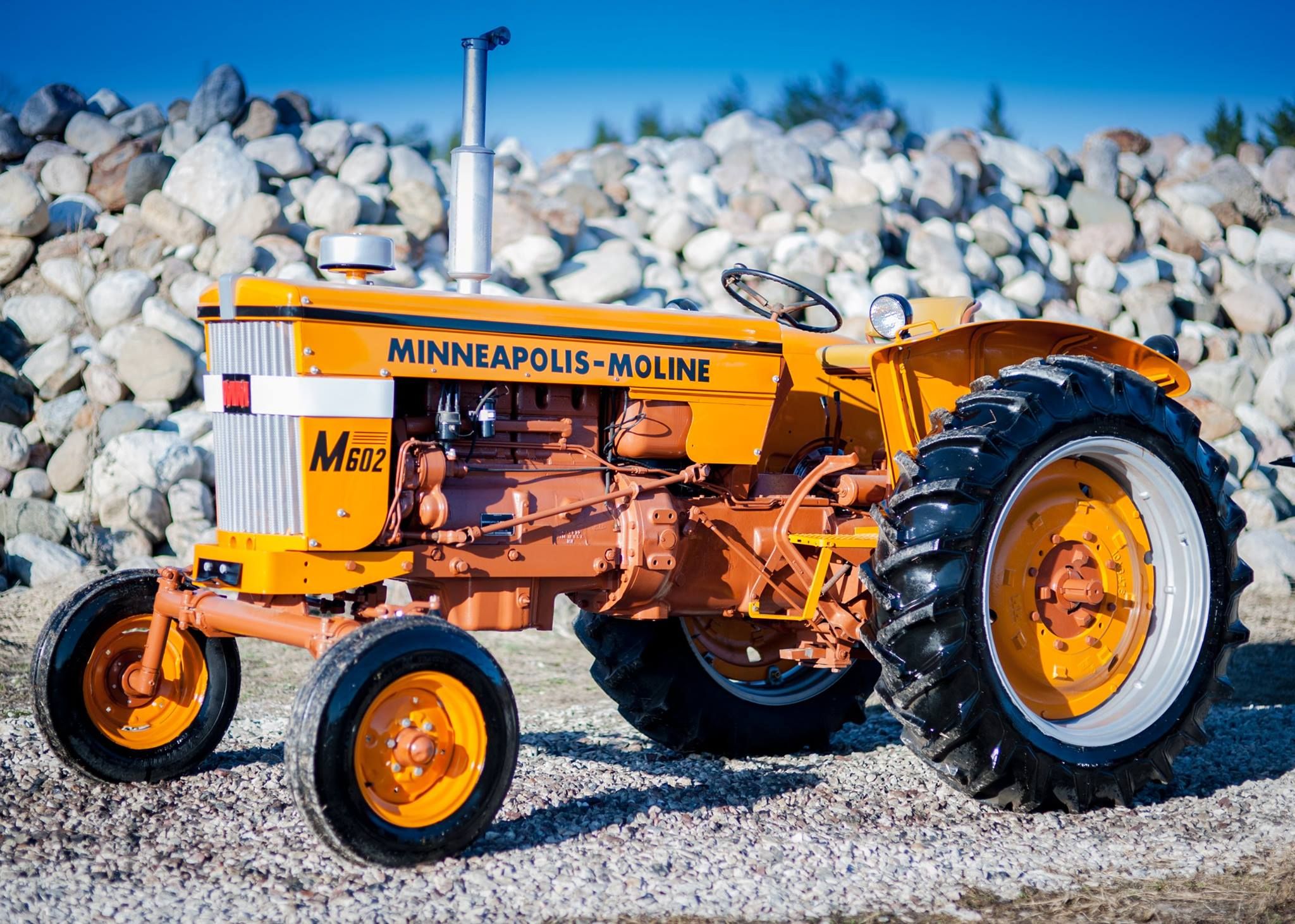

Minneapolis-Moline M-602 Standard
Minneapolis-Moline M-602 Standard — Standard-tread tractor · 64 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
64 hp
Weight
6400 to 6600 pounds
Hover a source tag to verify
Overview
ManufacturerMinneapolis-MolineReference
Standard-tread tractorReference
Built in Minneapolis, Minnesota, USAReference
Two-wheel driveReference
Power steeringReference
Open operator station.Reference
Variants
M-602UtricycleReference
M-602Ewide-frontReference
M-602Nsingle frontReference
M-602SstandardReference
M-6044WDReference
Engine
Minneapolis-Moline 5.5L 4-cyl gasolineReference
Minneapolis-Moline 5.5L 4-cyl dieselReference
Minneapolis-Moline 5.5L 4-cyl LP gasReference
Gas Fuel tank85.2 LReference
Diesel Fuel tank85.2 LReference
LP-gas Fuel tank117.3 LReference
Diesel Drawbar (claimed)38.0 kWReference
Gas Drawbar (claimed)38.8 kWReference
LP-gas Drawbar (claimed)40.3 kWReference
Minneapolis-Moline 336-4Reference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement5.5 LReference
Bore/Stroke117 x 127 mmReference
Air cleaneroil bathReference
Rated RPM1500Reference
Minneapolis-MolineReference
dieselReference
LP gasReference
Transmission
10-speed two-speed power shiftReference
TransmissionAmpli-TorcReference
Typetwo-speed power shiftReference
Gears10 forward and 2 reverseReference
PTO & Hydraulics
Diesel PTO (claimed)47.7 kWReference
Gas PTO (claimed)48.5 kWReference
LP-gas PTO (claimed)49.2 kWReference
Rear PTOindependentReference
Rear PTO Type540Reference
Dimensions
Wheelbase228 cmReference
Weight6400 to 6600 poundsReference
Front tire7.50-16Reference
Rear tire18.4-34Reference
Standard tires (ag)Front: 7.50-16. Rear: 18.4-34Reference
Length355 cmReference
Width213 cmReference
Height (steering wheel)182 cmReference
Clearance (front axle)40 cmReference
Clearance (rear axle)66 cmReference
Clearance (drawbar)38 cmReference
Front tread129 cmReference
Rear tread170 cmReference
Gas Operating2903 kgReference
Diesel Operating2971 kgReference
LP-gas Operating2993 kgReference
M-602 Standard Serial Numbers
Location:Right side of tractor frame, near brake pedals.Reference
196326600001 (gas)Reference
196426601276 (gas)Reference
Final26602957 (gas)Reference
196226700001 (diesel)Reference
196326700743 (diesel)Reference
Final26701772 (diesel)Reference
FAQ: How to read a serial number table.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
