Tractor · 1963Unverified

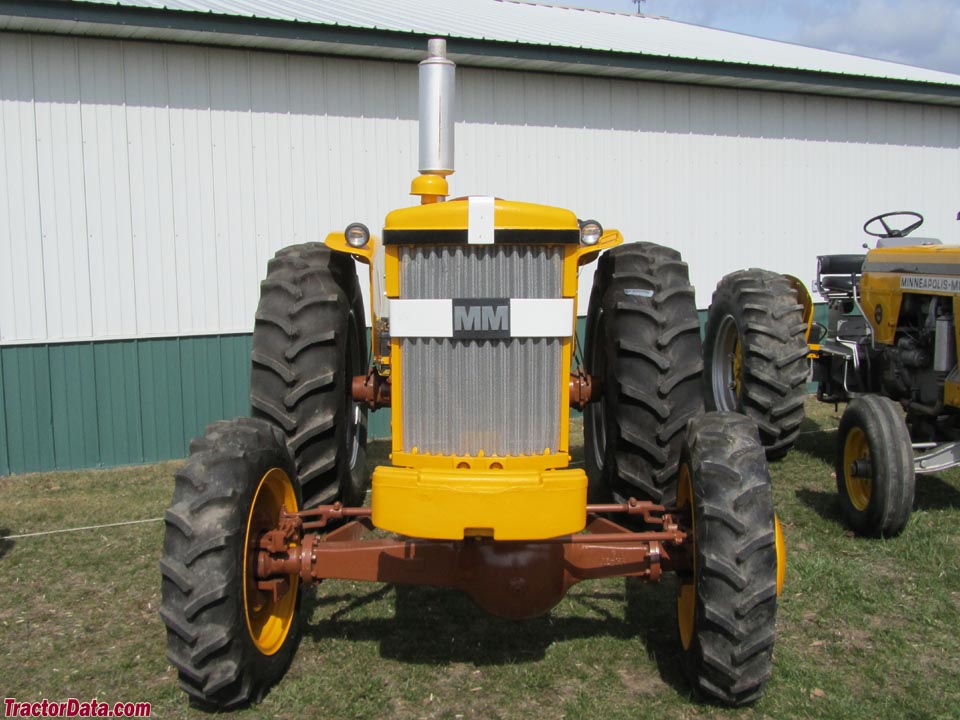

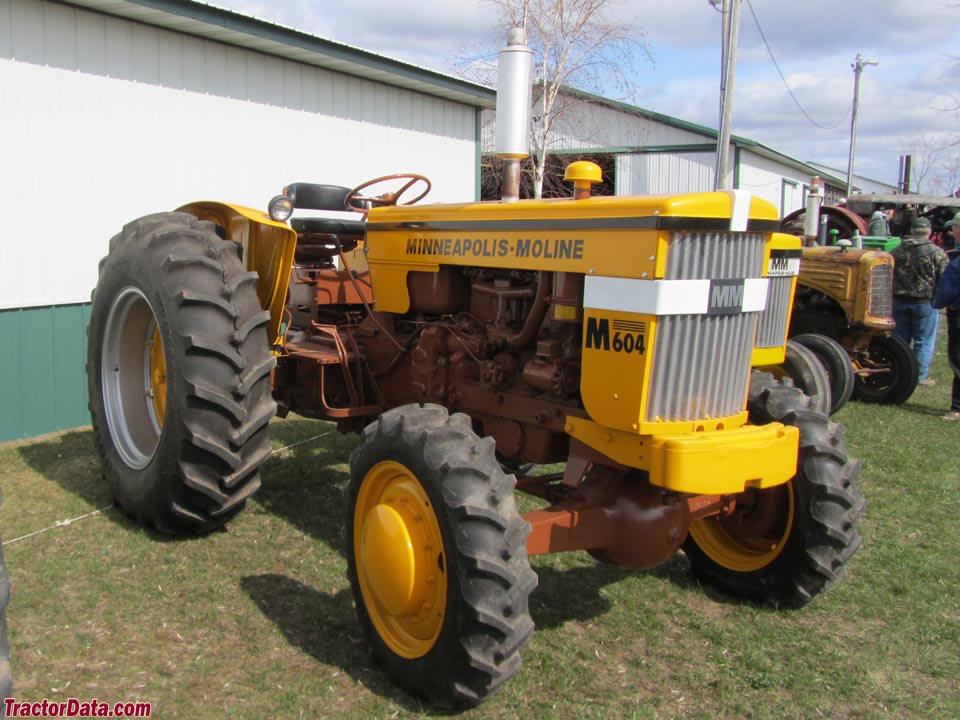

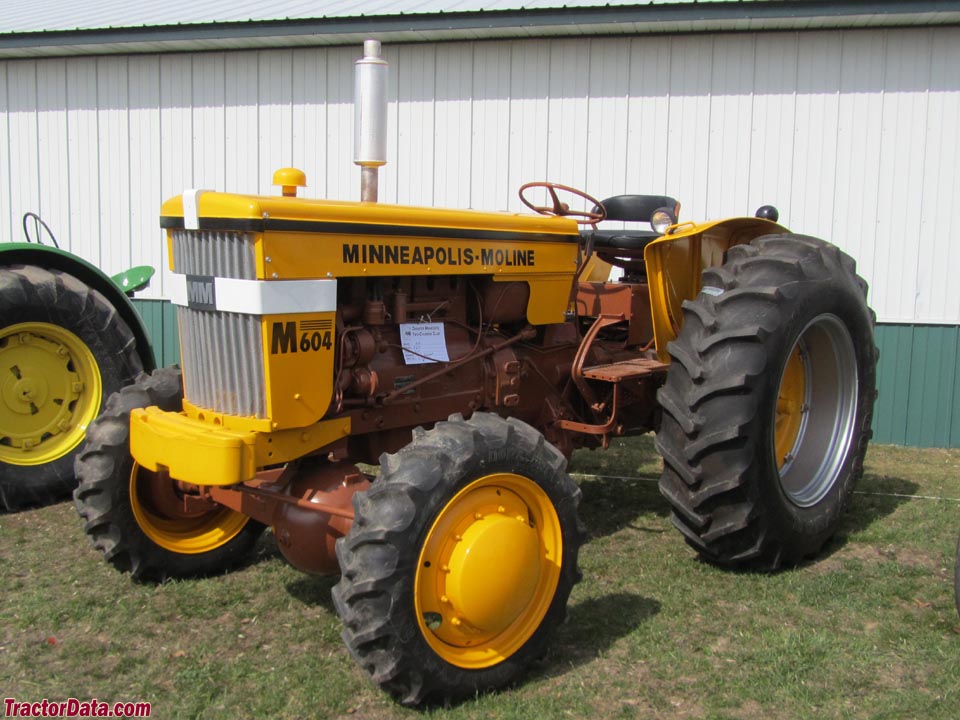

Minneapolis-Moline M-604
Minneapolis-Moline M-604 — Standard-tread tractor · 64 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
64 hp
Weight
7220 to 7420 pounds
Hover a source tag to verify
Overview
ManufacturerMinneapolis-MolineReference
Standard-tread tractorReference
Built in Minneapolis, Minnesota, USAReference
Original price was $7,000 in 1964Reference
Four-wheel driveReference
Power steeringReference
Open operator stationReference
Variants
M-602UtricycleReference
M-602Ewide-frontReference
M-602Nsingle frontReference
M-602SstandardReference
M-6044WDReference
Engine
Minneapolis-Moline 5.5L 4-cyl gasolineReference
Minneapolis-Moline 5.5L 4-cyl dieselReference
Minneapolis-Moline 5.5L 4-cyl LP gasReference
Gas Fuel tank85.2 LReference
Diesel Fuel tank85.2 LReference
LP-gas Fuel tank117.3 LReference
Minneapolis-Moline 336-4Reference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement5.5 LReference
Bore/Stroke117 x 127 mmReference
Air cleaneroil bathReference
Rated RPM1500Reference
Minneapolis-MolineReference
dieselReference
LP gasReference
Transmission
10-speed two-speed power shiftReference
TransmissionAmpli-TorcReference
Typetwo-speed power shiftReference
Gears10 forward and 2 reverseReference
PTO & Hydraulics
Diesel PTO (claimed)47.7 kWReference
Gas PTO (claimed)48.5 kWReference
LP-gas PTO (claimed)49.2 kWReference
Rear TypeIIReference
Rear PTOindependentReference
Rear PTO Type540Reference
Dimensions
Wheelbase214 cmReference
Weight7220 to 7420 poundsReference
Front tire9.50-24Reference
Rear tire18.4-34Reference
Ag front9.50-24Reference
Ag rear18.4-34Reference
Length355 cmReference
Width213 cmReference
Height (steering wheel)182 cmReference
Clearance (front axle)26 cmReference
Clearance (rear axle)66 cmReference
Clearance (drawbar)38 cmReference
Front tread172 to 208 cmReference
Rear tread170 cmReference
Gas Operating3274 kgReference
Diesel Operating3343 kgReference
LP-gas Operating3365 kgReference
Minneapolis-Moline M-604 attachments
front-end loaderReference
M-604 Serial Number Location
Right side of tractor frame, next brake pedals.Reference
M-604 Serial Numbers
196326800001 (gas)Reference
196426800051 (gas)Reference
Final26800053 (gas)Reference
196326900001 (diesel)Reference
196426900051 (diesel)Reference
Final26900099 (diesel)Reference
FAQ: How to read a serial number table.Reference
Speeds
With 18.4-34 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
