Tractor · 1964Unverified

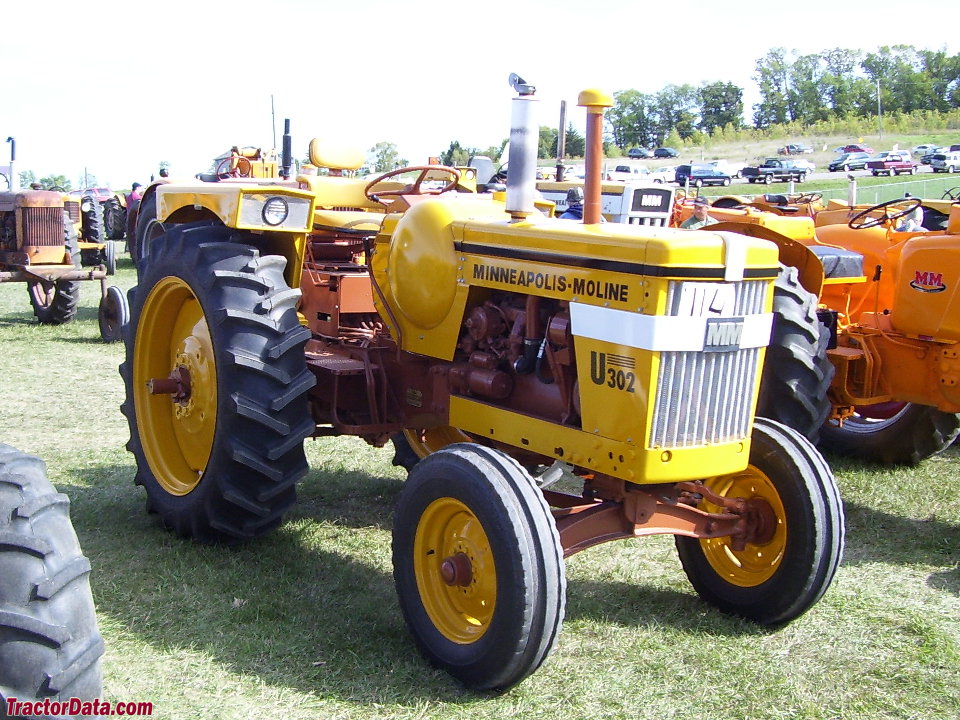

Minneapolis-Moline U-302
Minneapolis-Moline U-302 — Row-Crop tractor · 56 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
56 hp
Max power
35.0 kW
Weight
2494 kg
Hover a source tag to verify
Overview
ManufacturerMinneapolis-MolineReference
Row-Crop tractorReference
Built in Minneapolis, Minnesota, USAReference
Original price was $6,000 in 1970Reference
Two-wheel driveReference
Power steeringReference
Disc brakesReference
Open operator station.Reference
Variants
U-302UtricycleReference
U-302Ewide frontReference
U-302Nsingle-frontReference
Engine
Minneapolis-Moline 3.6L 4-cyl gasolineReference
Minneapolis-Moline 3.6L 4-cyl LP gasReference
Minneapolis-Moline 3.9L 4-cyl dieselReference
Gas Fuel tank85.2 LReference
LP-gas Fuel tank117.3 LReference
Plows4Reference
Drawbar (tested)36.1 kWReference
Minneapolis-Moline 220A-4Reference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement3.6 LReference
Bore/Stroke95 x 127 mmReference
Air cleanerdryReference
Compression7.6:1Reference
Rated RPM1900Reference
Starter volts12Reference
Oil capacity5.7 LReference
Coolant capacity11.4 LReference
LP gasReference
Compression9.8:1Reference
Minneapolis-MolineReference
dieselReference
Displacement3.9 LReference
Bore/Stroke98 x 127 mmReference
Rated RPM1800Reference
Power at rated engine speed41.6 kWReference
Max power35.0 kWReference
Power at rated engine speed41.5 kWReference
Max power36.1 kWReference
Transmission
10-speed two-speed power shiftReference
TransmissionAmpli-TorcReference
Typetwo-speed power shiftReference
Gears10 forward and 2 reverseReference
Clutch279.4mm dry discReference
Oil capacity37.9 LReference
PTO & Hydraulics
Gas PTO (claimed)41.6 kWReference
LP-gas PTO (claimed)41.5 kWReference
Diesel PTO (claimed)38.8 kWReference
PTO (tested)41.6 kWReference
Rear TypeII/IReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Rear PTO Type1000 (1.375)Reference
Engine RPM540@1525Reference
Engine RPM1000@1750Reference
Power at rated PTO speed36.2 kWReference
Power at rated PTO speed36.0 kWReference
Dimensions
Wheelbase213 cmReference
Weight2494 kgReference
Front tire5.50-16Reference
Rear tire13.6-24Reference
Ag front5.50-16Reference
Ag rear13.6-24Reference
Ag front6.00-16Reference
Ag front7.50-16Reference
Ag rear15.5-38Reference
Length355 cmReference
Width229 cmReference
Height (steering wheel)185 cmReference
Clearance (front axle)54 cmReference
Clearance (rear axle)66 cmReference
Front tread132 to 193 cmReference
Rear tread142 to 243 cmReference
Test results
NTTL 862: gasoline 10-speed 2WDReference
NTTL 863: LP-gas 10-speed 2WDReference
Gasoline 10-speed 2WDApril 10 - 24, 1964Link: Nebraska Tractor Test 862 fileReference
PTO performanceReference
Fuel use18.5 l/hourReference
Fuel use15.9 l/hourReference
Drawbar performanceReference
Fuel use18.2 l/hourReference
Gear 2H used for power test.Reference
Max pull3364 kgReference
Gear 1L used for pull test.Reference
LP-gas 10-speed 2WDApril 13 - 24, 1964Link: Nebraska Tractor Test 863 fileReference
Fuel use22.0 l/hourReference
Fuel use21.2 l/hourReference
Max pull3408 kgReference
Speeds
With 13.6-38 rear tires.Reference
