Tractor · 1938Unverified

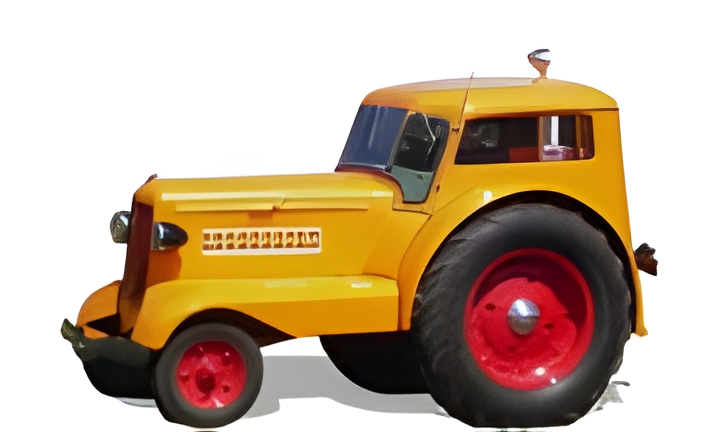

Minneapolis-Moline UDLX Comfortractor
Minneapolis-Moline UDLX Comfortractor — Model U Series · 36 hp. Reference specifications; pending source verification.
The Minneapolis-Moline UDLX Comfortractor is a tractor with a rating of approximately 36 horsepower, positioning it at the lower end of its class. It was manufactured from 1938 to 1941. The tractor is equipped with a 4-cylinder petrol liquid-cooled engine and a two-wheel drive system paired with a 5-speed gearbox. Its listed operating weight is 2903 kg, and it is suitable for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
36 hp
Weight
2903 kg
Catalogue coverage
Variants represented
2
Richest spec table
37 rows
Recorded power
36 hp
Recorded weight
2903 kg
Transmissions
5-speed synchronized gear
Production years
1938-1941
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerMinneapolis-MolineReference
Total built125Reference
Original price was $2,155 in 1938Reference
The Minneapolis-Moline UDLX was the first production farm tractor with cab. Designed to operate as both a tractor and automobile, the UDLX was equipped with a 40 mile-per-hour road gear.Reference
Two-wheel driveReference
Manual steeringReference
Mechanical drum brakesReference
Cab standard with heat, radio, and second seat.Reference
Variants
UTUrow-crop frontReference
UTSstandard-frontReference
UDLXComfotractor with cabReference
UTOXComfotractor roadsterReference
UTILindustrial with shuttle shiftReference
UBimproved operator platformReference
Engine
Minneapolis-Moline 4.6L 4-cyl gasolineReference
Drawbar (claimed)20.1 kWReference
Plows3-4Reference
Minneapolis-MolineReference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement4.6 LReference
Bore/Stroke108 x 127 mmReference
Compression5.6:1Reference
Rated RPM1275Reference
Starter volts6Reference
Transmission
5-speed synchronized gearReference
Typesynchronized gearReference
Gears5 forward and 1 reverseReference
PTO & Hydraulics
PTO (claimed)26.8 kWReference
Dimensions
Wheelbase205 cmReference
Weight2903 kgReference
Front tire6.00x16Reference
Ag front6.00x16Reference
Length358 cmReference
Width195 cmReference
Height238 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
