Tractor · 1952Unverified

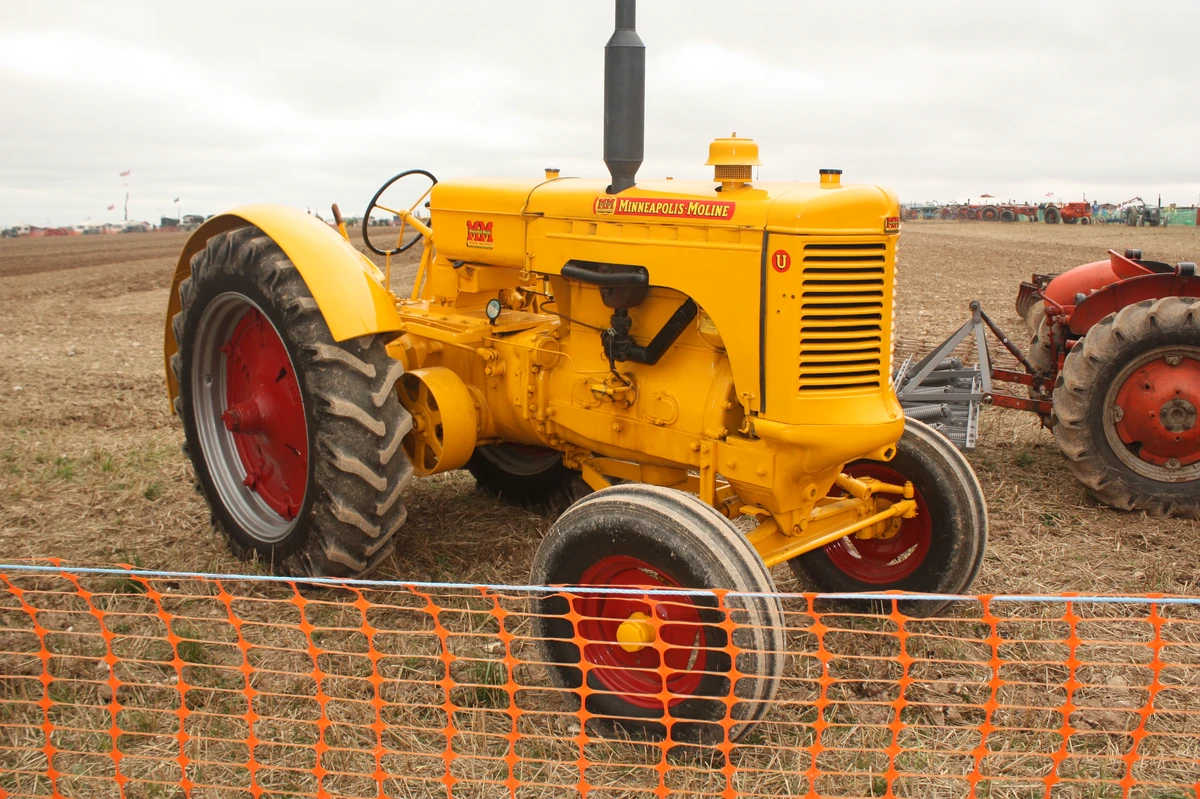

Minneapolis-Moline UDU
Minneapolis-Moline UDU — Model U Series. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Weight
2585 kg
Hover a source tag to verify
Overview
ManufacturerMinneapolis-MolineReference
Row-Crop tractorReference
Built in Minneapolis, Minnesota, USAReference
Total built30Reference
Two-wheel driveReference
Open operator station.Reference
Variants
UTUrow-crop tricycleReference
UTErow-crop wide frontReference
UTNrow-crop single frontReference
UDUdiesel row-cropReference
UTS-Ddiesel standardReference
UTChigh-cropReference
UTSstandard-frontReference
UDLXComfotractor with cabReference
UOPNComfotractor roadsterReference
UTILindustrial with shuttle shiftReference
UTIL-MmilitaryReference
Engine
Minneapolis-Moline 4.6L 4-cyl dieselReference
Minneapolis-Moline D283-4Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.6 LReference
Bore/Stroke108 x 127 mmReference
Transmission
5-speed unsynchronized gearReference
Typeunsynchronized gearReference
Gears5 forward and 1 reverseReference
Clutchdry discReference
Dimensions
Wheelbase223 cmReference
Weight2585 kgReference
Length354 cmReference
Width214 cmReference
Height179 cmReference
UDU Serial Numbers
Location:Serial number plate on the right side of the gear case.Reference
195204900001Reference
195304900002Reference
195404900030Reference
FAQ: How to read a serial number table.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
