Tractor · 1952Unverified

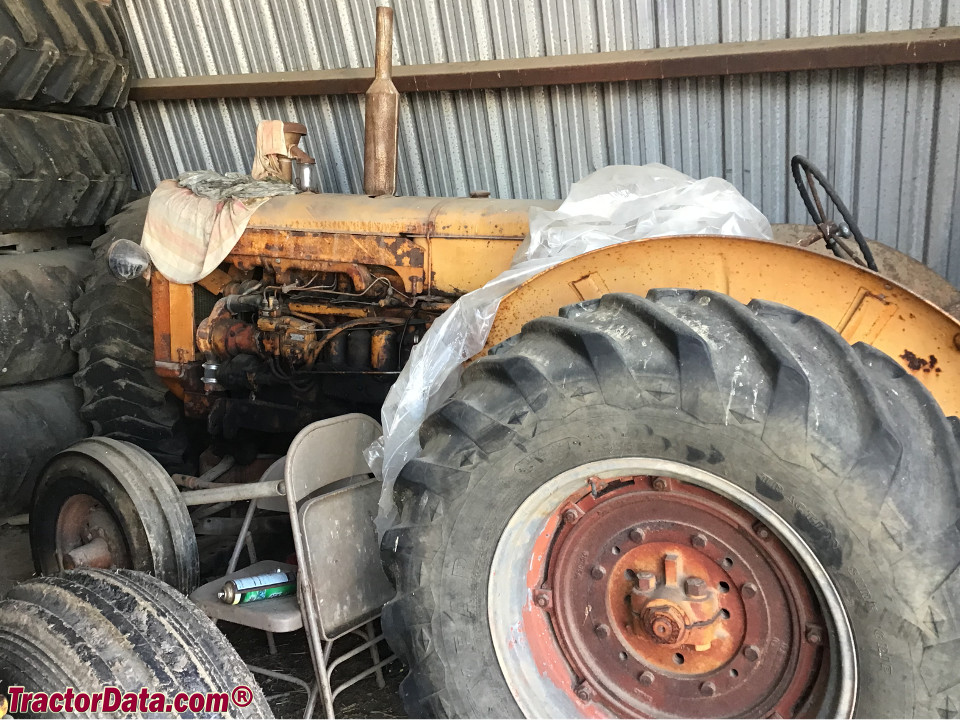

Minneapolis-Moline UTS-D
Minneapolis-Moline UTS-D — U Series · 40 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
40 hp
Hover a source tag to verify
Overview
ManufacturerMinneapolis-MolineReference
Standard-tread tractorReference
Built in Minneapolis, Minnesota, USAReference
Total built2404Reference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Variants
UTUrow-crop tricycleReference
UTErow-crop wide frontReference
UTNrow-crop single frontReference
UDUdiesel row-cropReference
UTS-Ddiesel standardReference
UTChigh-cropReference
UTSstandard-frontReference
UDLXComfotractor with cabReference
UOPNComfotractor roadsterReference
UTILindustrial with shuttle shiftReference
UTIL-MmilitaryReference
Engine
Minneapolis-Moline 4.6L 4-cyl dieselReference
Drawbar (claimed)29.8 kWReference
Minneapolis-Moline D283-4Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.6 LReference
Bore/Stroke108 x 127 mmReference
Rated RPM1300Reference
Transmission
5-speed gearReference
TypegearReference
Gears5 forward and 1 reverseReference
Clutchmechanical dry discReference
PTO & Hydraulics
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase205 cmReference
Front tire7.50-16Reference
Rear tire12.75-32Reference
Ag front7.50-16Reference
Ag rear12.75-32Reference
Length342 cmReference
Width191 cmReference
Height149 cmReference
UTS-D Serial Numbers
195205000001Reference
1953--------Reference
195405000019Reference
195505000955Reference
195605002105Reference
Final05002404Reference
FAQ: How to read a serial number table.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
