Tractor · 1949Unverified
Minneapolis-Moline ZAS

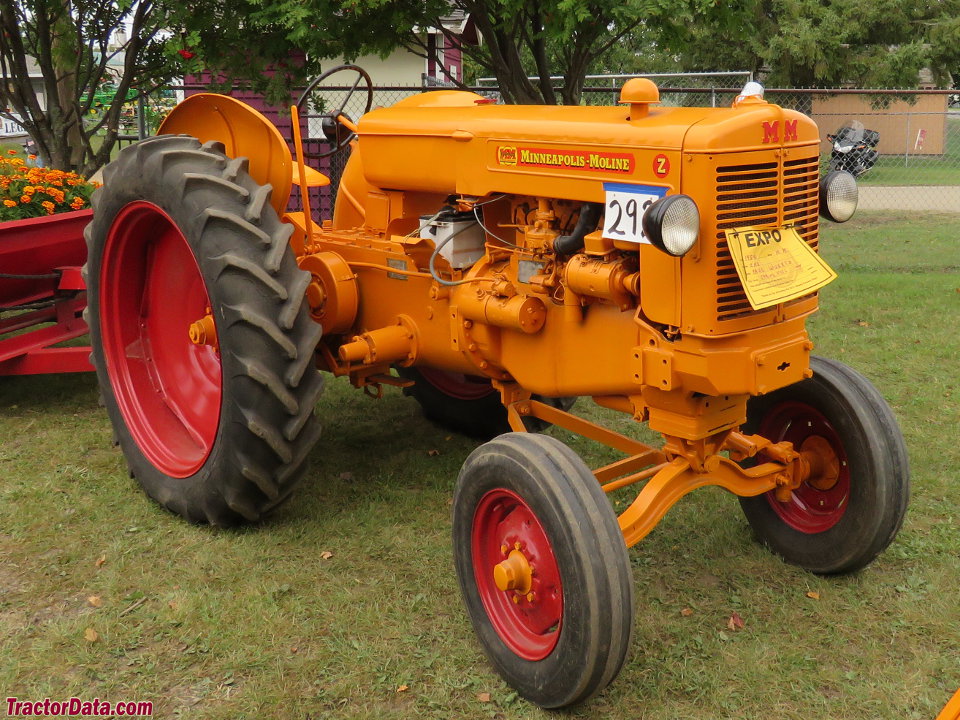

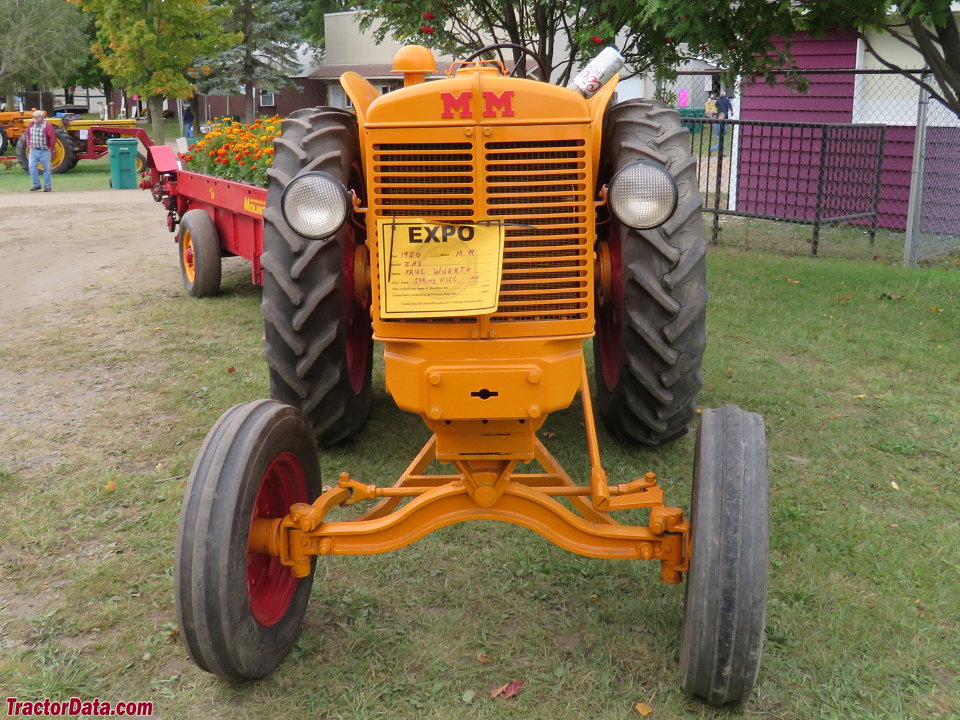

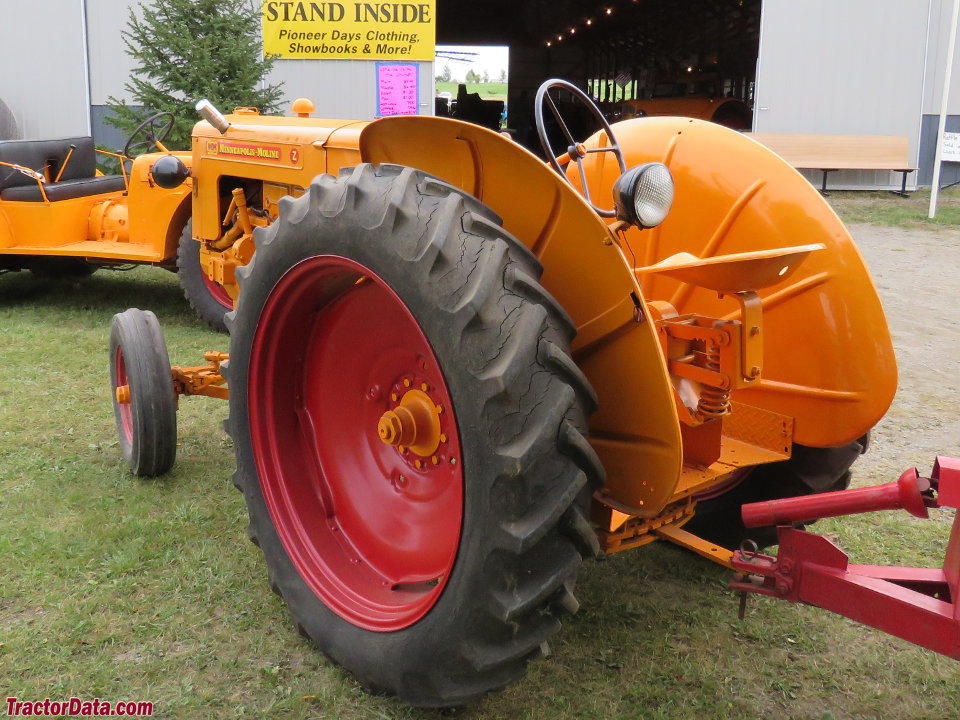

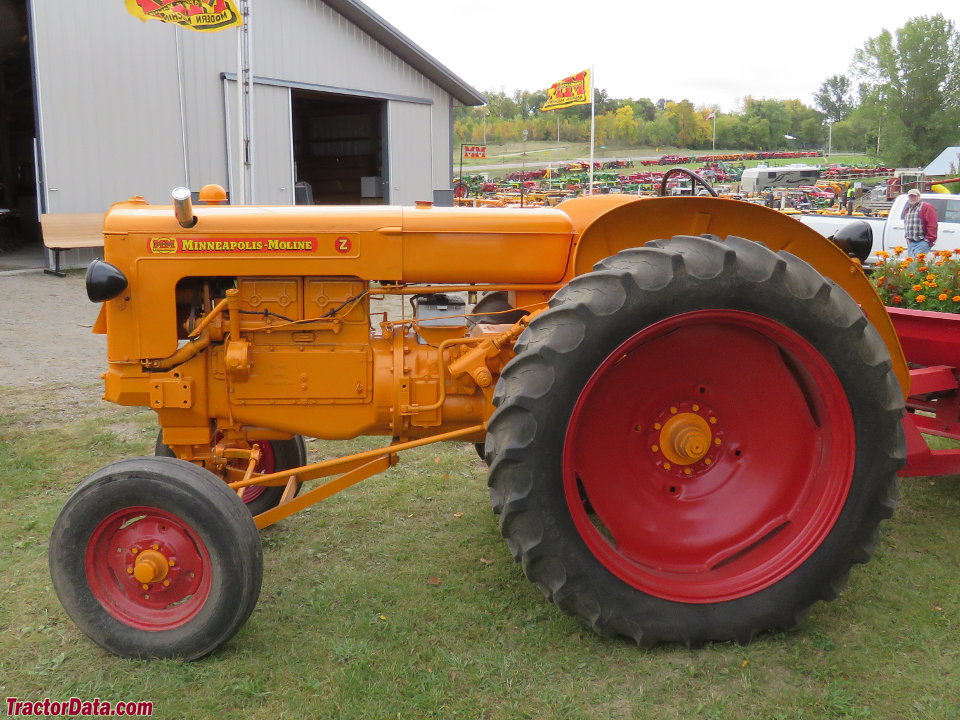

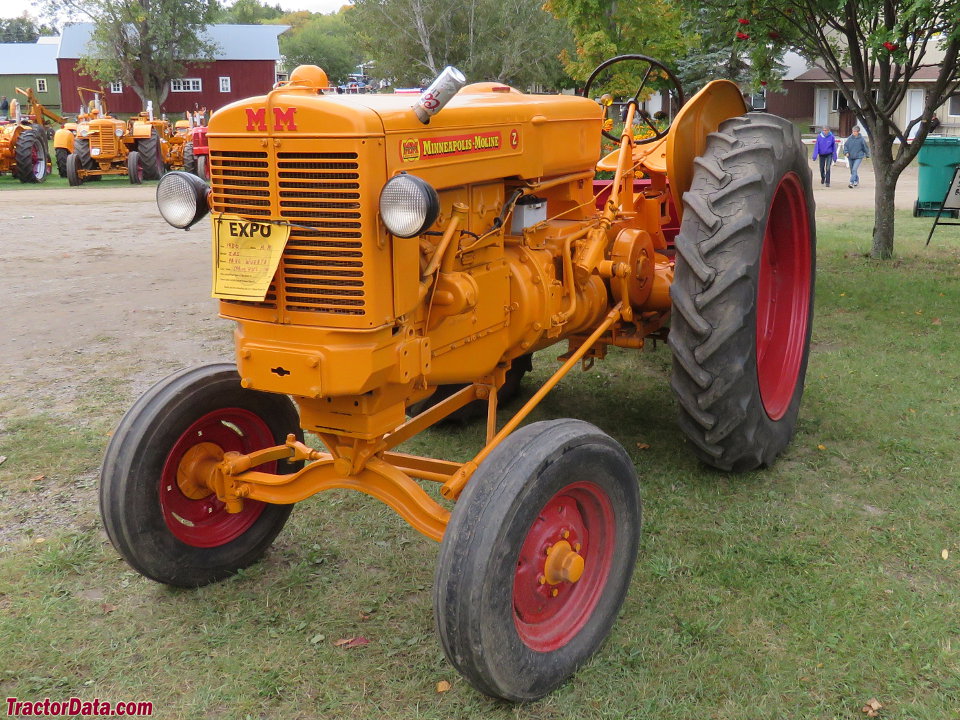

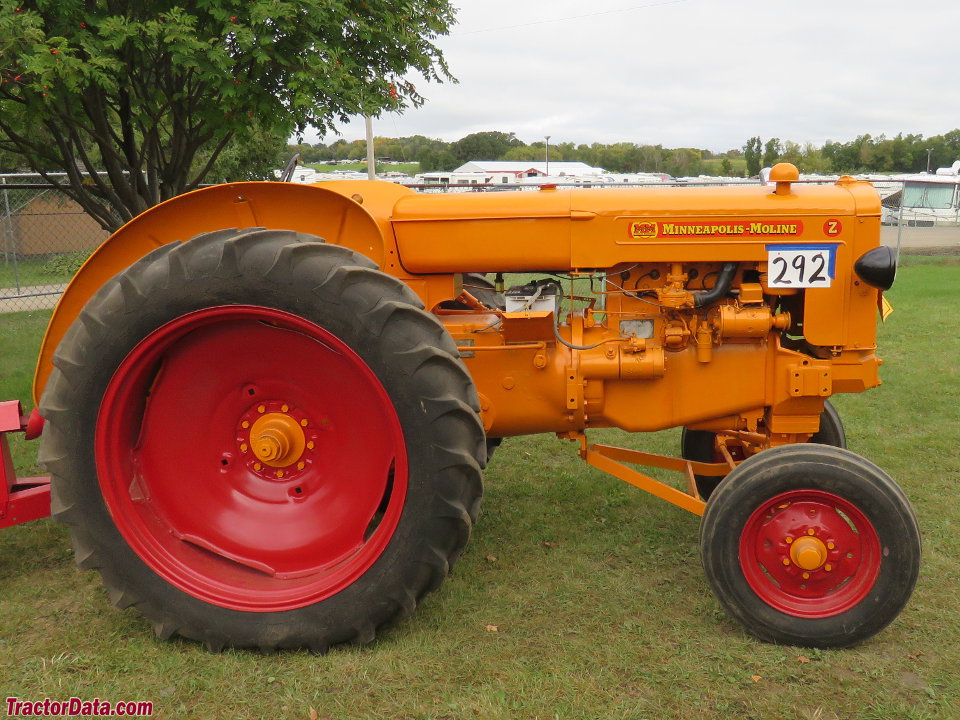

Minneapolis-Moline ZAS — Standard-tread tractor. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Weight
1701 kg
Hover a source tag to verify
Overview
ManufacturerMinneapolis-MolineReference
Standard-tread tractorReference
Built in Minneapolis, Minnesota, USAReference
Two-wheel driveReference
Final drivesbull gearReference
Manual steeringReference
Mechanical drum brakesReference

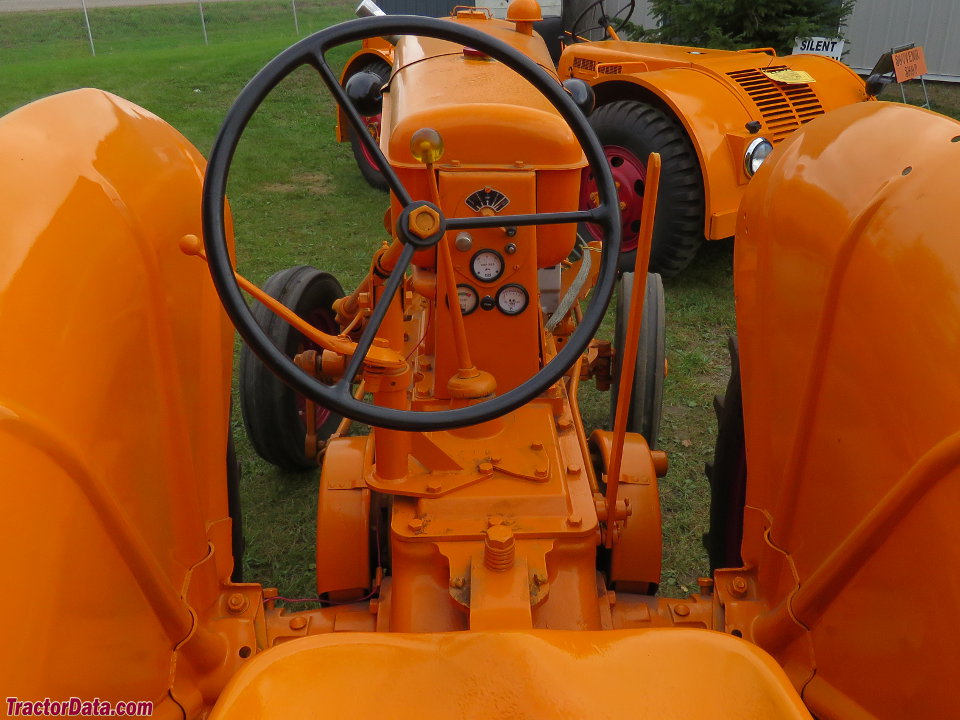

Open operator station.Reference
Variants
ZAUtricycle frontReference
ZASstandard frontReference
ZANsingle front wheelReference
ZAEadjustable wide frontReference
ZASIindustrialReference
Engine
Minneapolis-Moline 3.4L 4-cyl gasolineReference
Fuel tank71.9 LReference
Plows2-3 (14-inch)Reference
Minneapolis-Moline 206B-4Reference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement3.4 LReference
Bore/Stroke92 x 127 mmReference
Fuel systemcarburetorReference
Air cleaneroil bathReference
Compression6.19:1Reference
Rated RPM1500Reference
Firing order1-3-4-2Reference
Starter volts6Reference
Oil capacity6.6 LReference
Coolant capacity14.2 LReference
Transmission
5-speed unsynchronized gearReference
Typeunsynchronized gearReference
Gears5 forward and 1 reverseReference
Clutchdry discReference
PTO & Hydraulics
Rear PTO Type540Reference
Dimensions
Weight1701 kgReference
Front tire5.50x16Reference
Rear tire11x38Reference
Ag front5.50x16Reference
Ag rear11x38Reference
Length312 cmReference
Height (steering wheel)175 cmReference
Shipping weight1701 kgReference
Ground clearance31 cmReference
Front tread121 cmReference
Rear tread137 to 149 cmReference
ZAS Serial Number Location
Serial number plate on the left side of the ZAS tractor frame, ahead of operator platform.Reference
ZAS Serial Numbers
19490074900001Reference
19500075000001Reference
195000700001Reference
195100700481Reference
195200701286Reference
195300701911Reference
Final00702610Reference
FAQ: How to read a serial number table.Reference
Capacities
Diameter38 cmReference
Width17 cmReference
RPM786Reference
Speed944.88 meters/minReference
Electrical
GroundwheelbaseReference
Charging systemgeneratorReference
Battery volts6Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
