Tractor · 1953Unverified

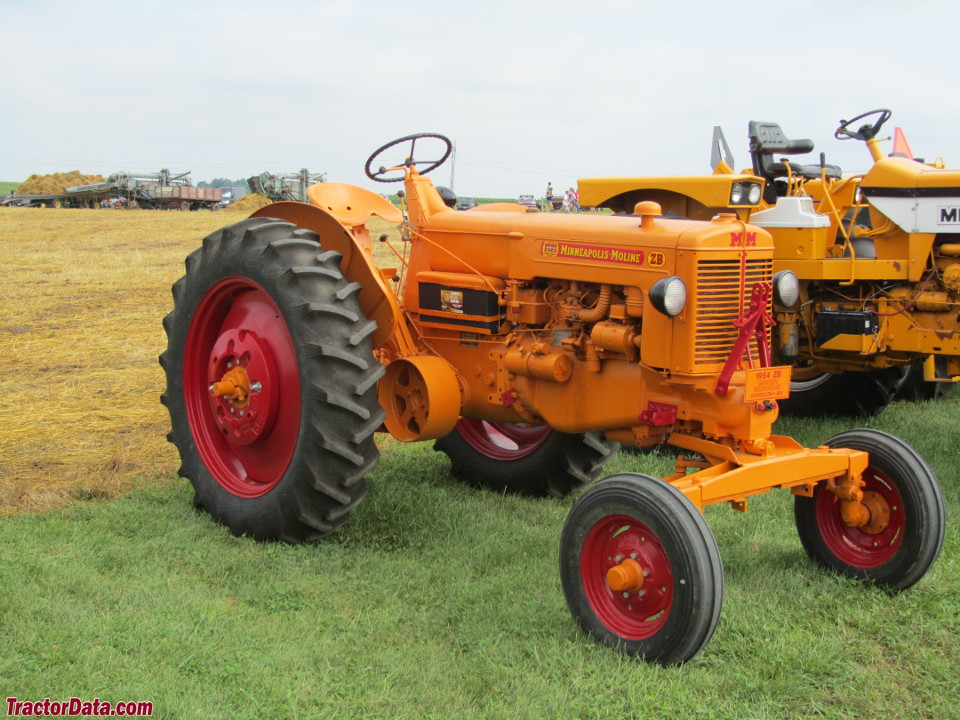

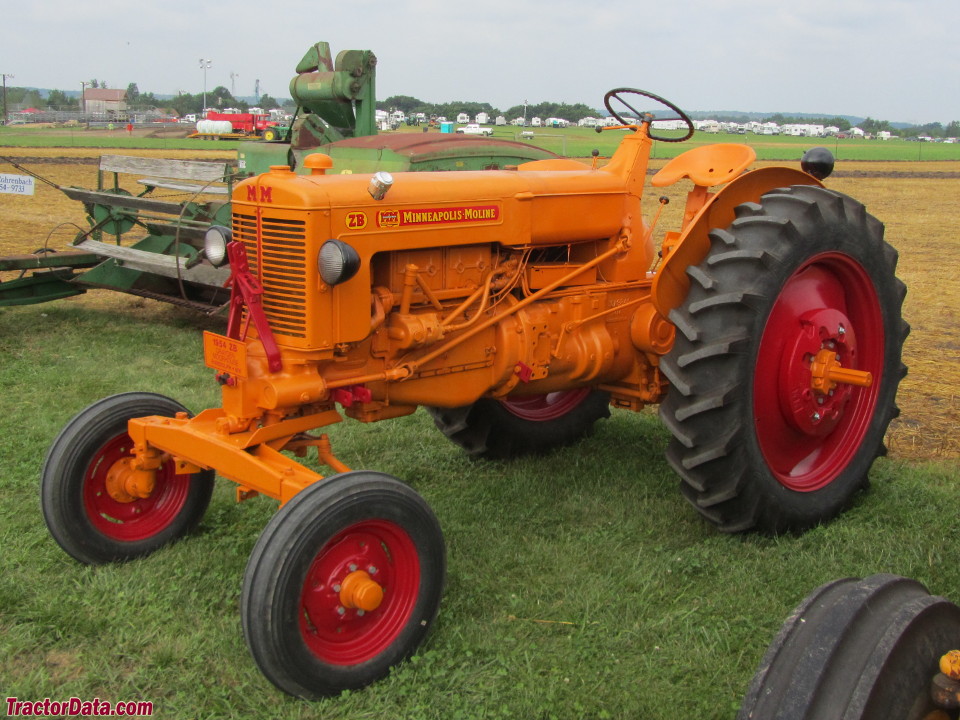

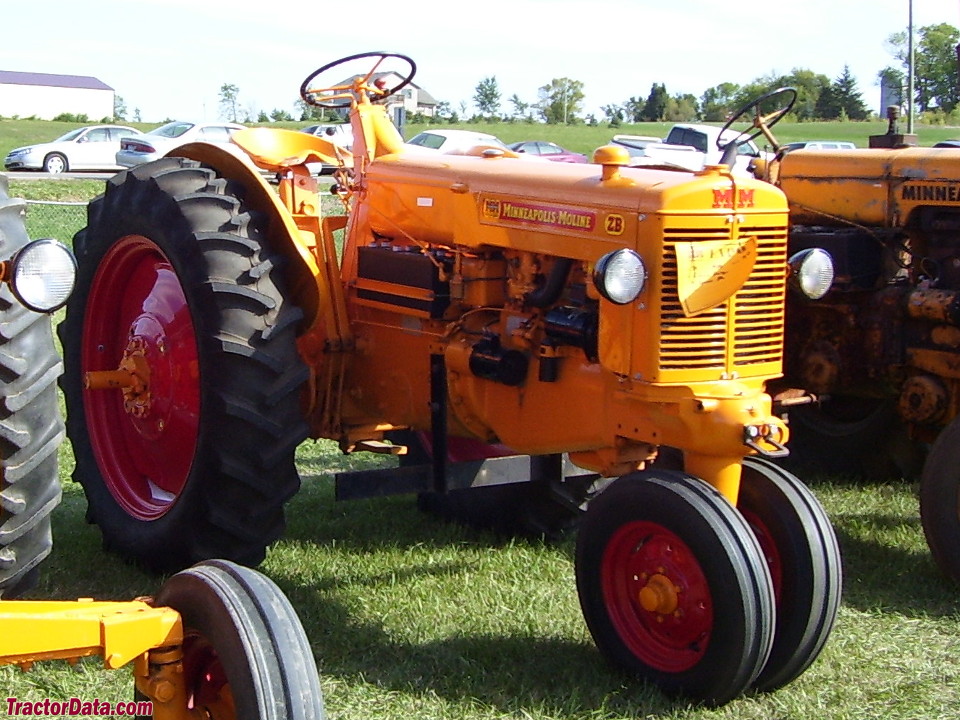

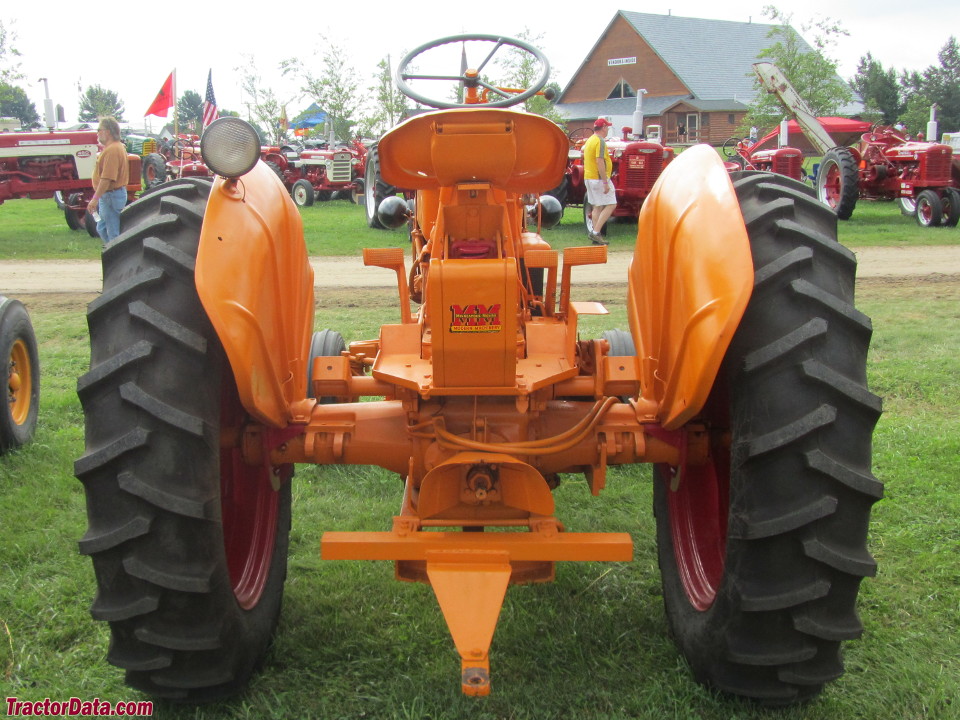

Minneapolis-Moline ZB
Minneapolis-Moline ZB — Row-Crop tractor. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Weight
3750 to 3900 pounds
Hover a source tag to verify
Overview
ManufacturerMinneapolis-MolineReference
Row-Crop tractorReference
Built in Minneapolis, Minnesota, USAReference
Two-wheel driveReference
Steeringmanual worm-and-sectorReference
Mechanical disc brakesReference
Open operator station.Reference
Variants
ZBUtricycle frontReference
ZBNsingle front wheelReference
ZBEadjustable wide frontReference
Engine
Minneapolis-Moline 3.4L 4-cyl gasolineReference
Plows3 (14-inch)Reference
Minneapolis-Moline 206B-4Reference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement3.4 LReference
Bore/Stroke92 x 127 mmReference
Rated RPM1500Reference
Starter volts12Reference
Transmission
5-speed unsynchronized gearReference
Typeunsynchronized gearReference
Gears5 forward and 1 reverseReference
Clutchdry discReference
PTO & Hydraulics
Rear PTOtransmissionReference
Rear PTO Type540Reference
Dimensions
Wheelbase208 cmReference
ZBE Wheelbase233 cmReference
Weight3750 to 3900 poundsReference
Front tire5.50x16Reference
Rear tire11x38Reference
Ag front5.50x16Reference
Ag front7.50x10 (ZBN)Reference
Ag rear11x38Reference
ZBN Length316 cmReference
ZBU Length320 cmReference
ZBE Length341 cmReference
Height187 cmReference
ZBU Shipping weight1701 kgReference
ZBE Shipping weight1769 kgReference
ZBE Front tread142 to 213 cmReference
Rear tread137 to 223 cmReference
ZB Serial Number Location
Serial number plate on the right side of the Minneapolis-Moline ZB, below the battery.Reference
ZB Serial Numbers
195306300001 (ZBE)Reference
195406300076 (ZBE)Reference
195506300307 (ZBE)Reference
Final06300501 (ZBE)Reference
195306200001 (ZBU)Reference
195406200958 (ZBU)Reference
195506202480 (ZBU)Reference
Final06203059 (ZBU)Reference
195406400001 (ZBN)Reference
195506400073 (ZBN)Reference
Final06400106 (ZBN)Reference
FAQ: How to read a serial number table.Reference
Capacities
Diameter38 cmReference
Width17 cmReference
RPM786Reference
Speed947.93 meters/minReference
Electrical
GroundpositiveReference
Charging systemgeneratorReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
