Tractor · 2006Unverified

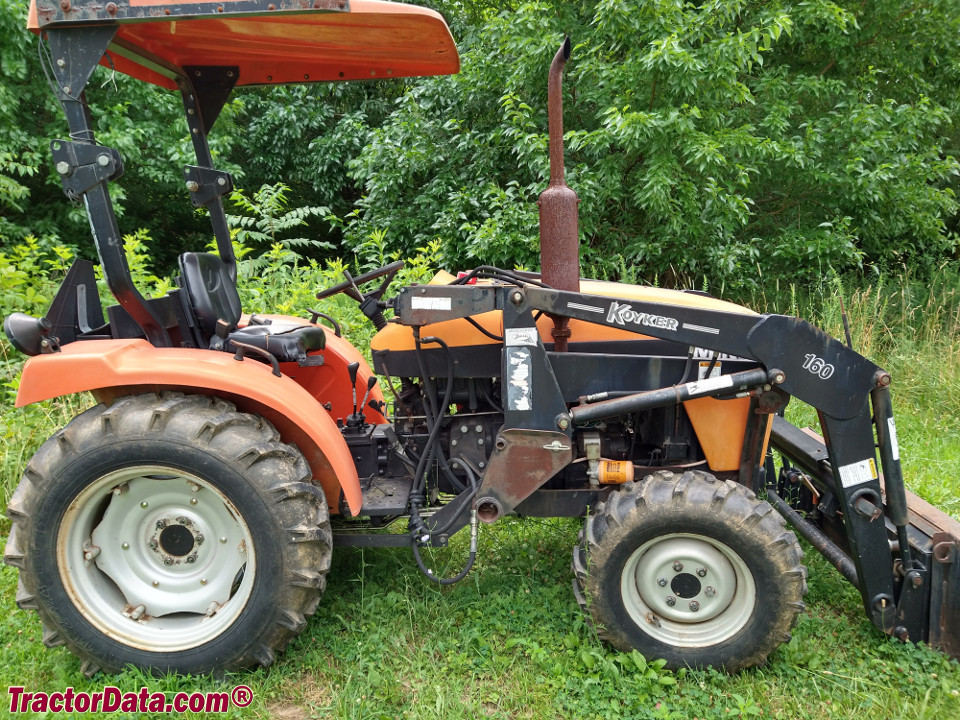

Minot 30
Minot 30 — Compact Utility tractor · 30 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Weight
3462 to 3925 pounds
Hover a source tag to verify
Overview
DistributorMinotReference
ManufacturerJinmaReference
Compact Utility tractorReference
Built in ChinaReference
Original price was $15,565 in 2006Reference
Four-wheel driveReference
SteeringpowerReference
Two-post folding ROPS with canopy.Reference
Engine
1.9L 4-cyl dieselReference
Engine (gross)22.4 kWReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.9 LReference
Bore/Stroke105 x 110 mmReference
Power (gross)22.4 kWReference
Rated RPM2000Reference
StarterelectricReference
Starter volts12Reference
Oil capacity6.0 LReference
Coolant capacity7.2 LReference
Transmission
8-speedReference
Gears8 forward and 2 reverseReference
Oil capacity18.5 LReference
Capacities
Fuel29.9 LReference
Front axle6.6 LReference
PTO & Hydraulics
Hydraulic system8.7 LReference
Capacity8.7 LReference
Total flow11.4 lpmReference
Rear TypeIReference
Rear lift (at 24"/610mm)498 kgReference
Rear PTOlive (two-stage clutch)Reference
Rear PTO Type540/720Reference
Dimensions
Wheelbase182 cmReference
Weight3462 to 3925 poundsReference
Front tire7.50-16Reference
Rear tire11.2-24Reference
Ag front7.50-16Reference
Ag rear11.2-24Reference
Length323 cmReference
Width143 cmReference
Height243 cmReference
Shipping weight1570 kgReference
Operating weight1780 kgReference
Ground clearance26 cmReference
Front tread124 cmReference
Rear tread100 to 139 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
