Tractor · 1977Unverified

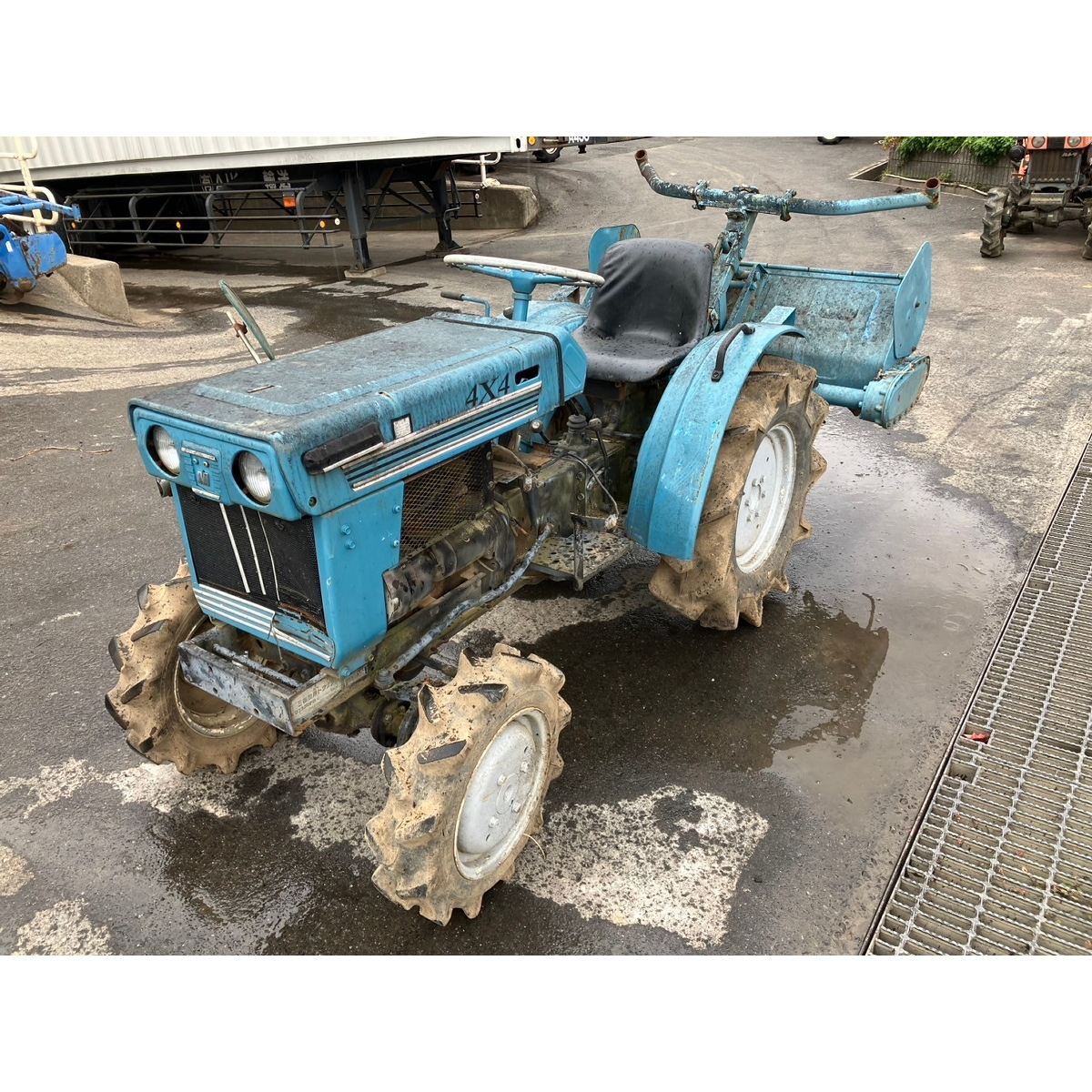

Mitsubishi D1300

Name: Mitsubishi D1300
Brand: Mitsubishi

Mitsubishi D1300 — Compact Utility tractor · 13 hp. Reference specifications; pending source verification.

The Mitsubishi D1300 is a compact tractor with a rated output of 13 hp, placing it in a smaller category within its class. Produced from 1977 to 1978, this model features a 2-cylinder diesel liquid-cooled engine, driving a 4-wheel drive system through a 6-speed gearbox, and has a listed weight of 1157 to 1301 pounds. The D1300 is designed for tasks covering up to 200 acres, requiring its specified specifications.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

13 hp

Weight

1157 to 1301 pounds

Catalogue coverage

Variants represented

Richest spec table

45 rows

Recorded power

13 hp

Recorded weight

524 kg

Transmissions

6-speed gear

Production years

1977-1978

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerMitsubishiReference

Compact Utility tractorReference

Two- or four-wheel driveReference

Open operator station.Reference

Variants

D1300FD4WDReference

Engine

Mitsubishi 0.7L 2-cyl dieselReference

Engine9.5 kWReference

Mitsubishi KE70Reference

dieselReference

2-cylinderReference

liquid-cooled inlineReference

Displacement0.7 LReference

Bore/Stroke73 x 80 mmReference

Power9.5 kWReference

Rated RPM2700Reference

StarterelectricReference

Starter volts12Reference

Transmission

6-speed gearReference

TypegearReference

Gears6 forward and 2 reverseReference

PTO & Hydraulics

Rear PTO Type540 (1.375)Reference

Engine RPM517@2700Reference

Engine RPM762@2700Reference

Engine RPM1249@2700Reference

Dimensions

2WD Wheelbase122 cmReference

4WD Wheelbase126 cmReference

Weight1157 to 1301 poundsReference

Front tire4.00-9Reference

2WD Rear tire8-16Reference

2WD Standard tires (ag)Front: 4.00-9. Rear: 8-16Reference

4WD Standard tires (ag)Front: 5-12. Rear: 8-16Reference

2WD Length188 cmReference

4WD Length194 cmReference

Width99 cmReference

2WD Height (steering wheel)112 cmReference

4WD Height (steering wheel)113 cmReference

2WD Weight524 kgReference

4WD Weight590 kgReference

2WD Ground clearance25 cmReference

4WD Ground clearance24 cmReference

2WD Front tread72 cmReference

4WD Front tread75 cmReference

Rear tread73/88 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
