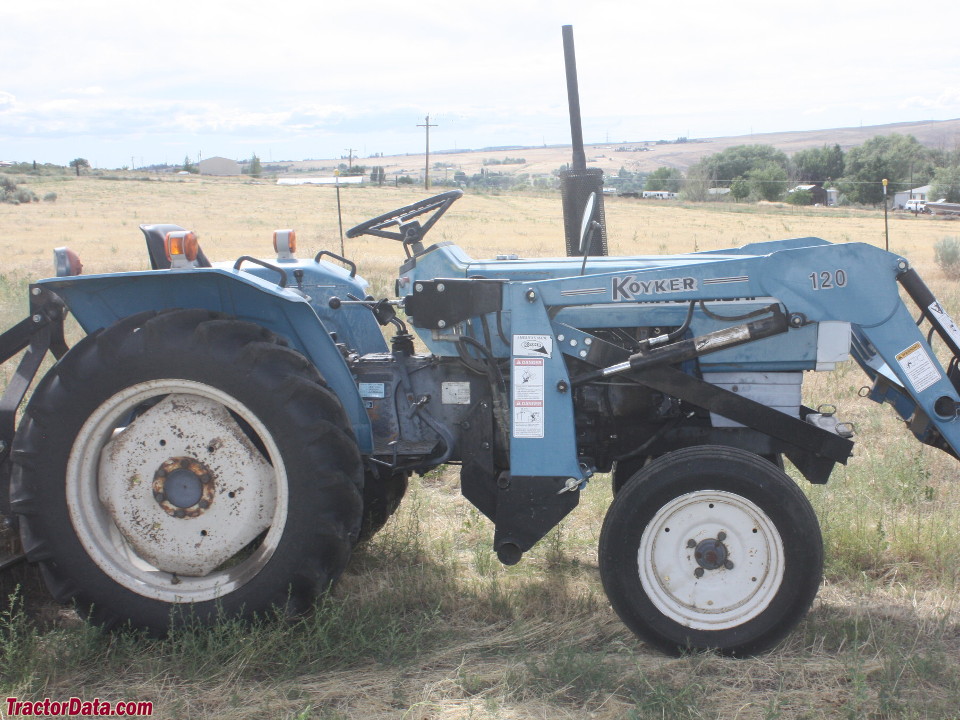

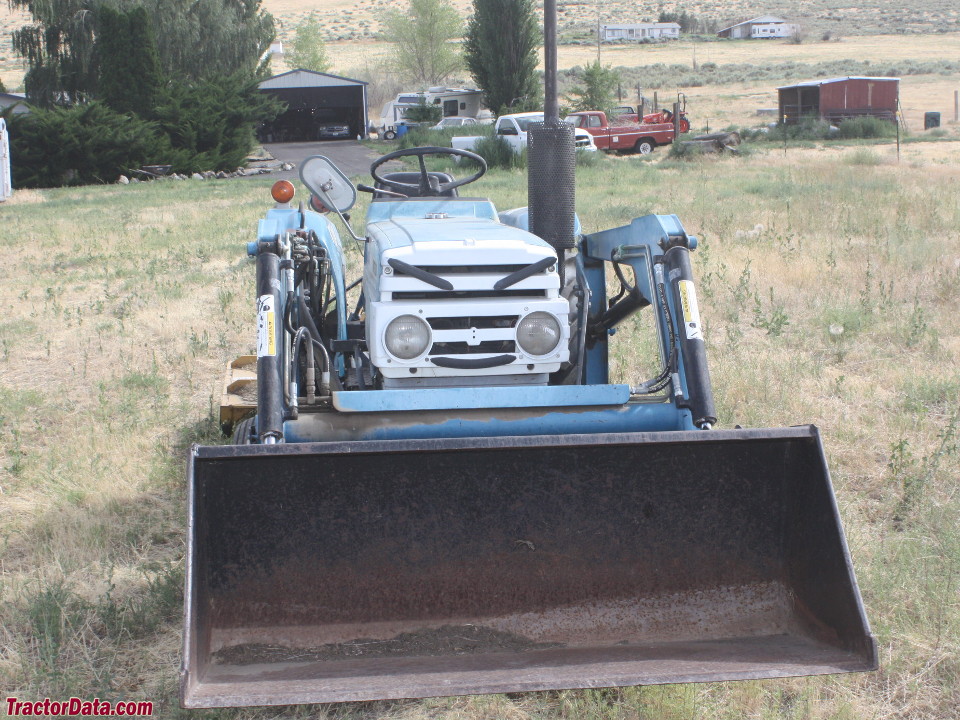

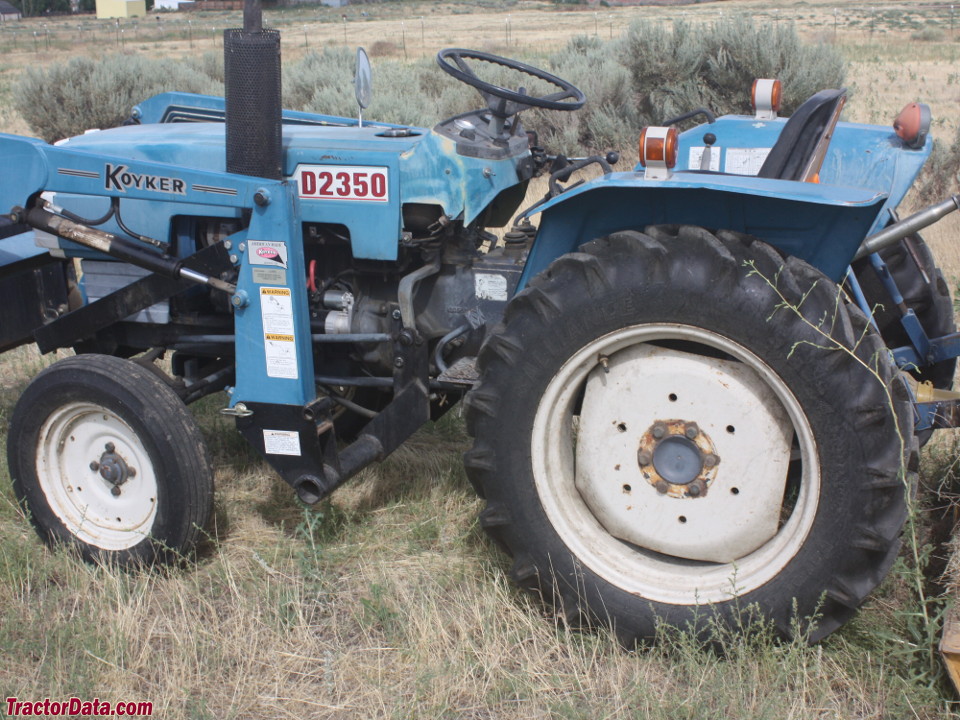

The Mitsubishi D2350 is a tractor with a rating of approximately 23 hp, positioning it at the lower end of its class. It was produced in 1977. The tractor features a 4-cylinder diesel liquid-cooled engine and four-wheel drive, paired with an 18-speed gearbox. It is suitable for operations on land up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
23 hp
Catalogue coverage
Variants represented
2
Richest spec table
26 rows
Recorded power
23 hp
Transmissions
18-speed gear
Production years
1977-1977
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerMitsubishiReference
Compact Utility tractorReference
Four-wheel driveReference
Open operator station.Reference
Engine
Mitsubishi 4-cyl dieselReference
Fuel tank18.9 LReference
Engine17.2 kWReference
MitsubishiReference
dieselReference
4-cylinderReference
liquid-cooledReference
Power17.2 kWReference
Starter volts12Reference
Oil capacity4.7 LReference
Coolant capacity5.7 LReference

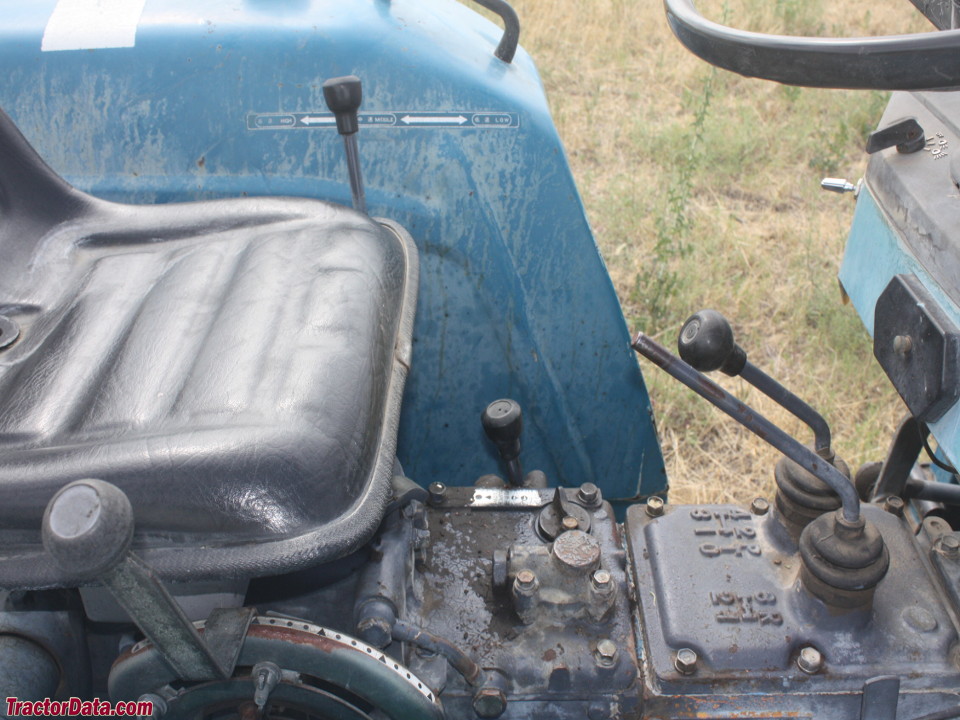

Transmission
18-speed gearReference
TypegearReference
Gears18 forward and 6 reverseReference
PTO & Hydraulics

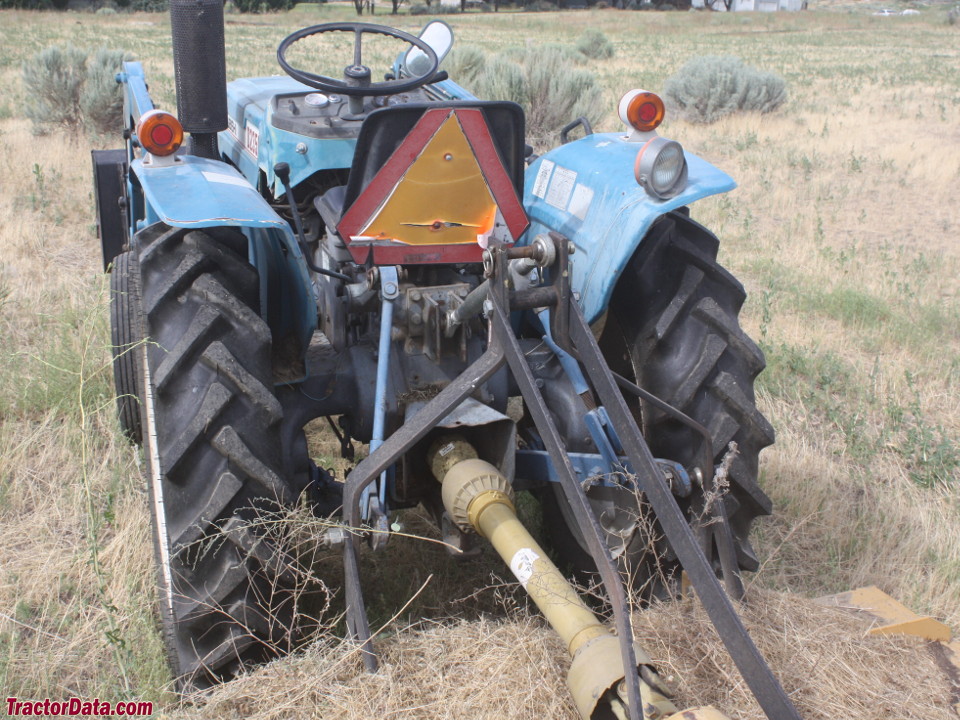

Rear PTO Type540 (1.375)Reference
Dimensions
Front tire5.00-15Reference
Rear tire9.5-24Reference
Ag front5.00-15Reference
Ag rear9.5-24Reference
D2350 Serial Number Location
Serial number plate on the right side of the D2350 transmission housing to the rear of the brake pedals.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
