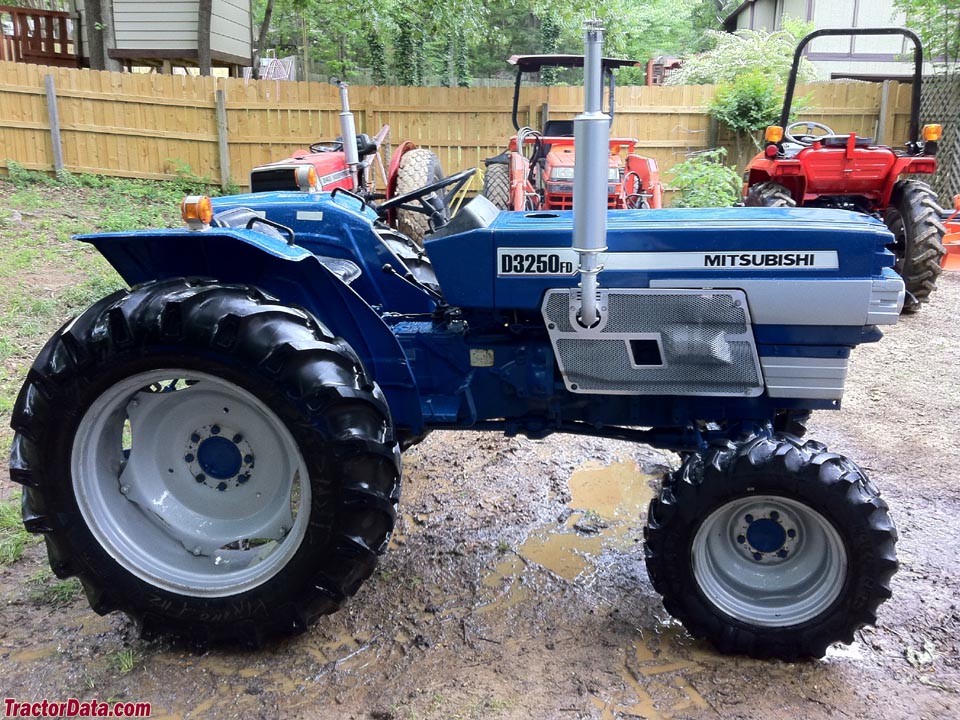

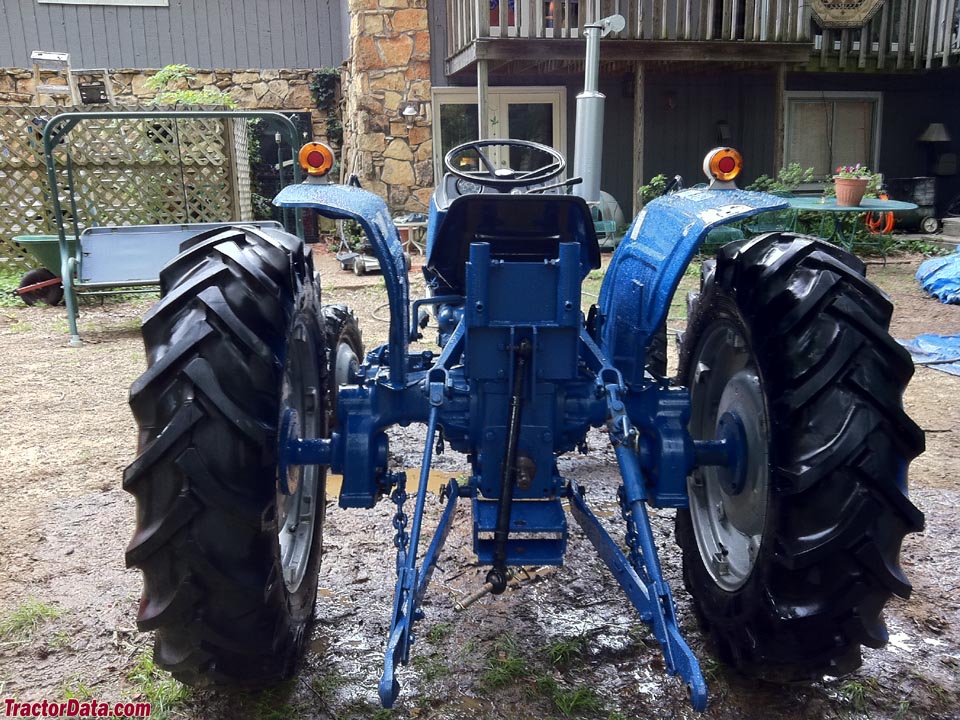

The Mitsubishi D3250 is a compact tractor rated at 32 hp, falling within its class. It was produced from 1978 to 1982 and features a 4-cylinder diesel liquid-cooled engine powering a four-wheel drive system with a 15-speed gearbox. The D3250 is suited to tasks involving up to 200 acres. Its specifications are detailed below.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
32 hp
Catalogue coverage
Variants represented
2
Richest spec table
23 rows
Recorded power
32 hp
Transmissions
15-speed
Production years
1978-1982
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerMitsubishiReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
ST3240Satoh 2WDReference
ST3240Satoh 4WDReference
D3250Mitsubishi 2WDReference
D3250FDMitsuibishi 4WDReference
Engine
Mitsubishi 1.5L 4-cyl dieselReference
Engine23.6 kWReference
Mitsubishi 4DQ3Reference
dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement1.5 LReference
Bore/Stroke77 x 80 mmReference
Power23.6 kWReference
Starter typeelectricReference
Transmission
15-speedReference
TransmissiongearReference
Gears15 forward and 3 reverseReference
PTO & Hydraulics
Rear TypeJIS1Reference
Rear PTO Type540 (1.375)Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
