Tractor · 2008Unverified

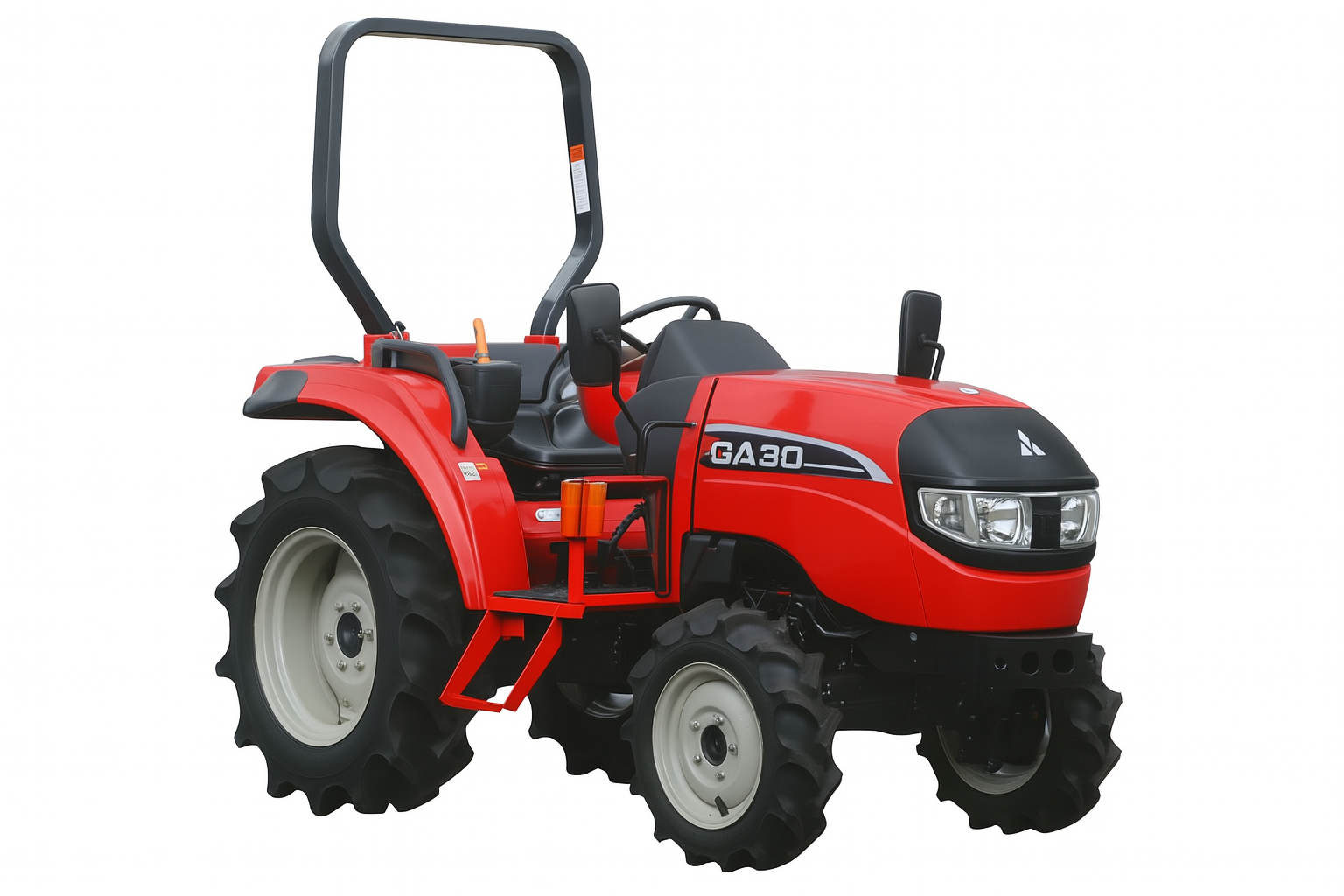

Mitsubishi GA30
Mitsubishi GA30 — GA Series · 31 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
31 hp
Weight
3340 to 3715 pounds
Hover a source tag to verify
Overview
ManufacturerMitsubishiReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS. Cab optional.Reference
Engine
Iseki 1.6L 3-cyl dieselReference
Fuel tank37.9 LReference
Engine23.0 kWReference
Iseki E3CGReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.6 LReference
Bore/Stroke87 x 92 mmReference
Power23.0 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
24-speedReference
32-speedReference
Gears24 forward and reverseReference
Clutchwet discReference
Gears32 forward and reverseReference
PTO & Hydraulics
Rear TypeIReference
Controlposition controlReference
Rear lift1788 kgReference
Rear PTO Type565/746/949/1210 (1.375)Reference
Dimensions
Wheelbase167 cmReference
Weight3340 to 3715 poundsReference
Front tire7-16Reference
Rear tire12.4-24Reference
Standard tires (ag)Front: 7-16. Rear: 12.4-24Reference
Length326 cmReference
Width151 cmReference
Height (ROPS)245 cmReference
Height (cab)208 cmReference
ROPS Weight1515 kgReference
Cab Weight1685 kgReference
Ground clearance32 cmReference
Front tread111 cmReference
Rear tread109 to 139 cmReference
Electrical
GroundnegativeReference
Battery CCA630Reference
Battery volts12Reference
Battery AH68Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
