Tractor · 2008Unverified

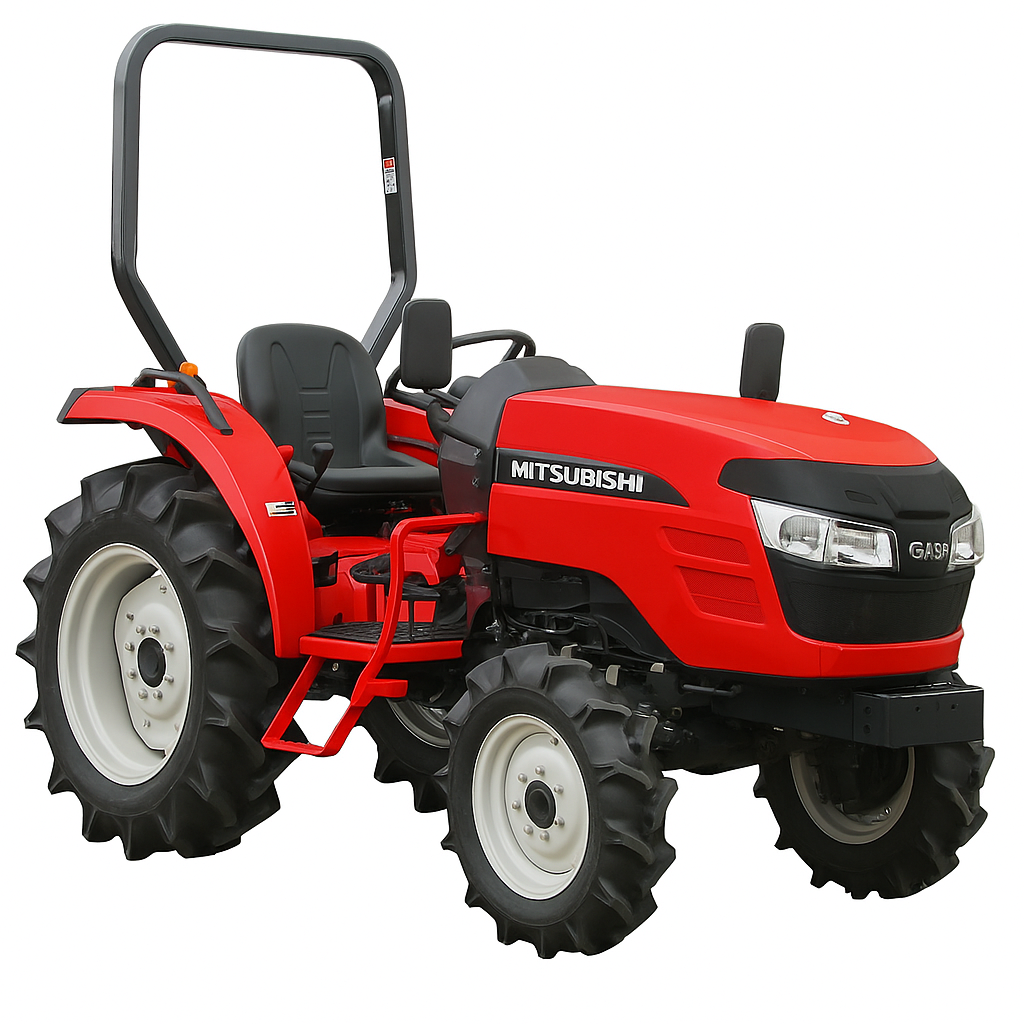

Mitsubishi GA32
Mitsubishi GA32 — GA Series · 33 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
33 hp
Weight
3373 to 3748 pounds
Hover a source tag to verify
Overview
ManufacturerMitsubishiReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS. Cab optional.Reference
Variants
GA32wheeled tractorReference
GAK32half-trackReference
Engine
Iseki 1.6L 3-cyl dieselReference
Fuel tank37.9 LReference
Engine24.3 kWReference
Iseki E3CGReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.6 LReference
Bore/Stroke87 x 92 mmReference
Power24.3 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
24-speedReference
32-speedReference
Gears24 forward and reverseReference
Clutchwet discReference
Gears32 forward and reverseReference
PTO & Hydraulics
Rear TypeIReference
Controlposition controlReference
Rear lift1788 kgReference
Rear PTO Type588/776/987/1258 (1.375)Reference
Dimensions
Wheelbase169 cmReference
Weight3373 to 3748 poundsReference
Front tire8-16Reference
Rear tire12.4-26Reference
Standard tires (ag)Front: 8-16. Rear: 12.4-26Reference
Length326 cmReference
Width151 cmReference
Height (ROPS)247 cmReference
Height (cab)211 cmReference
ROPS Weight1529 kgReference
Cab Weight1700 kgReference
Ground clearance35 cmReference
Front tread111 cmReference
Rear tread109 to 139 cmReference
Electrical
GroundnegativeReference
Battery CCA630Reference
Battery volts12Reference
Battery AH68Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
