Tractor · 2008Unverified

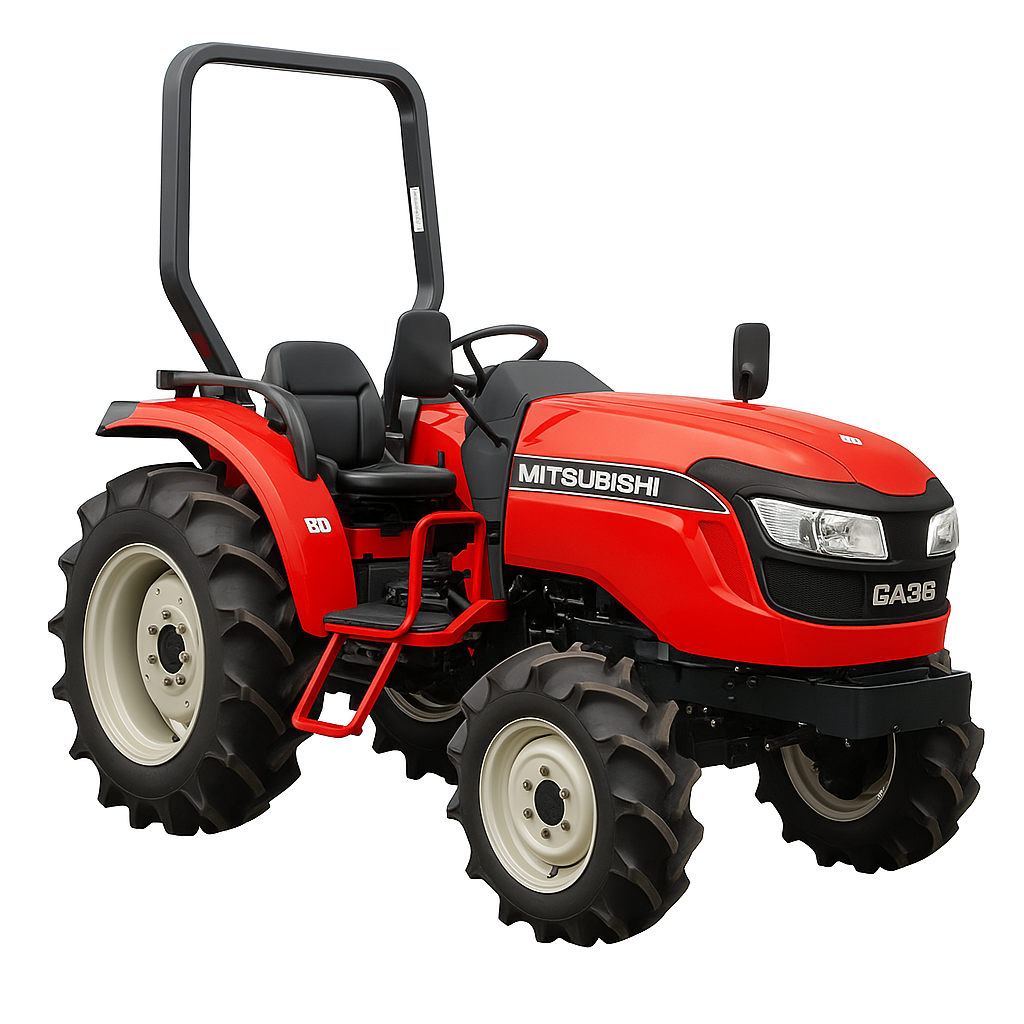

Mitsubishi GA36
Mitsubishi GA36 — GA Series · 36 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
36 hp
Weight
3373 to 3748 pounds
Hover a source tag to verify
Overview
ManufacturerMitsubishiReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS. Cab optional.Reference
Variants
GA36wheeled tractorReference
GAK36half-trackReference
Engine
Iseki 1.6L 3-cyl dieselReference
Fuel tank37.9 LReference
Engine26.9 kWReference
Iseki E3CGReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.6 LReference
Bore/Stroke87 x 92 mmReference
Power26.9 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
24-speedReference
32-speedReference
Gears24 forward and reverseReference
Clutchwet discReference
Gears32 forward and reverseReference
PTO & Hydraulics
Rear TypeIReference
Controlposition controlReference
Rear lift1788 kgReference
Rear PTO Type588/776/987/1258 (1.375)Reference
Dimensions
Wheelbase172 cmReference
Weight3373 to 3748 poundsReference
Front tire8-16Reference
Rear tire13.6-24Reference
Standard tires (ag)Front: 8-16. Rear: 13.6-24Reference
Length326 cmReference
Width151 cmReference
Height (ROPS)247 cmReference
Height (cab)211 cmReference
ROPS Weight1529 kgReference
Cab Weight1700 kgReference
Ground clearance35 cmReference
Front tread111 cmReference
Rear tread110 to 140 cmReference
Electrical
GroundnegativeReference
Battery CCA630Reference
Battery volts12Reference
Battery AH68Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
