Tractor · 2016Unverified

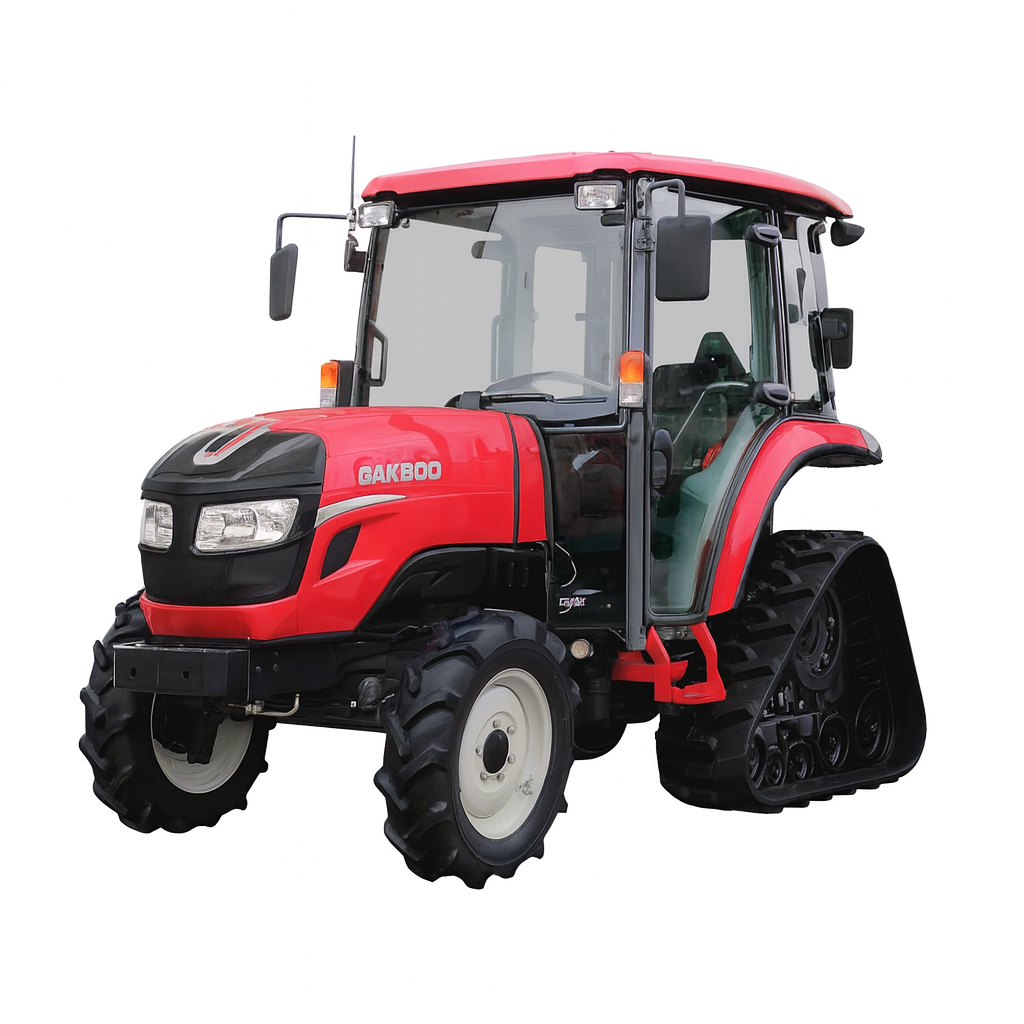

Mitsubishi GAK500
Mitsubishi GAK500 — GA Series · 50 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
50 hp
Weight
5148 to 5600 pounds
Hover a source tag to verify
Overview
ManufacturerMitsubishiReference
Half-track Crawler tractorReference
Drivehalf-trackReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS. Cab optional.Reference
Variants
GA500wheeled tractorReference
GAK500half-trackReference
Engine
Shibaura 2.2L 4-cyl dieselReference
Fuel tank46.9 LReference
Engine36.9 kWReference
Shibaura N4LDI-TReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke84 x 100 mmReference
Power36.9 kWReference
Fuel systemdirect injectionReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
32-speedReference
Gears32 forward and reverseReference
Clutchwet discReference
PTO & Hydraulics
Rear TypeIReference
Controlposition controlReference
Rear lift1914 kgReference
Rear PTO Type4-speed (1.375)Reference
Dimensions
Wheelbase197 cmReference
Weight5148 to 5600 poundsReference
Front tire8.3-20Reference
Rear tiretracksReference
Ag front8.3-20Reference
Ag rear400mm tracksReference
Length354 cmReference
Width168 cmReference
Height (ROPS)254 cmReference
Height (cab)235 cmReference
ROPS Weight2335 kgReference
Cab Weight2540 kgReference
Ground clearance38 cmReference
Front tread124 cmReference
Rear tread128 cmReference
Electrical
GroundnegativeReference
Battery CCA750Reference
Battery volts12Reference
Battery AH85Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
