Tractor · 2016Unverified

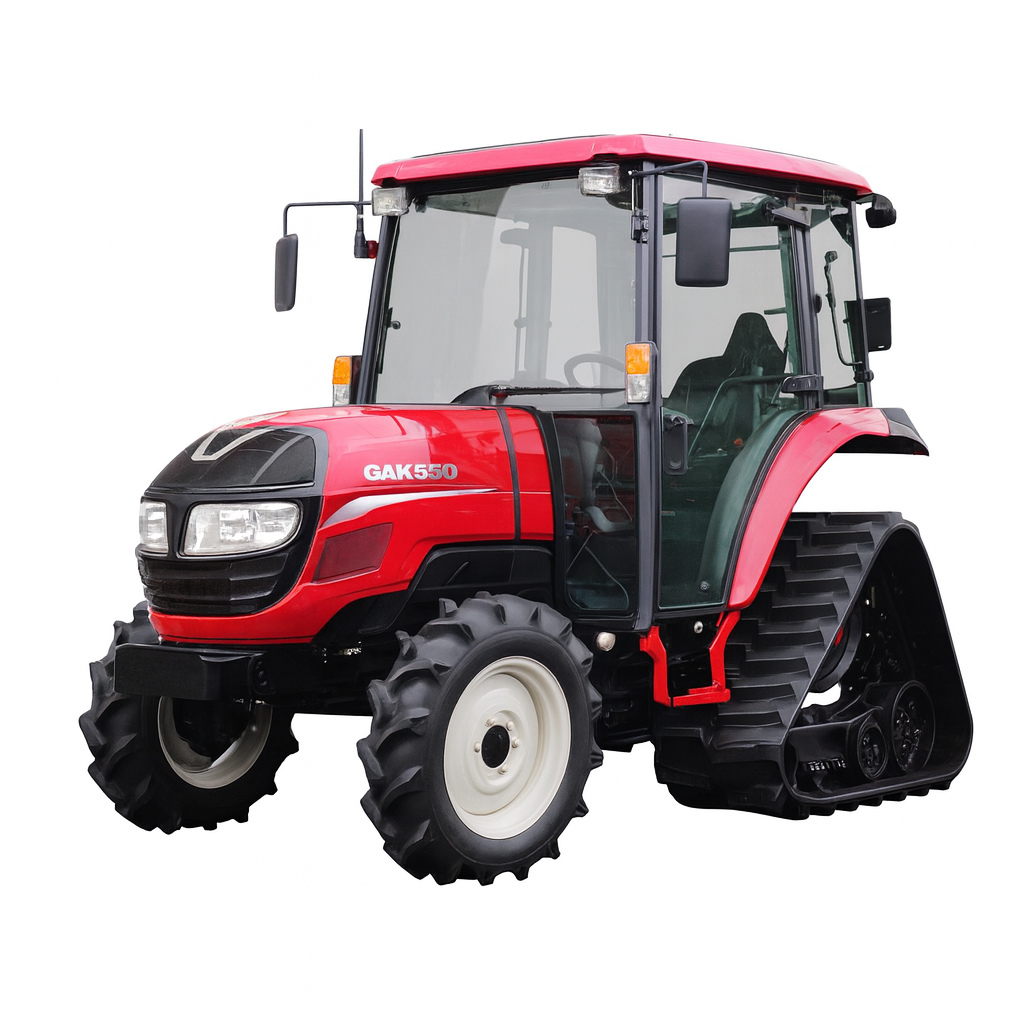

Mitsubishi GAK550
Mitsubishi GAK550 — GA Series · 54 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
54 hp
Weight
2545 kg
Hover a source tag to verify
Overview
ManufacturerMitsubishiReference
Half-track Crawler tractorReference
Drivehalf-trackReference
Power steeringReference
Wet disc brakesReference
Cab standard.Reference
Variants
GA550wheeled tractorReference
GAK550half-trackReference
Engine
Shibaura 2.2L 4-cyl dieselReference
Fuel tank46.9 LReference
Engine40.6 kWReference
Shibaura N4LDI-TAReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke84 x 100 mmReference
Power40.6 kWReference
Fuel systemdirect injectionReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
32-speedReference
Gears32 forward and reverseReference
Clutchwet discReference
PTO & Hydraulics
Rear TypeIReference
Controlposition controlReference
Rear lift1914 kgReference
Rear PTO Type4-speed (1.375)Reference
Dimensions
Wheelbase197 cmReference
Weight2545 kgReference
Front tire8.3-20Reference
Rear tiretracksReference
Ag front8.3-20Reference
Ag rear400mm tracksReference
Length354 cmReference
Width168 cmReference
Height (cab)235 cmReference
Ground clearance38 cmReference
Front tread124 cmReference
Rear tread128 cmReference
Electrical
GroundnegativeReference
Battery CCA750Reference
Battery volts12Reference
Battery AH85Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
