Tractor · 2006Unverified

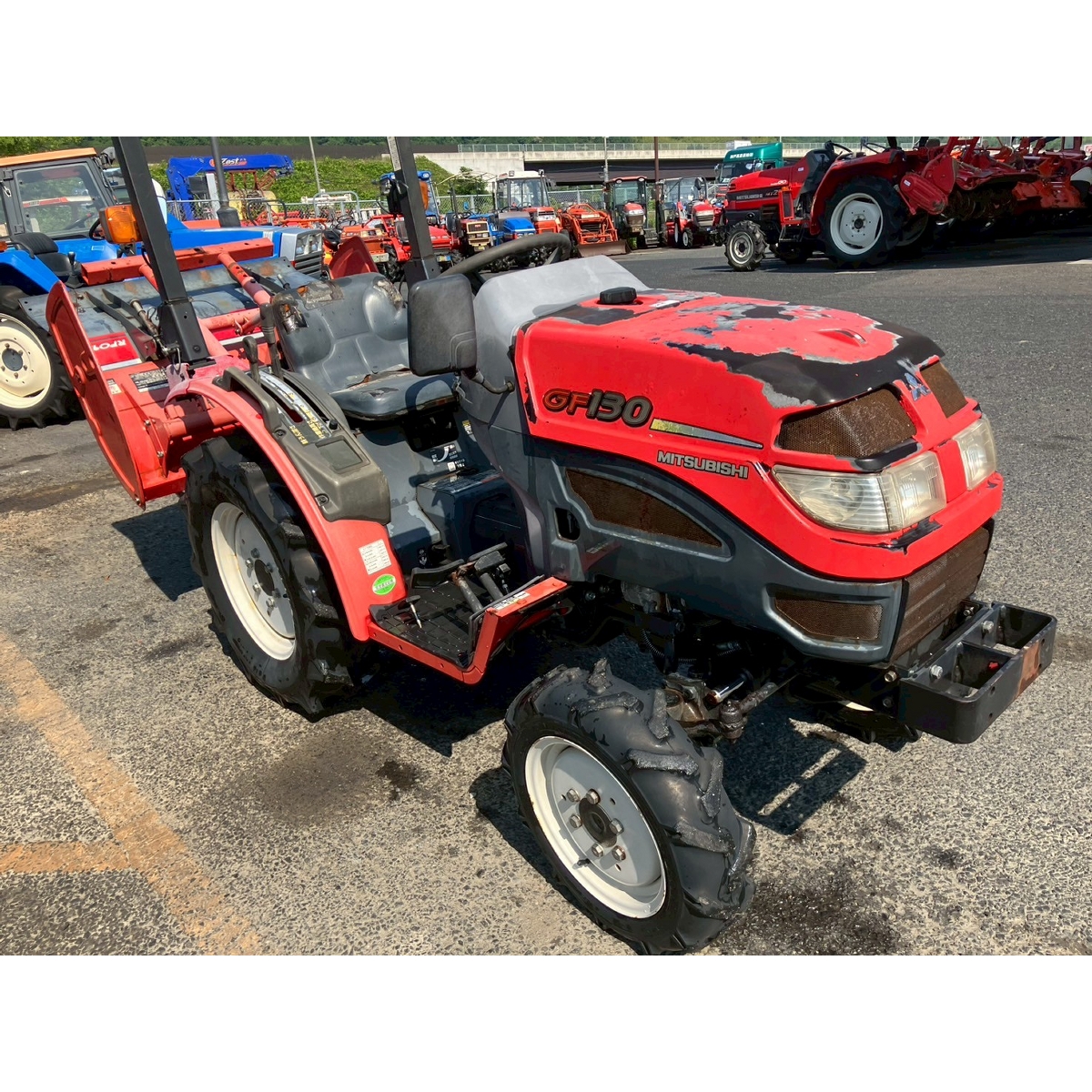

Mitsubishi GF130
Mitsubishi GF130 — GF Series · 13 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
13 hp
Weight
586 kg
Hover a source tag to verify
Overview
ManufacturerMitsubishiReference
Sub-Compact Utility tractorReference
Four-wheel driveReference
Two-post ROPS.Reference
Engine
Mitsubishi 1.0L 3-cyl dieselReference
Fuel tank12.9 LReference
Engine9.6 kWReference
Mitsubishi L3EReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Bore/Stroke76 x 70 mmReference
Power9.6 kWReference
StarterelectricReference
Starter volts12Reference
Transmission
9-speedReference
Gears9 forward and 3 reverseReference
PTO & Hydraulics
Rear Type0Reference
Rear PTO Type540 (1.375)Reference
Engine RPM2500@568Reference
Engine RPM2500@758Reference
Engine RPM2500@1210Reference
Engine RPM2500@-806Reference
Dimensions
Wheelbase124 cmReference
Weight586 kgReference
Front tire5-12Reference
130 Rear tire8-16Reference
130 Standard tires (ag)Front: 5-12. Rear: 8-16Reference
130S Standard tires (ag)Front: 4.00-8. Rear: 6.00-12Reference
Length212 cmReference
Width94 cmReference
Height173 cmReference
130 Front tread76 cmReference
130S to inches 86 to 0 cm Front tread33.9Reference
130 Rear tread74 to 89 cmReference
130S Rear tread81 to 88 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
