Tractor · 2004Unverified

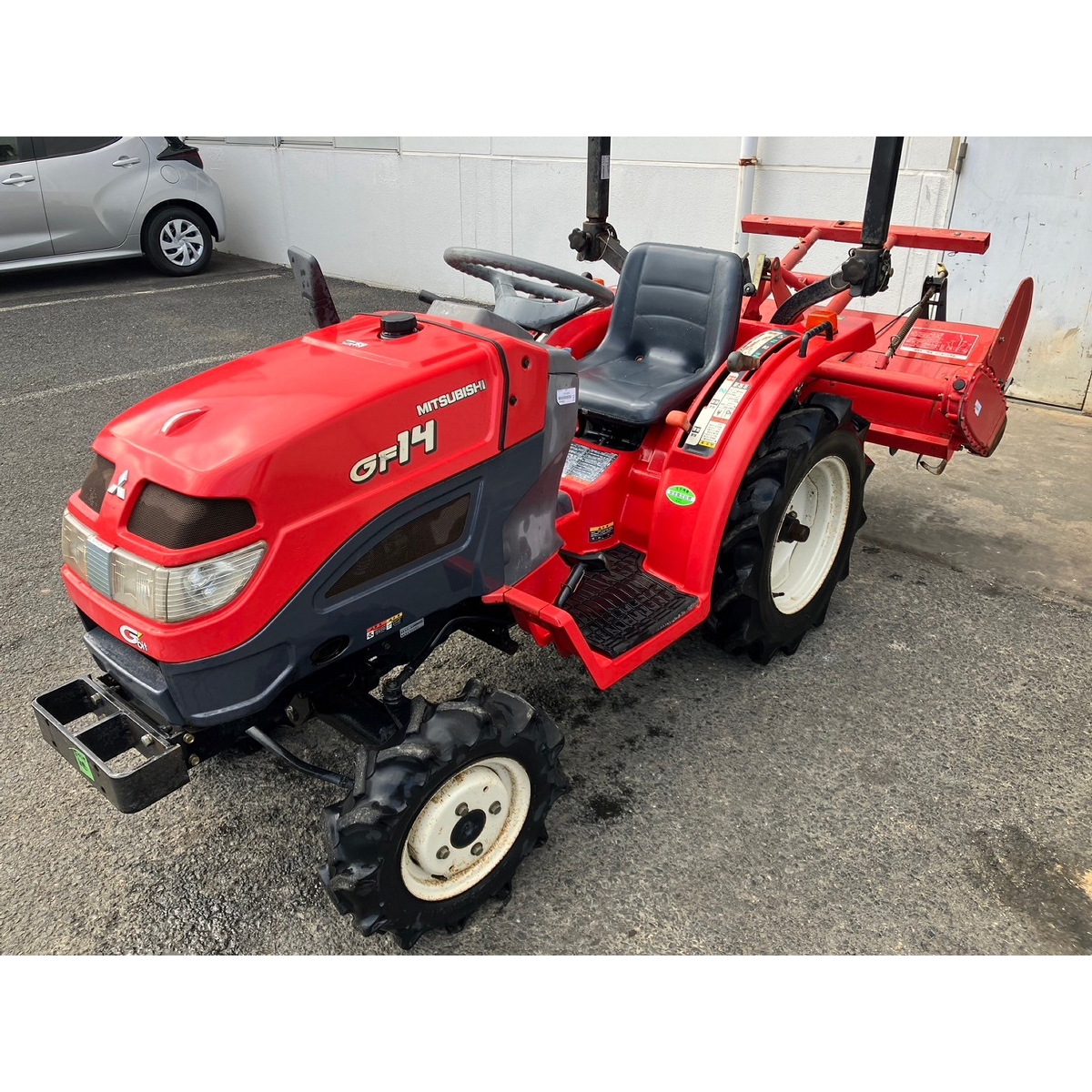

Mitsubishi GF14
Mitsubishi GF14 — GF Series · 13 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
13 hp
Weight
1124 to 1168 pounds
Hover a source tag to verify
Overview
ManufacturerMitsubishiReference
Sub-Compact Utility tractorReference
Four-wheel driveReference
Open operator stationReference
Engine
Mitsubishi 0.8L 3-cyl dieselReference
Fuel tank12.9 LReference
Engine9.9 kWReference
Mitsubishi L3CReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement0.8 LReference
Power9.9 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 3 reverseReference
PTO & Hydraulics
Rear Type0Reference
Rear lift499 kgReference
Rear PTO Type540 (1.375)Reference
Engine RPM526@2500Reference
Engine RPM762@2500Reference
Engine RPM1201@2500Reference
Engine RPM-673@2500Reference
Dimensions
Wheelbase124 cmReference
Weight1124 to 1168 poundsReference
Front tire4.00-8Reference
GF14S Rear tire6.00-12Reference
GF14S Standard tires (ag)Front: 4.00-8. Rear: 6.00-12Reference
GF14 Standard tires (ag)Front: 4.50-10. Rear: 7-16Reference
Length215 cmReference
GF14S Width100 cmReference
GF14 Width93 cmReference
GF14S Height167 cmReference
GF14 Height172 cmReference
GF14S Weight509 kgReference
GF14 Weight529 kgReference
GF14S Ground clearance19 cmReference
GF14 Ground clearance25 cmReference
GF14S Front tread85 cmReference
GF14 Front tread74 cmReference
GF14S Rear tread78/84 cmReference
G14 Rear tread72/76/82/87 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
