Tractor · 2004Unverified

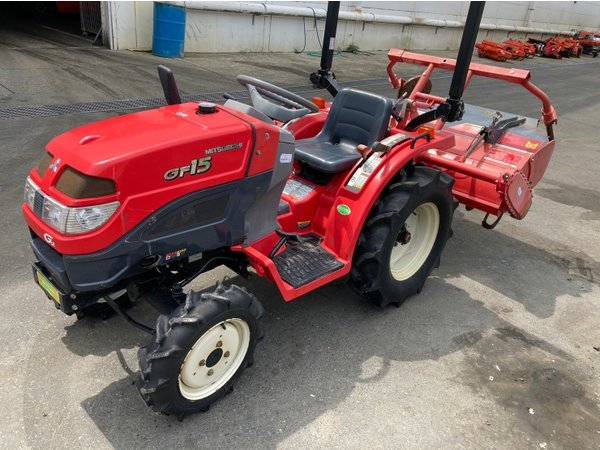

Mitsubishi GF15
Mitsubishi GF15 — GF Series · 14 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
14 hp
Weight
539 kg
Hover a source tag to verify
Overview
ManufacturerMitsubishiReference
Sub-Compact Utility tractorReference
Four-wheel driveReference
Open operator stationReference
Engine
Mitsubishi 0.8L 3-cyl dieselReference
Fuel tank12.9 LReference
Engine10.7 kWReference
Mitsubishi L3CReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement0.8 LReference
Power10.7 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 3 reverseReference
PTO & Hydraulics
Rear Type0Reference
Rear lift499 kgReference
Rear PTO Type540 (1.375)Reference
Engine RPM547@2600Reference
Engine RPM792@2600Reference
Engine RPM1249@2600Reference
Engine RPM-699@2600Reference
Dimensions
Wheelbase124 cmReference
Weight539 kgReference
Front tire5-12Reference
Rear tire8-16Reference
Standard tires (ag)Front: 5-12. Rear: 8-16Reference
Length218 cmReference
Width100 cmReference
Height175 cmReference
Ground clearance28 cmReference
Front tread836 to 74 cmReference
Rear tread72/76/82/87 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
