Tractor · 2006Unverified

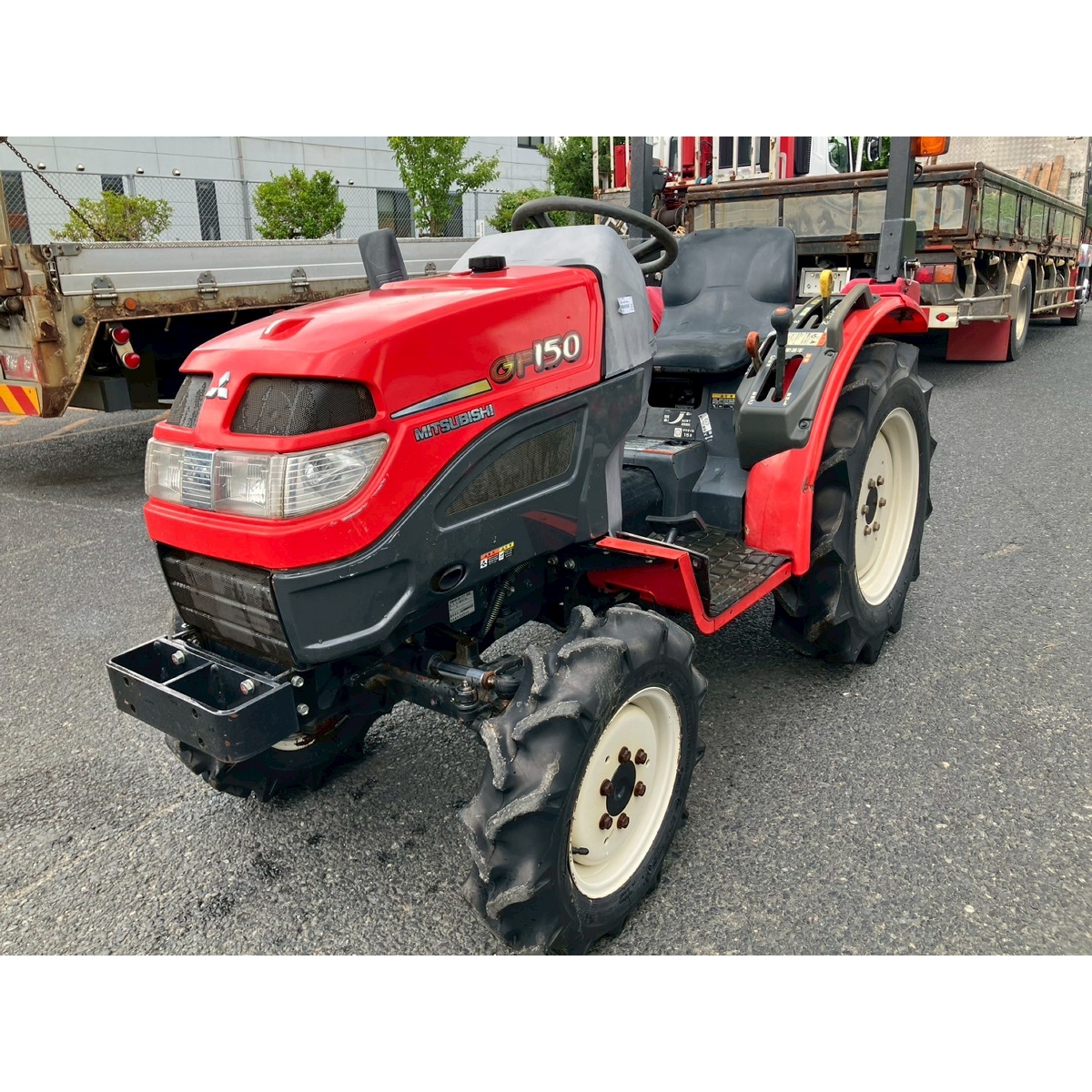

Mitsubishi GF150
Mitsubishi GF150 — GF Series · 15 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
15 hp
Weight
620 kg
Hover a source tag to verify
Overview
ManufacturerMitsubishiReference
Sub-Compact Utility tractorReference
Four-wheel driveReference
Two-post ROPS.Reference
Engine
Mitsubishi 1.0L 3-cyl dieselReference
Fuel tank12.9 LReference
Engine11.0 kWReference
Mitsubishi L3EReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Bore/Stroke76 x 70 mmReference
Power11.0 kWReference
StarterelectricReference
Starter volts12Reference
Transmission
9-speedReference
Gears9 forward and 3 reverseReference
PTO & Hydraulics
Rear Type0Reference
Rear PTO Type540 (1.375)Reference
Engine RPM2500@568Reference
Engine RPM2500@758Reference
Engine RPM2500@1210Reference
Engine RPM2500@-806Reference
Dimensions
Wheelbase124 cmReference
Weight620 kgReference
Front tire5.00-12Reference
150 Rear tire8-18Reference
150 Standard tires (ag)Front: 5.00-12. Rear: 8-18Reference
150S Standard tires (ag)Front: 4.00-8. Rear: 6.00-12Reference
Length214 cmReference
Width94 cmReference
Height177 cmReference
150 Front tread76 cmReference
150S to inches 86 to 0 cm Front tread33.9Reference
150 Rear tread74 to 90 cmReference
150S Rear tread81 to 88 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
