Tractor · 2004Unverified

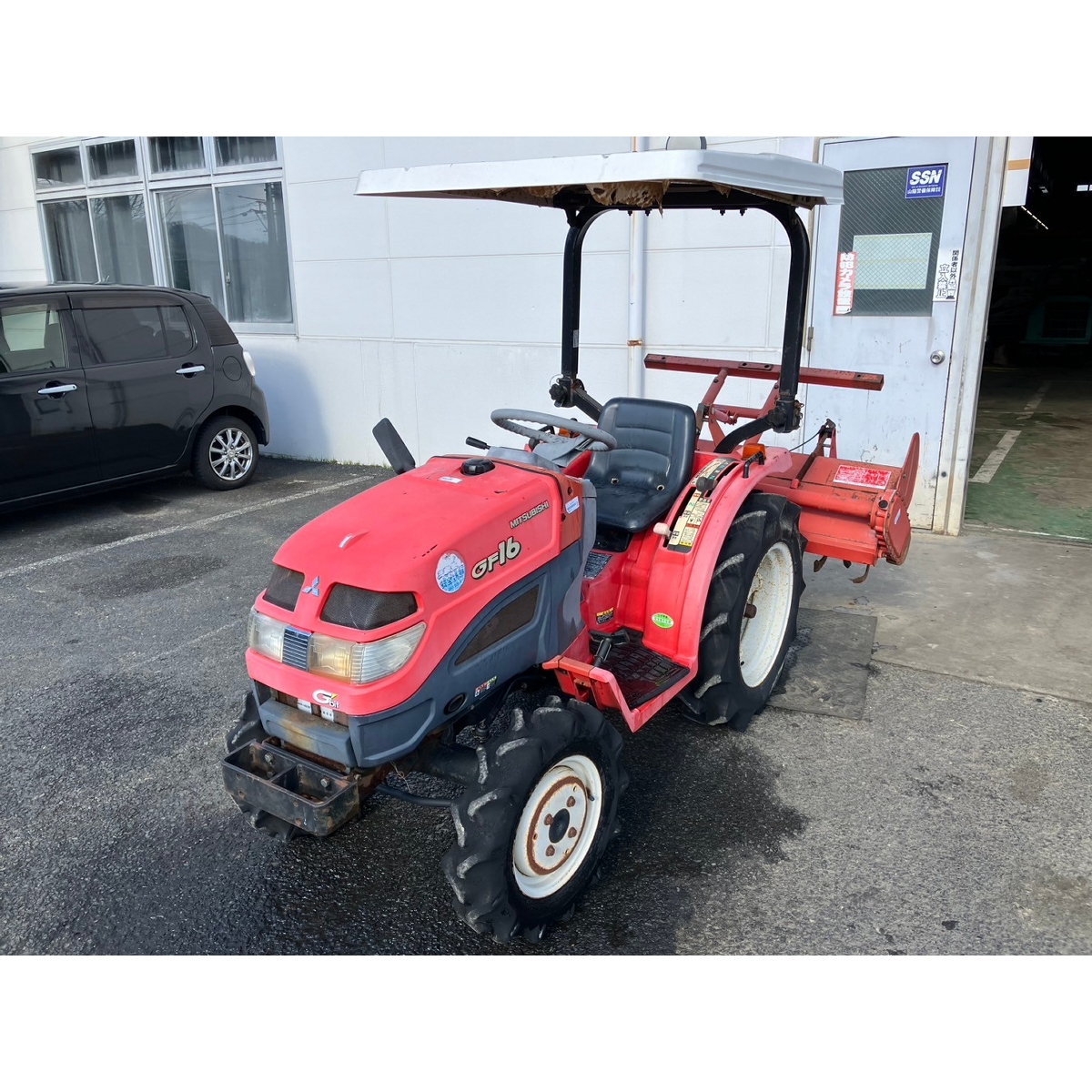

Mitsubishi GF16
Mitsubishi GF16 — GF Series · 15 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
15 hp
Weight
560 kg
Hover a source tag to verify
Overview
ManufacturerMitsubishiReference
Sub-Compact Utility tractorReference
Four-wheel driveReference
Open operator stationReference
Engine
Mitsubishi 1.0L 3-cyl dieselReference
Fuel tank12.9 LReference
Engine11.4 kWReference
Mitsubishi L3EReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Bore/Stroke76 x 70 mmReference
Power11.4 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 3 reverseReference
PTO & Hydraulics
Rear Type0Reference
Rear lift499 kgReference
Rear PTO Type540 (1.375)Reference
Engine RPM526@2500Reference
Engine RPM762@2500Reference
Engine RPM1201@2500Reference
Engine RPM-673@2500Reference
Dimensions
Wheelbase124 cmReference
Weight560 kgReference
Front tire5.00-12Reference
Rear tire8-18Reference
Standard tires (ag)Front: 5.00-12. Rear: 8-18Reference
Length220 cmReference
Width99 cmReference
Height178 cmReference
Ground clearance29 cmReference
Front tread74 cmReference
Rear tread74/80/85/89 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
