Tractor · 2006Unverified

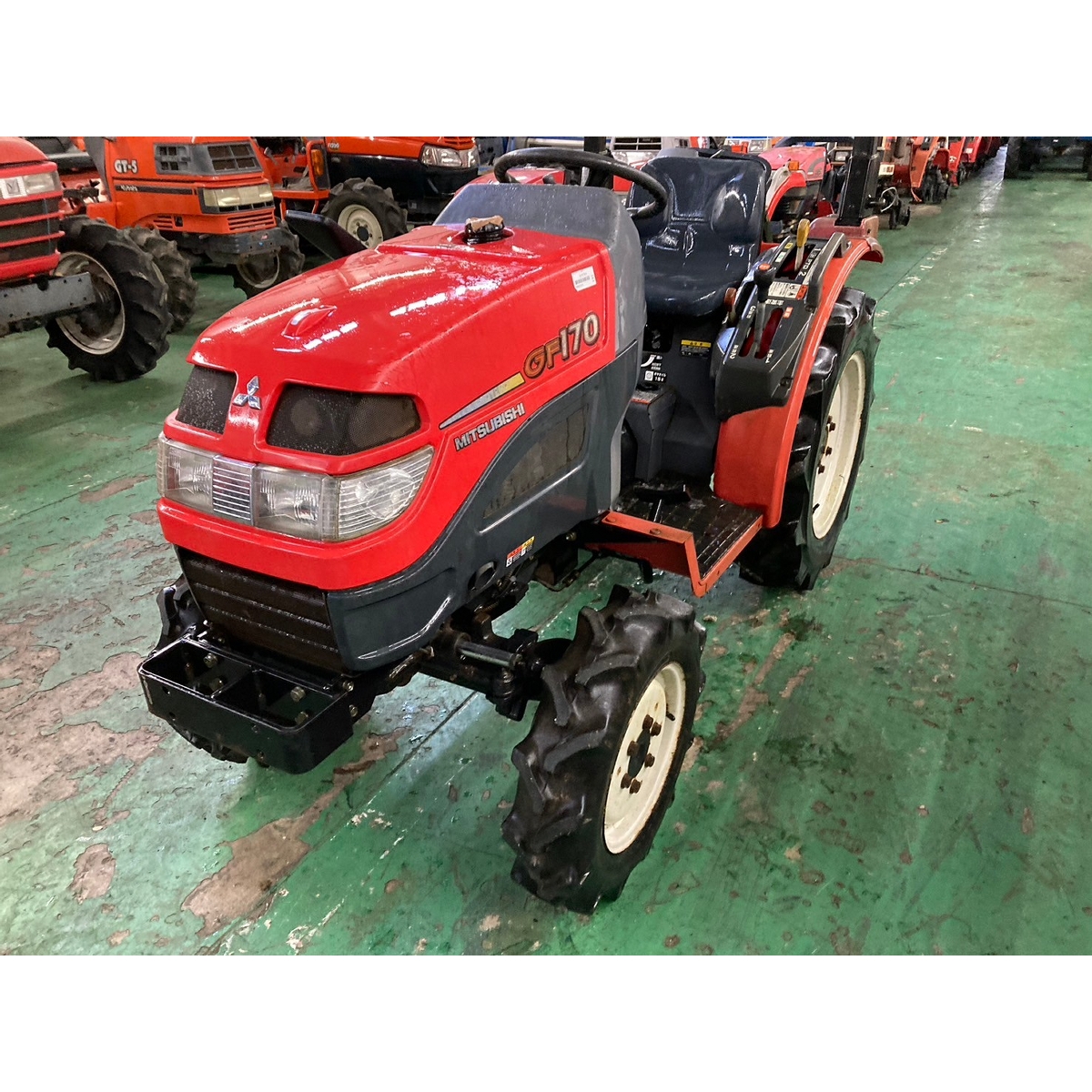

Mitsubishi GF170
Mitsubishi GF170 — GF Series · 17 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
17 hp
Weight
620 kg
Hover a source tag to verify
Overview
ManufacturerMitsubishiReference
Sub-Compact Utility tractorReference
Four-wheel driveReference
Two-post ROPS.Reference
Engine
Mitsubishi 1.0L 3-cyl dieselReference
Fuel tank12.9 LReference
Engine12.5 kWReference
Mitsubishi L3EReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Bore/Stroke76 x 70 mmReference
Power12.5 kWReference
StarterelectricReference
Starter volts12Reference
Transmission
9-speedReference
Gears9 forward and 3 reverseReference
PTO & Hydraulics
Rear Type0Reference
Rear PTO Type540 (1.375)Reference
Engine RPM2500@591Reference
Engine RPM2500@788Reference
Engine RPM2500@1258Reference
Engine RPM2500@-839Reference
Dimensions
Wheelbase124 cmReference
Weight620 kgReference
Front tire5.00-12Reference
Rear tire8-18Reference
Standard tires (ag)Front: 5.00-12. Rear: 8-18Reference
Length214 cmReference
Width94 cmReference
Height177 cmReference
Front tread76 cmReference
Rear tread74 to 90 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
