Tractor · 2016Unverified

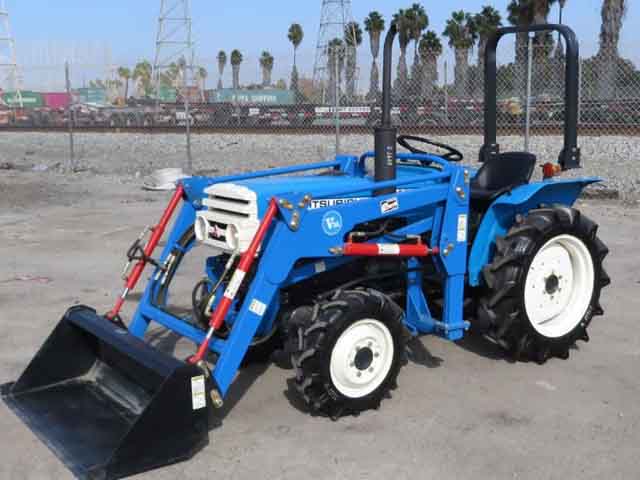

Mitsubishi GM450

Name: Mitsubishi GM450
Brand: Mitsubishi

Mitsubishi GM450 — GM Series · 46 hp. Reference specifications; pending source verification.

The Mitsubishi GM450 is a tractor with a rated power of 46 hp, situated at the lighter end of its class. It was manufactured in 2016. The tractor is equipped with a 4-cylinder turbocharged diesel liquid-cooled engine, paired with a 16-speed gearbox and four-wheel drive. Its operating weight ranges from 4233 to 4553 pounds.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

46 hp

Weight

4233 to 4553 pounds

Catalogue coverage

Variants represented

Richest spec table

47 rows

Recorded power

46 hp

Recorded weight

1920 kg

Transmissions

16-speed syncromesh

Production years

2016-2016

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerMitsubishiReference

Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Two-post ROPS. Cab optional.Reference

Engine

Shibaura 2.2L 4-cyl dieselReference

Fuel tank54.9 LReference

Engine34.0 kWReference

Shibaura N4LDI-TReference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.2 LReference

Bore/Stroke84 x 100 mmReference

Power34.0 kWReference

Fuel systemdirect injectionReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Transmission

16-speed syncromeshReference

TypesyncromeshReference

Gears16 forward and reverseReference

Clutchdry discReference

Four gears (1-4) in four ranges (creeper, low, medium, and high) with shuttle shift.Reference

PTO & Hydraulics

Rear TypeIReference

Controlposition controlReference

Rear lift1901 kgReference

Rear PTO Type573/819/1328 (1.375)Reference

Dimensions

Wheelbase189 cmReference

Weight4233 to 4553 poundsReference

Front tire8-18Reference

Rear tire13.6-28Reference

Standard tires (ag)Front: 8-18. Rear: 13.6-28Reference

Length353 cmReference

Width155 cmReference

Height (ROPS)251 cmReference

Height (cab)231 cmReference

ROPS Weight1920 kgReference

Cab Weight2065 kgReference

Ground clearance36 cmReference

Front tread121 cmReference

Rear tread121 to 171 cmReference

Electrical

GroundnegativeReference

Battery CCA565Reference

Battery volts12Reference

Battery AH80Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
