Tractor · 2007Unverified

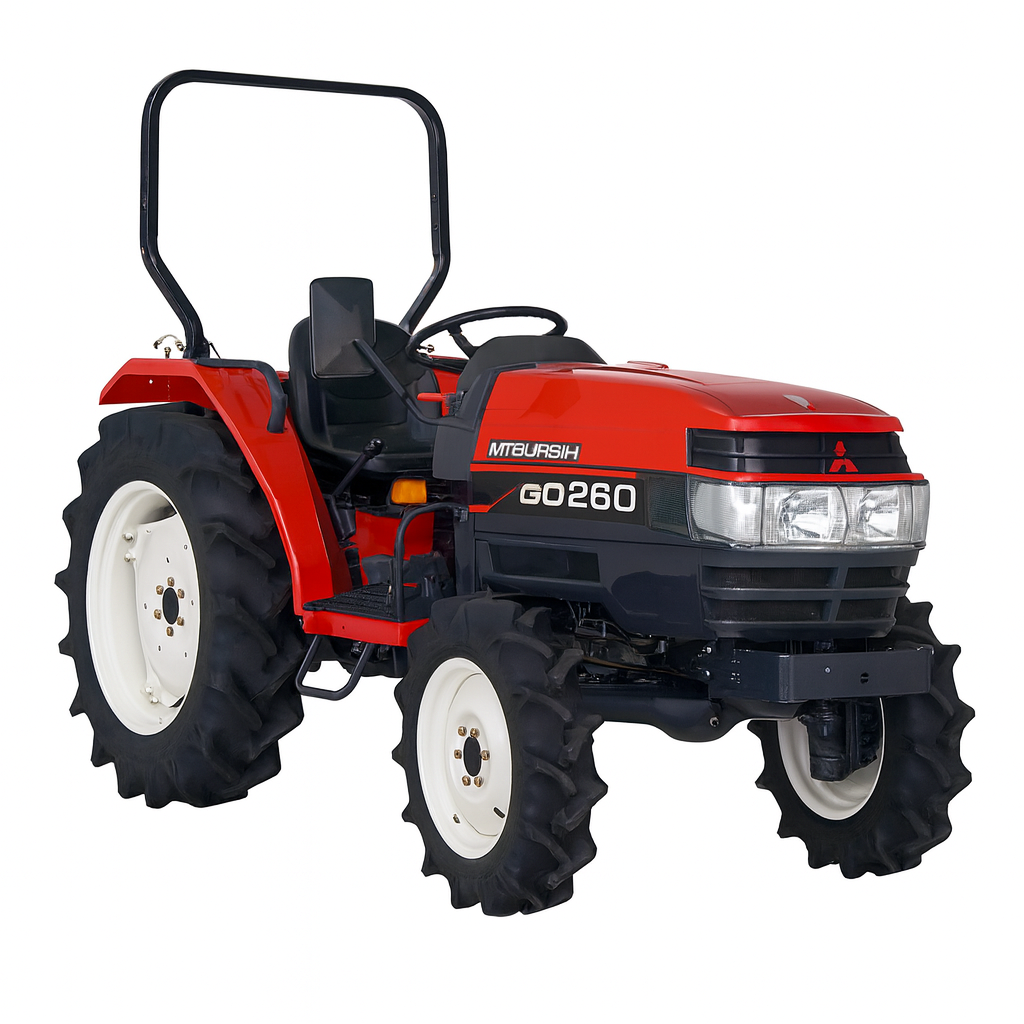

Mitsubishi GO260
Mitsubishi GO260 — GO Series · 26 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
26 hp
Weight
2822 to 3230 pounds
Hover a source tag to verify
Overview
ManufacturerMitsubishiReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS. Cab optional.Reference
Engine
Mitsubishi 1.8L 4-cyl dieselReference
Fuel tank32.2 LReference
Engine19.1 kWReference
Mitsubishi S4L2Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.8 LReference
Bore/Stroke78 x 92 mmReference
Power19.1 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speedReference
Gears16 forward and reverseReference
Four gears in four ranges with left-hand shuttle shift.Reference
PTO & Hydraulics
Rear TypeJISIReference
Rear lift1799 kgReference
Rear PTO540 (1.375)Reference
Dimensions
Wheelbase162 cmReference
Weight2822 to 3230 poundsReference
Front tire7-14Reference
Rear tire11.2-24Reference
Standard tires (ag)Front: 7-14. Rear: 11.2-24Reference
Length313 cmReference
ROPS Width138 cmReference
Cab Width142 cmReference
Height (ROPS)194 cmReference
Height (cab)196 cmReference
ROPS Weight1280 kgReference
Cab Weight1465 kgReference
Ground clearance31 cmReference
Front tread106 cmReference
Rear tread104 to 113 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
