Tractor · 2007Unverified

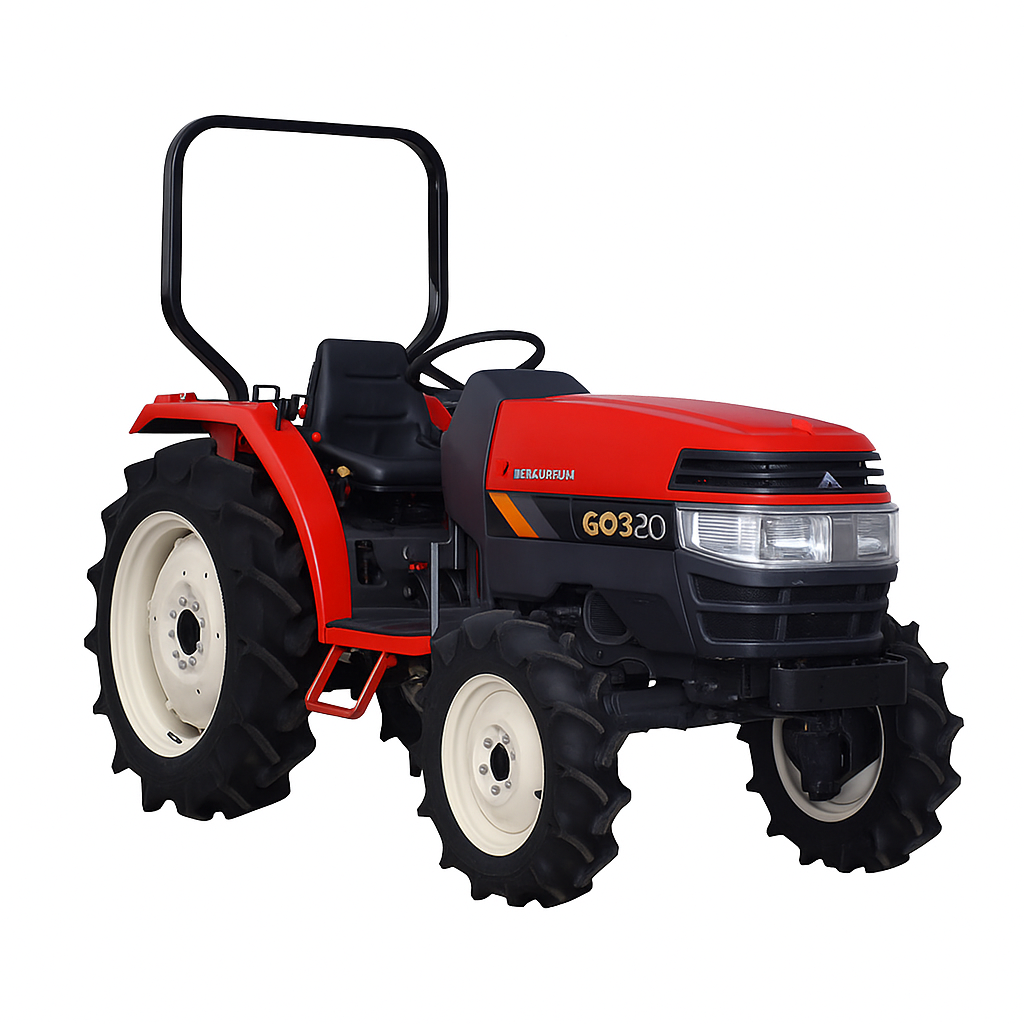

Mitsubishi GO320
Mitsubishi GO320 — GO Series · 32 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
32 hp
Weight
3009 to 3417 pounds
Hover a source tag to verify
Overview
ManufacturerMitsubishiReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS. Cab optional.Reference
Engine
Mitsubishi 1.8L 4-cyl dieselReference
Fuel tank32.2 LReference
Engine23.5 kWReference
Mitsubishi S4L2Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.8 LReference
Bore/Stroke78 x 92 mmReference
Power23.5 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speedReference
Gears16 forward and reverseReference
Four gears in four ranges with left-hand shuttle shift.Reference
PTO & Hydraulics
Rear TypeJISIReference
Rear lift1799 kgReference
Rear PTO540 (1.375)Reference
Dimensions
Wheelbase177 cmReference
Weight3009 to 3417 poundsReference
Front tire8-16Reference
Rear tire12.4-26Reference
Standard tires (ag)Front: 8-16. Rear: 12.4-26Reference
Length313 cmReference
ROPS Width139 cmReference
Cab Width142 cmReference
Height (ROPS)199 cmReference
Height (cab)200 cmReference
ROPS Weight1364 kgReference
Cab Weight1549 kgReference
Ground clearance36 cmReference
Front tread111 cmReference
Rear tread109 to 139 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
