Tractor · 2006Unverified

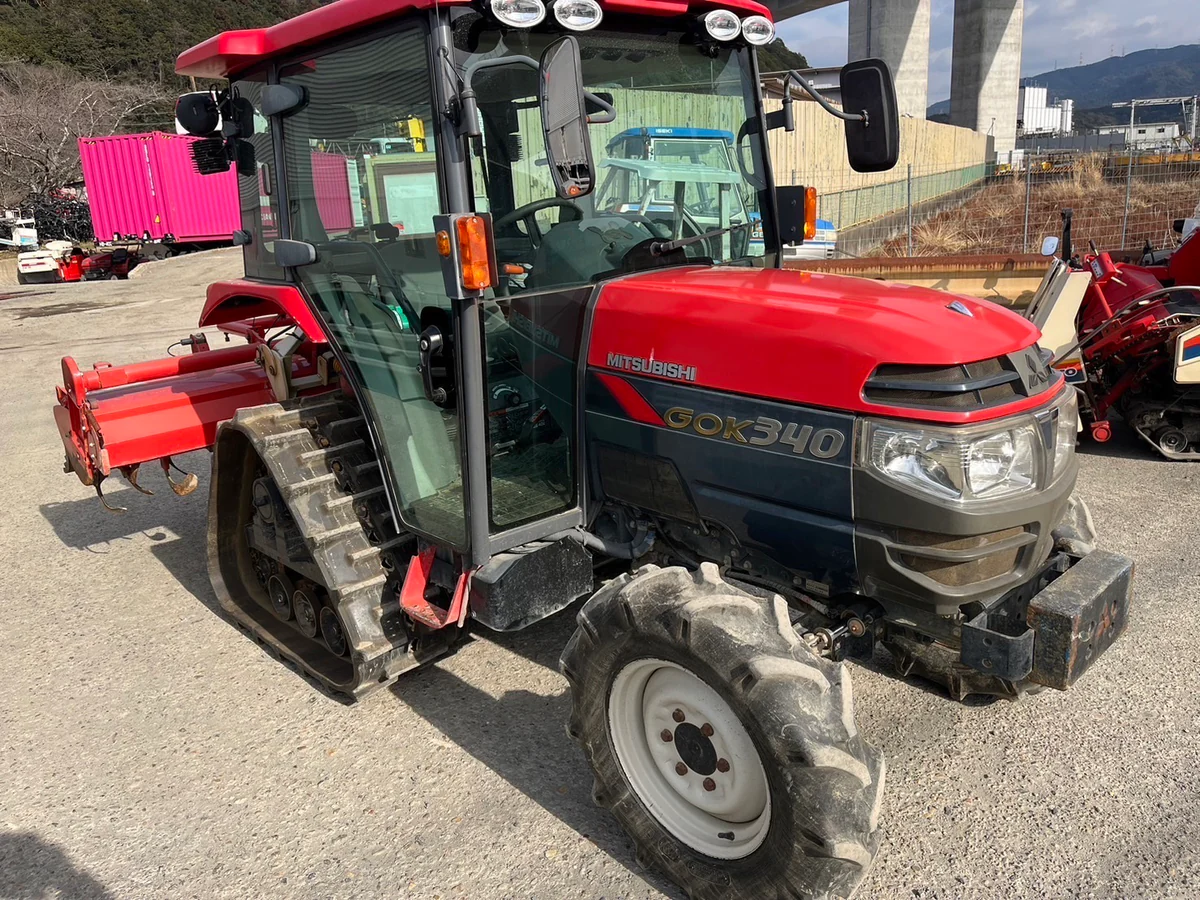

Mitsubishi GOK34
Mitsubishi GOK34 — GOK Series · 34 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
34 hp
Weight
1690 kg
Hover a source tag to verify
Overview
ManufacturerMitsubishiReference
Half-track Crawler tractorReference
Drivehalf-trackReference
Power steeringReference
Cab standard with air-conditioning.Reference
Variants
GO34wheeledReference
GOK34half-trackReference
Engine
Mitsubishi 1.5L 4-cyl dieselReference
Fuel tank28.0 LReference
Engine25.0 kWReference
Mitsubishi S4LReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke78 x 79 mmReference
Power25.0 kWReference
Rated RPM2800Reference
Starter volts12Reference
Transmission
16-speedReference
Gears16 forward and reverseReference
Clutchdry discReference
PTO & Hydraulics
Rear TypeJIS1Reference
Rear lift1799 kgReference
Rear PTO Type540 (1.375)Reference
Engine RPM573@2800Reference
Engine RPM793@2800Reference
Engine RPM1051@2800Reference
Engine RPM1292@2800Reference
Dimensions
Wheelbase177 cmReference
Weight1690 kgReference
Front tire7-14Reference
Rear tiretracksReference
Ag front7-14Reference
Ag rear400mm tracksReference
Length313 cmReference
Width157 cmReference
Height202 cmReference
Ground clearance34 cmReference
Front tread177 to 176 cmReference
Rear tread118 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
