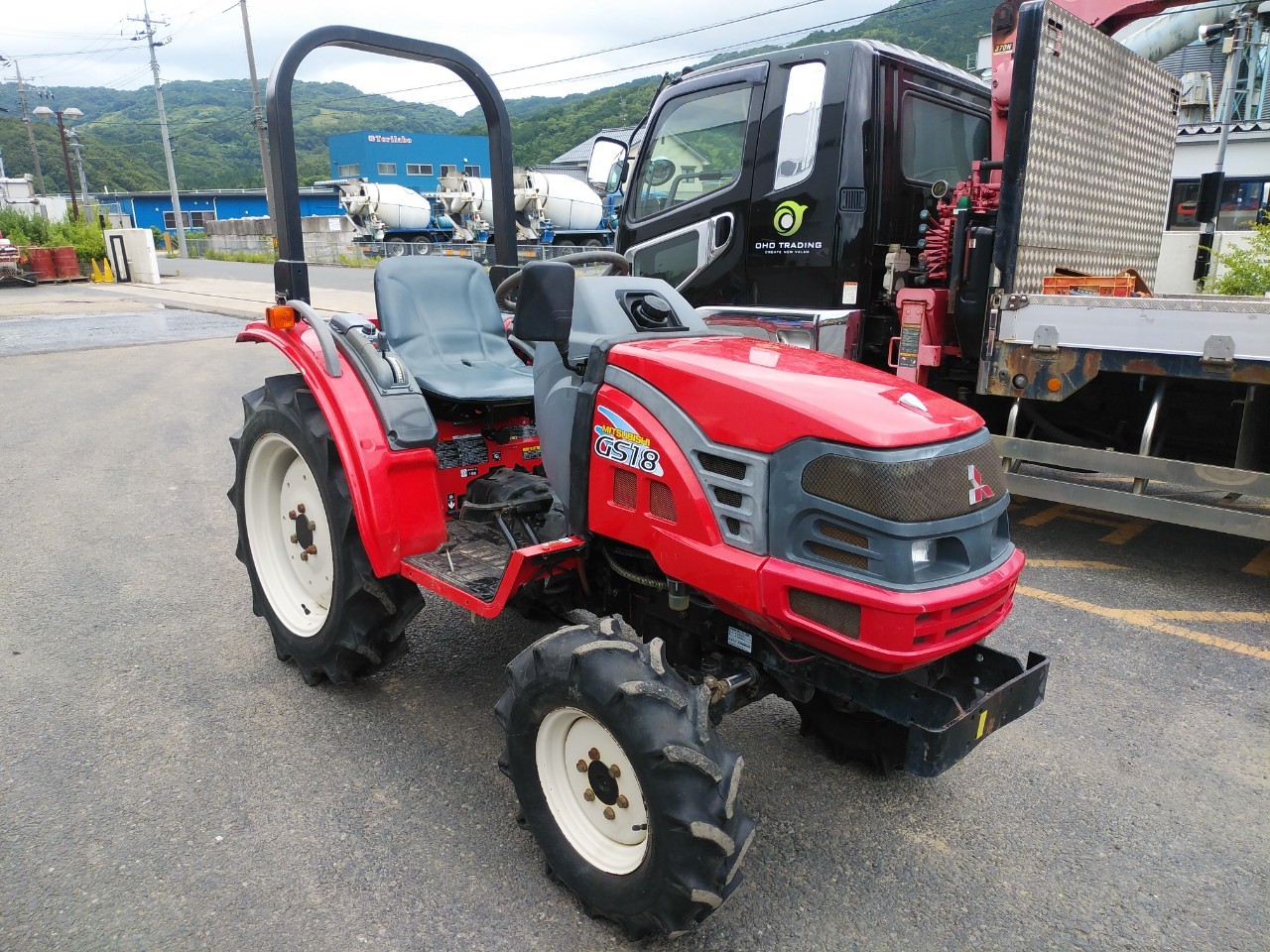

The Mitsubishi GS18 is a compact tractor model, rated at 18 hp, which was manufactured from 2003 to 2005. It features a 3-cylinder diesel liquid-cooled engine, transmitting power through a four-wheel drive system with an 8-speed gearbox. The listed weight of the Mitsubishi GS18 is 810 kg. It is designed for jobs requiring an area of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
18 hp
Weight
810 kg
Catalogue coverage
Variants represented
2
Richest spec table
41 rows
Recorded power
18 hp
Recorded weight
810 kg
Transmissions
8-speed
Production years
2003-2005
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerMitsubishiReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS.Reference
Engine
Mitsubishi 1.1L 3-cyl dieselReference
Fuel tank23.1 LReference
Engine13.2 kWReference
Mitsubishi S3LReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Bore/Stroke78 x 79 mmReference
Power13.2 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speedReference
Gears8 forward and reverseReference
Clutchdry discReference
PTO & Hydraulics
Rear TypeJIS0Reference
Rear PTO Type540 (1.375)Reference
Engine RPM566@2500Reference
Engine RPM816@2500Reference
Engine RPM1310@2500Reference
Engine RPM-952@2500Reference
Dimensions
Wheelbase137 cmReference
Weight810 kgReference
Front tire6.00-12Reference
Rear tire8.3-22Reference
Standard tires (ag)Front: 6.00-12. Rear: 8.3-22Reference
Length264 cmReference
Width110 cmReference
Height (ROPS)189 cmReference
Ground clearance33 cmReference
Front tread86 cmReference
Rear tread81/96 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
