Tractor · 2003Unverified

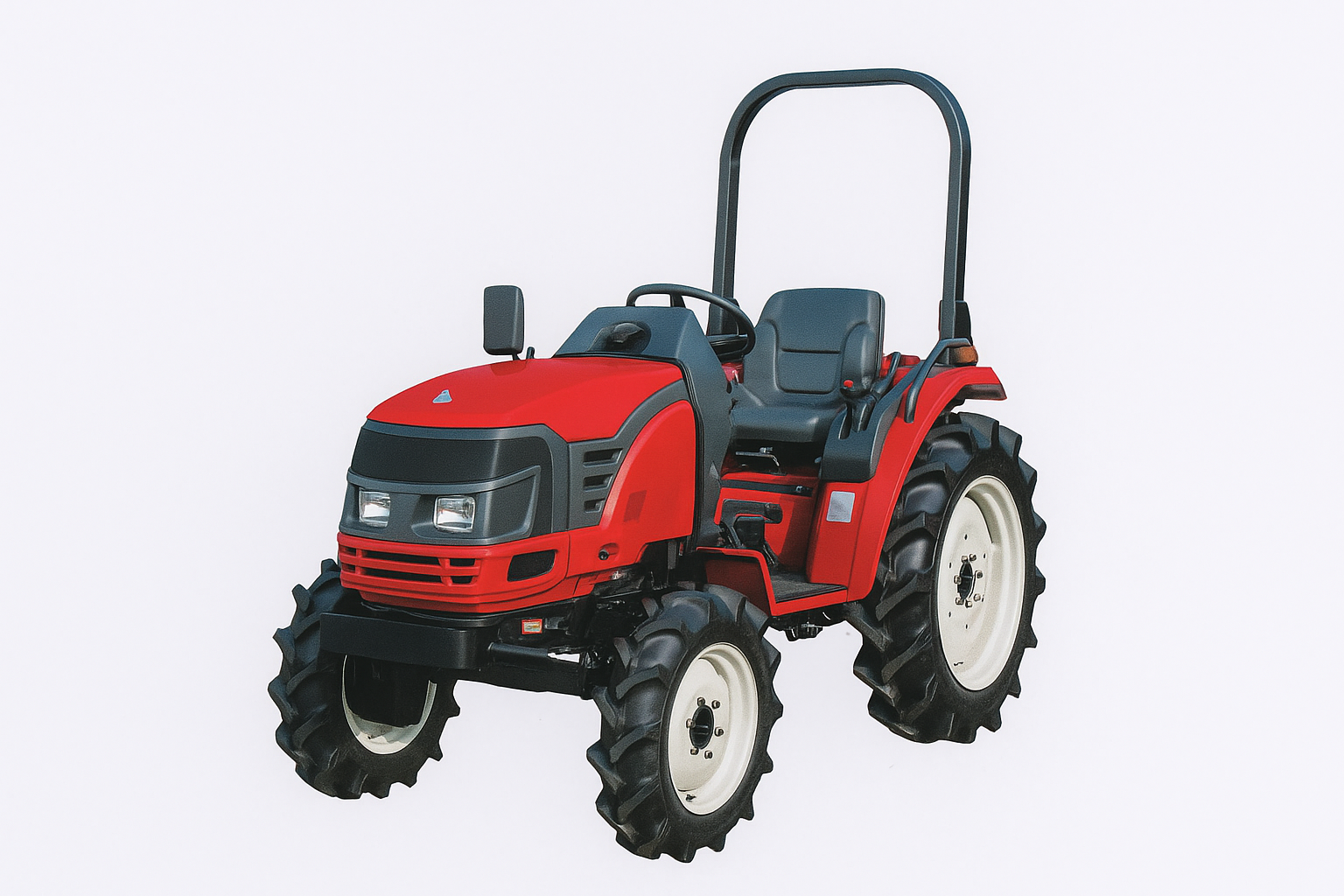

Mitsubishi GS20
Mitsubishi GS20 — GS Series · 20 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
20 hp
Weight
810 kg
Hover a source tag to verify
Overview
ManufacturerMitsubishiReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS.Reference
Engine
Mitsubishi 1.1L 3-cyl dieselReference
Fuel tank23.1 LReference
Engine14.7 kWReference
Mitsubishi S3LReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Bore/Stroke78 x 79 mmReference
Power14.7 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speedReference
Gears8 forward and reverseReference
Clutchdry discReference
PTO & Hydraulics
Rear TypeJIS0Reference
Rear PTO Type540 (1.375)Reference
Engine RPM566@2500Reference
Engine RPM816@2500Reference
Engine RPM1310@2500Reference
Engine RPM-952@2500Reference
Dimensions
Wheelbase137 cmReference
Weight810 kgReference
Front tire6.00-12Reference
Rear tire8.3-22Reference
Standard tires (ag)Front: 6.00-12. Rear: 8.3-22Reference
Length264 cmReference
Width110 cmReference
Height (ROPS)189 cmReference
Ground clearance33 cmReference
Front tread86 cmReference
Rear tread81/96 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
