Tractor · 2018Unverified

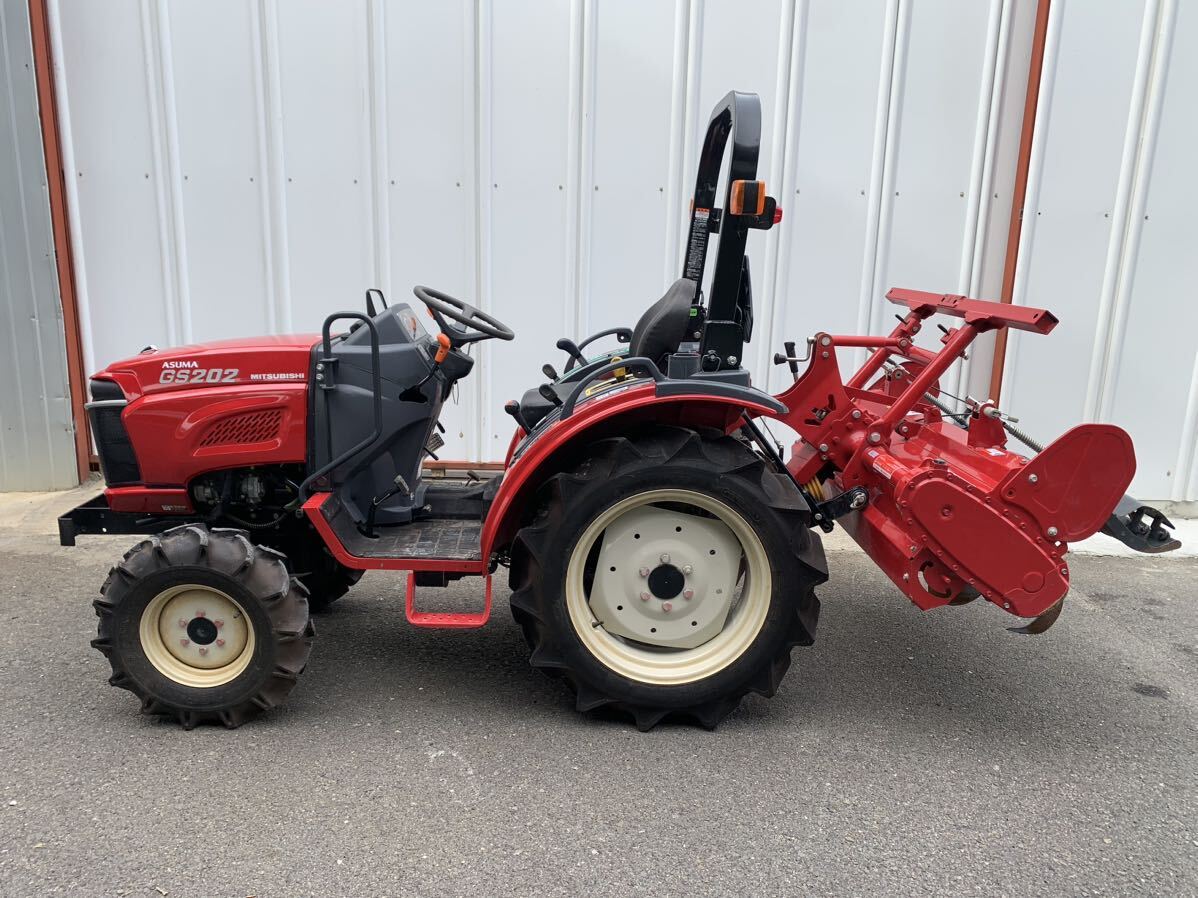

Mitsubishi GS202
Mitsubishi GS202 — GS Series · 20 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
20 hp
Weight
889 kg
Hover a source tag to verify
Overview
ManufacturerMitsubishiReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Two-post ROPS.Reference
Engine
Mitsubishi 1.1L 3-cyl dieselReference
Fuel tank23.1 LReference
Engine14.7 kWReference
Mitsubishi S3LReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Bore/Stroke78 x 79 mmReference
Power14.7 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed gearReference
30-speed partial power shiftReference
TypegearReference
Gears12 forward and reverseReference
Four gears in three ranges with shuttle.Reference
Typepartial power shiftReference
Gears30 forward and 15 reverseReference
Ten gears forward, five reverse, in three ranges.Reference
PTO & Hydraulics
Rear TypeJIS0Reference
Rear PTO Type540 (1.375)Reference
Engine RPM566@2500Reference
Engine RPM816@2500Reference
Engine RPM1310@2500Reference
Engine RPM-952@2500Reference
Dimensions
Wheelbase137 cmReference
Weight889 kgReference
Front tire6.00-12Reference
Rear tire8.3-22Reference
Standard tires (ag)Front: 6.00-12. Rear: 8.3-22Reference
Length264 cmReference
Width109 cmReference
Height (ROPS)189 cmReference
Ground clearance33 cmReference
Front tread86 cmReference
Rear tread81/96 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
