Tractor · 2003Unverified

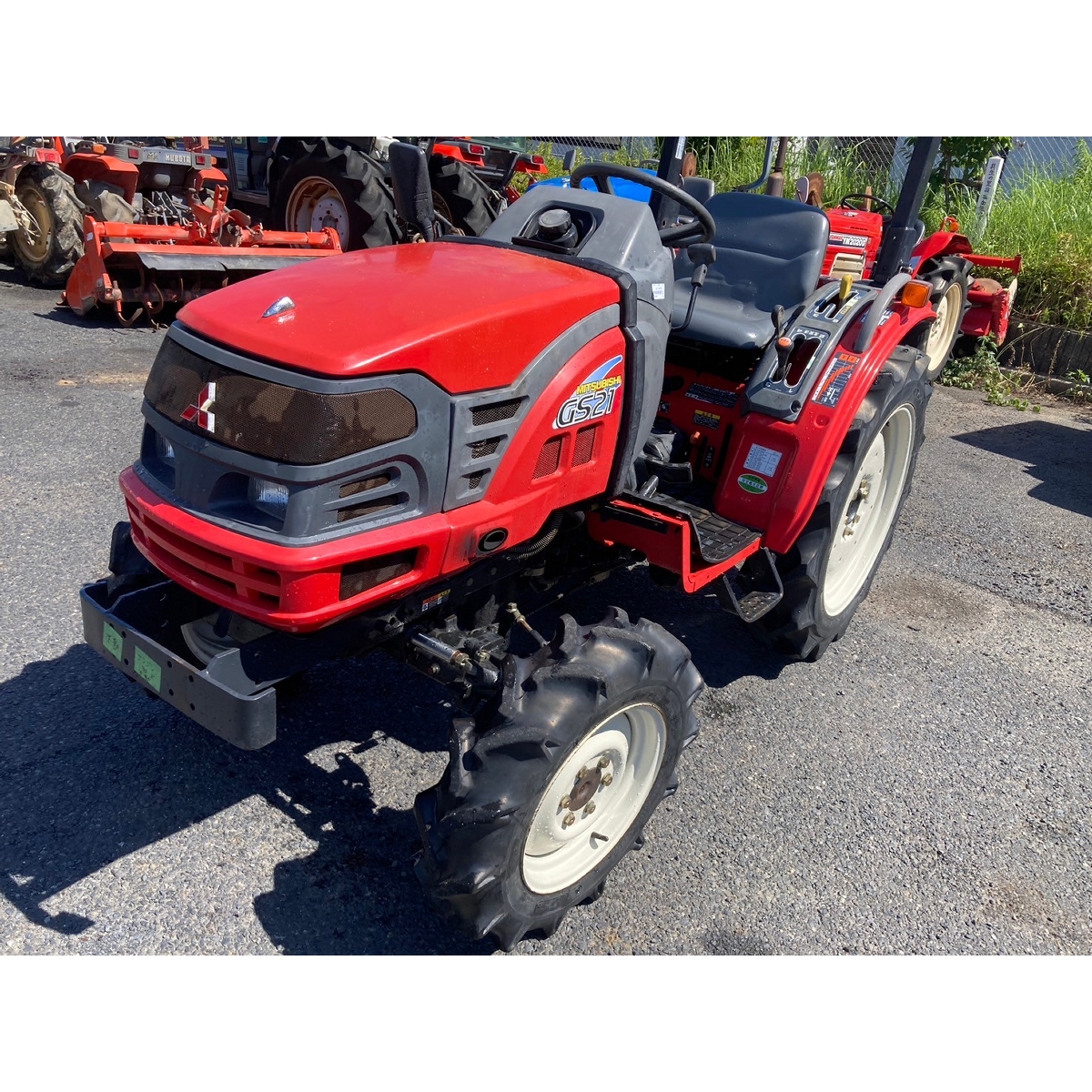

Mitsubishi GS21
Mitsubishi GS21 — GS Series · 21 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
21 hp
Weight
1896 to 2337 pounds
Hover a source tag to verify
Overview
ManufacturerMitsubishiReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS. Cab optional.Reference
Variants
GS21XCabReference
Engine
Mitsubishi 1.3L 3-cyl dieselReference
Fuel tank23.1 LReference
Engine15.4 kWReference
Mitsubishi S3L2Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Bore/Stroke78 x 92 mmReference
Power15.4 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speedReference
Gears8 forward and reverseReference
Clutchdry discReference
PTO & Hydraulics
Rear TypeJIS0Reference
Rear PTO Type540 (1.375)Reference
Engine RPM589@2500Reference
Engine RPM849@2500Reference
Engine RPM1362@2500Reference
Engine RPM-990@2500Reference
Dimensions
Wheelbase145 cmReference
Weight1896 to 2337 poundsReference
Front tire6-14Reference
Rear tire8.3-24Reference
Standard tires (ag)Front: 6-14. Rear: 8.3-24Reference
Length271 cmReference
Width110 cmReference
Height (ROPS)192 cmReference
ROPS Weight860 kgReference
Cab Weight1060 kgReference
Ground clearance36 cmReference
Front tread92 cmReference
Rear tread88/103 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
